Description
Key Technical Specifications
- Nominal Input Power: 220 VAC, 50/60 Hz
- Max Input Capacity: 1250 VA
- Mounting Format: Standard MicroTMR rack slot assembly

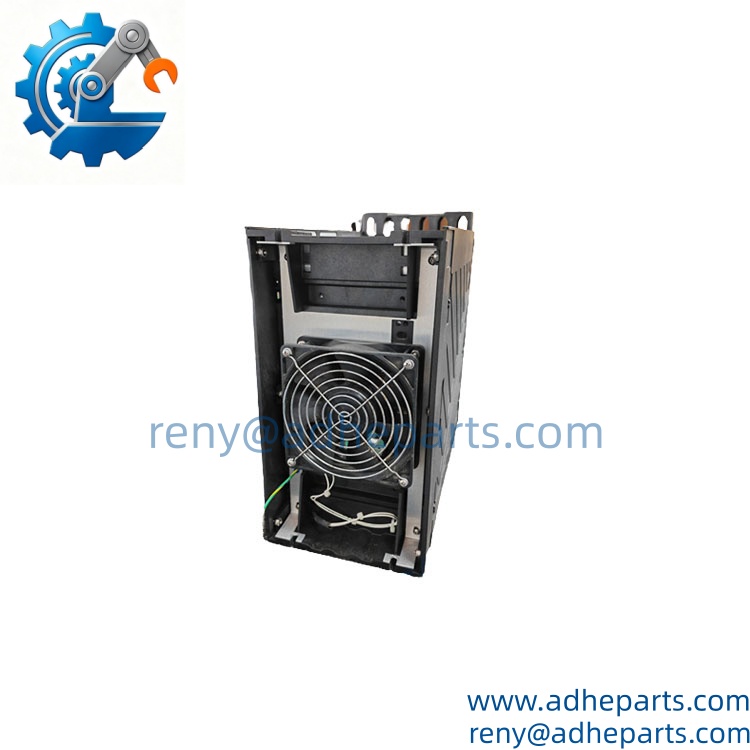

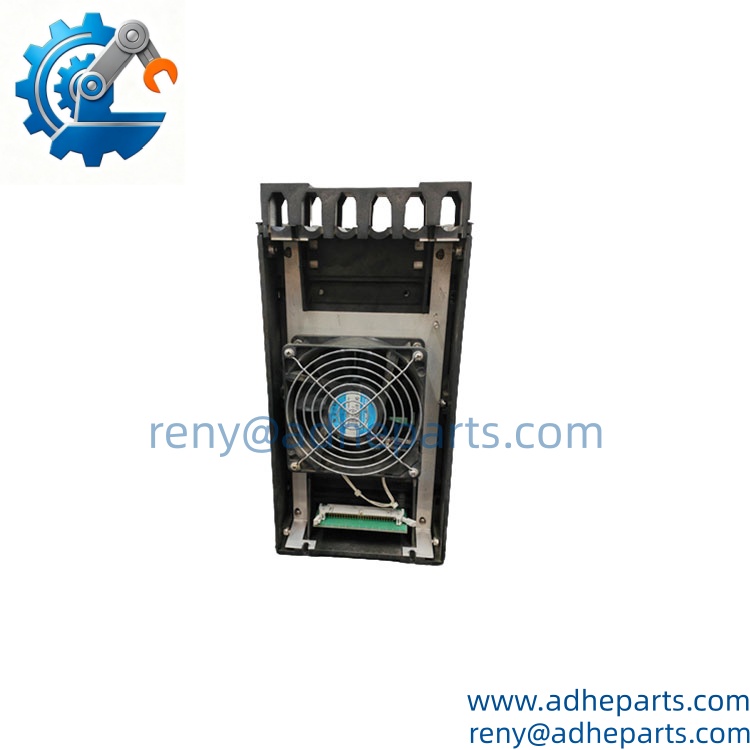

- Cooling: Integrated redundant axial fan assembly
- Protection: Onboard circuit breaker and fault cutoff function
- Operating Temperature Range: 0 °C to 60 °C
- Humidity Rating: 5% to 90% non-condensing
- Backplane Interface: Proprietary MicroTMR rack connector
- Physical Form: Single chassis-wide power unit
- Enclosure Rating: Industrial open-frame assembly for cabinet installation
Product Introduction

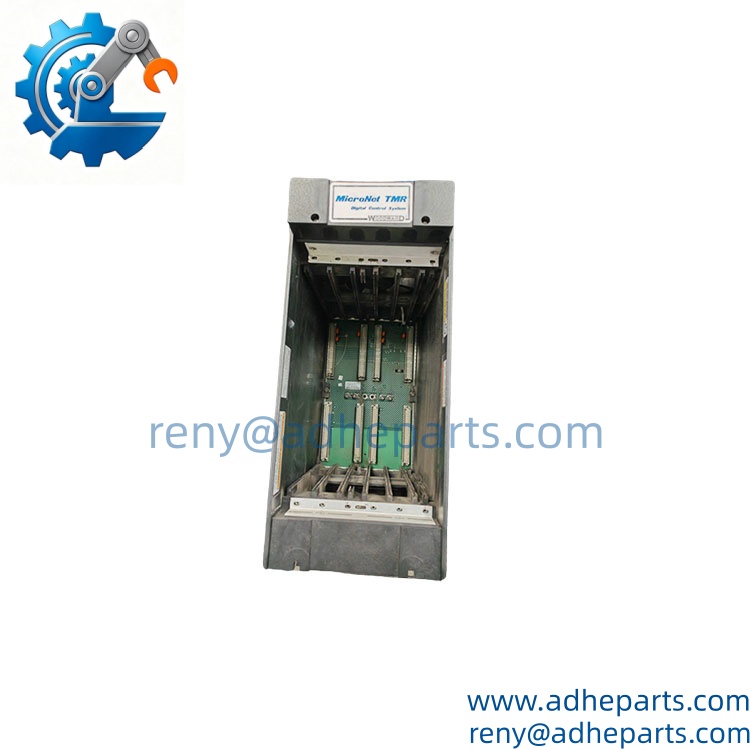

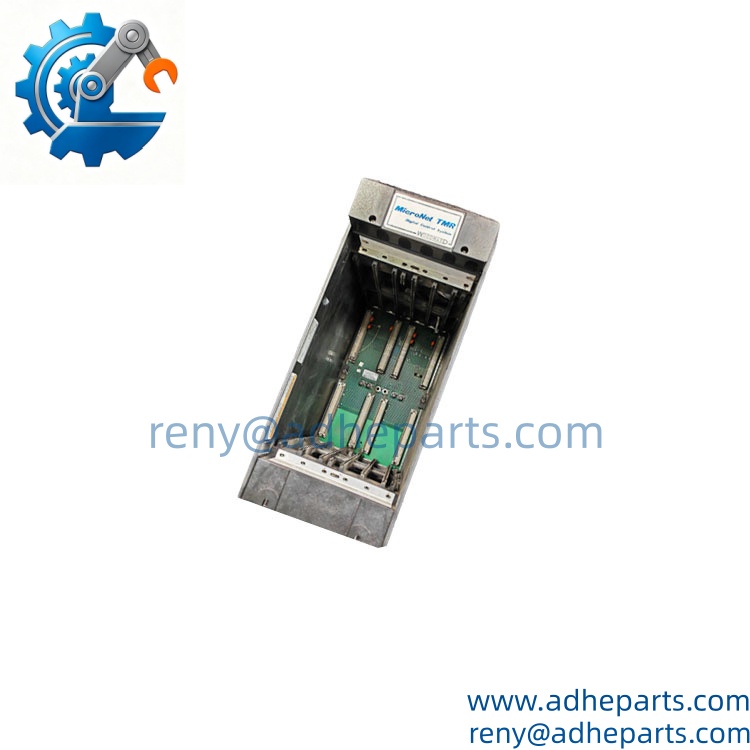

Operating as the backbone of the MicroTMR platform, the Woodward 5453-277 supplies stable power delivery and forced cooling to all resident control cards inside the rack. Fan degradation inside this unit triggers gradual thermal drift that can corrupt CPU memory before visible alarms activate. Honestly, scheduling proactive swap-outs avoids unplanned trips to offline turbine assemblies.
QC, Procurement & Logistics SOP

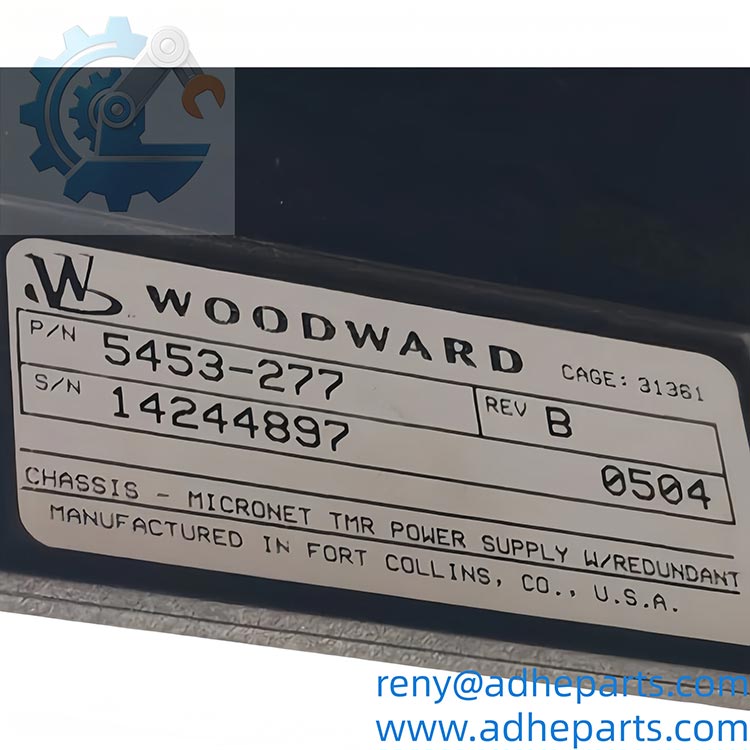

- Inbound Verification: Inspect original Woodward labeling, cross-reference serial identifiers for origin tracing, and check housing integrity for dents or prior disassembly marks.
- Live Rig Testing: Complete power-on cycling, verify fan rotational speed stability, and confirm consistent voltage output across the simulated rack backplane.
- QA & Anti-Static Packaging: Seal the unit inside static shielding material, line shipping containers with shock-absorbent foam, and label cartons for sensitive industrial control hardware.
- Global Logistics & Export Compliance: Assign accurate HS classification for turbine control power assemblies. Packages are reinforced for air or sea transit, with all supporting documentation prepared to streamline customs processing — though customs clearance in the EU might add 2 days.
Technical Pitfalls & Integration Warnings
- Firmware Rev Mismatch: Older MicroTMR rack firmware versions do not fully communicate diagnostic data from newer production batches of the 5453-277. One gas turbine site installed the module without updating system software, losing fan fault alerts for three weeks.
- Connector Pin Alignment Errors: Forced seating of the backplane connector bends internal pins. A field technician once rushed installation and created intermittent power drops that mimicked controller hardware failure.
- Ventilation Clearance Oversights: Installing the module with blocked cabinet airflow accelerates fan wear. Restricted intake space cuts expected service life of the internal fan by nearly half.
- ESD destruction during unboxing: Removing the unit from shielding packaging without proper wrist grounding risks damaging onboard regulation circuitry. Static damage often presents only under sustained thermal load.
Frequently Asked Questions (FAQ)
Q: What lead times apply if stock quantities become exhausted?A: In-stock orders ship within 1–3 business days. If inventory depletes, component sourcing lead times generally extend to 5–8 weeks subject to factory production schedules.Q: Can I choose air freight or sea freight for this Woodward power module?A: Both transit options are available. Air freight shortens delivery windows with higher transport cost; sea freight lowers expense with longer transit durations. All shipments include full tracking records.Q: Does the 5453-277 support hot-swap while the MicroTMR rack remains energized?A: Hot removal or insertion is not permitted. Performing swap work under power risks catastrophic backplane short circuits and permanent damage to adjacent control modules.Q: Is the 5453-277 backward compatible with older MicroTMR chassis generations?A: Physical slot fit matches legacy racks, but full diagnostic functionality depends on matching system firmware revisions. Compatibility cannot be confirmed without bench validation prior to site installation.Q: What documentation is provided to support international customs clearance?A: Commercial invoice, packing list, and formal part specification documentation are included. Additional certification paperwork can be prepared upon advance written request.Q: Are all units fully bench tested before shipment?A: Every available module undergoes power cycling and fan performance validation. Test summary records can be shared for review prior to dispatch.Q: What operating conditions shorten the usable service life of this unit?A: Persistent cabinet dust buildup, cyclic temperature swings, and sustained operation above 55 °C accelerate fan bearing fatigue and degrade internal power regulation components. Install regular cabinet air filter maintenance cycles.
