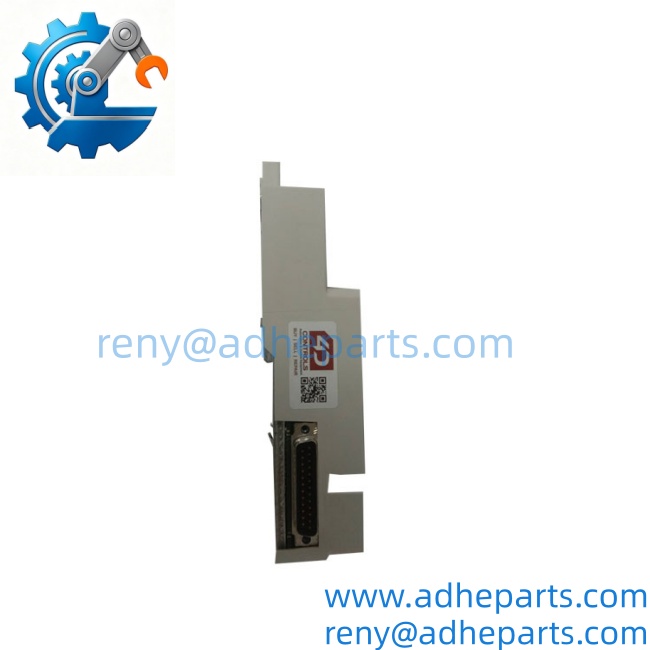

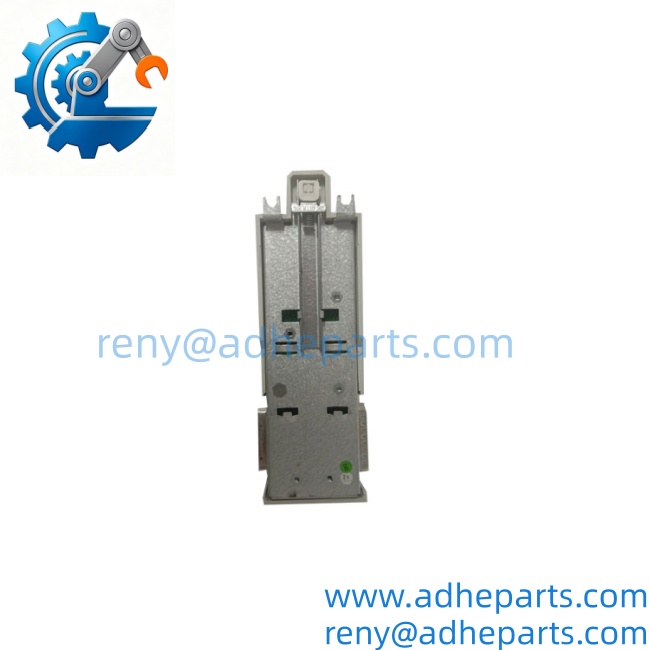

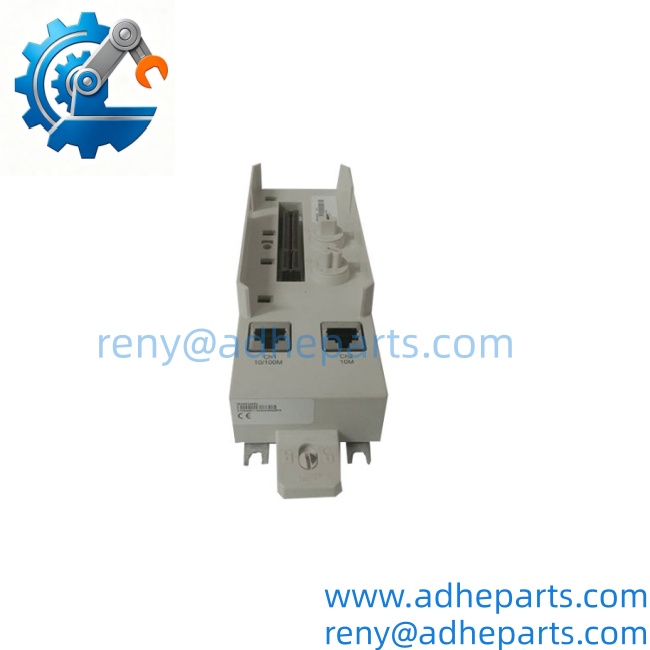

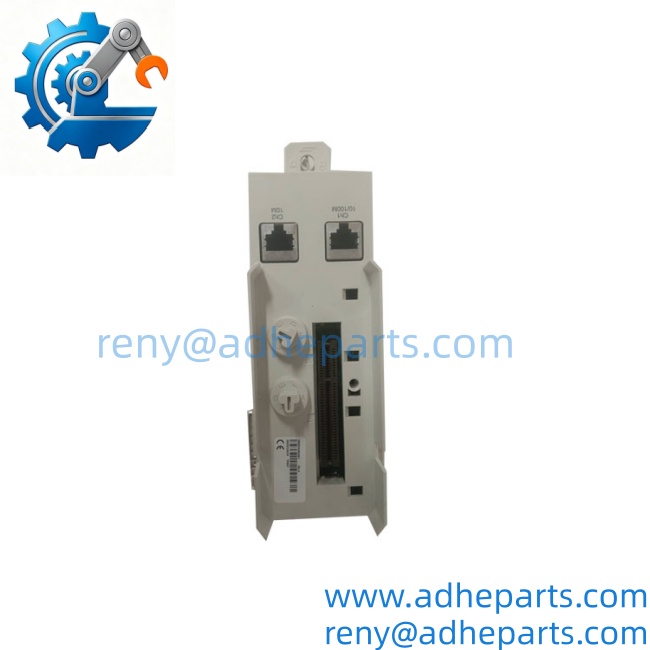

ABB TP867 3BSE043664R1
3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Designation | TP867 |
| Ordering Number | 3BSE043664R1 |
| Function | Baseplate for AC 800M Ethernet CIs |
| Compatible Modules | CI867 (Modbus TCP), CI868 (IEC 61850), CI871 (PROFINET IO), CI873 (EtherNet/IP), CI874 |
| Bus Interface | CEX-Bus |
| Ethernet Connectors | 2 × RJ45 (CH1 typically 10/100 Mbps; usage depends on mounted CI) |
| Power | Supplied via CEX-Bus (+24 V) |
| Mounting | DIN-rail / CEX-Bus assembly |
| Protection Feature | Mechanical code lock to prevent incorrect module insertion |
ABB TP867 3BSE043664R1
4. Product Introduction (Anti-Template)
When an AC 800M controller needs an Ethernet-based communication interface, the TP867 serves as the required baseplate. The communication interface module (CI867, CI868, CI871, CI873 or CI874) plugs directly onto the TP867.
The baseplate provides the mechanical mounting, CEX-Bus connection, and the RJ45 Ethernet ports. A mechanical code lock ensures that only the correct type of interface module can be installed. Power for the mounted CI is derived from the +24 V supply on the CEX-Bus through an onboard DC/DC converter in the CI itself. The TP867 is a passive mechanical and electrical interface—no active processing occurs on the baseplate.
ABB TP867 3BSE043664R1
5. QC, Procurement & Logistics SOP
- Inbound Verification – Confirm full markings (TP867 and 3BSE043664R1), integrity of the code lock, RJ45 connectors, and CEX-Bus contacts. Photograph all labels.
- Live Rig Testing – Mount a compatible CI module, install on the CEX-Bus, apply power, and verify that the interface initializes without mechanical or electrical faults.
- QA & Packaging – After inspection, protect the connectors and code-lock mechanism, clean the unit, and pack in protective packaging with desiccant.
- Global Logistics & Export Compliance – Classify under the correct HS code for industrial control accessories. Packaging must protect against mechanical damage; export documentation is prepared to minimize customs delays.
6. Technical Pitfalls & Integration Warnings
Correct CI Matching – The TP867 is shared by several CI modules. Installing an incompatible CI (or forcing a module against the code lock) can damage the connectors or the baseplate.
CEX-Bus Power – Ensure the CEX-Bus +24 V supply is stable and within specification. Undervoltage or noise on the bus can prevent the mounted CI from starting.
Ethernet Port Usage – Not all ports or speeds are used by every CI type. Confirm the correct RJ45 port and speed setting for the specific communication protocol.
Hot-Swap Procedure – Follow ABB guidelines for hot-swap of CEX-Bus modules. Improper insertion or removal under power can disrupt the bus.
ABB TP867 3BSE043664R1
7. Frequently Asked Questions (FAQ)
What is the realistic global lead time for a verified ?
Stock units typically ship within 1–5 business days after verification. Air freight adds standard transit time.
What is the main function of the ?
It is the baseplate that provides mechanical mounting, CEX-Bus connection, and Ethernet ports for AC 800M communication interface modules.
Which modules use the ?
CI867 (Modbus TCP), CI868 (IEC 61850), CI871 (PROFINET IO), CI873 (EtherNet/IP), and CI874.
What is the ordering number?
3BSE043664R1.
Does the contain active electronics?
No. It is a passive baseplate. Active circuitry resides in the mounted CI module.
Is a code lock present?
Yes. A mechanical code lock prevents installation of an incorrect CI module type.
Can it be used without a CI module?
No. The is only functional when a compatible communication interface module is mounted on it.
