Product Introduction
When your Honeywell TDC 2000/3000 DCS system control cabinet needs stable and reliable active cooling performance to protect high-value electronic modules from overheating damage, this fan assembly acts as the core thermal management and fault monitoring hub for the entire cabinet.
It features dual high-speed fans with industrial-grade dual ball bearing design, delivering long service life and low-noise operation. Its built-in fan failure detection alarm function immediately sends fault signals to the DCS system, ensuring maintenance personnel can quickly replace the unit before cabinet temperature rises to dangerous levels. The compact panel-mounted design fits perfectly into standard Honeywell DCS cabinet reserved installation positions, no extra cabinet modification work required.

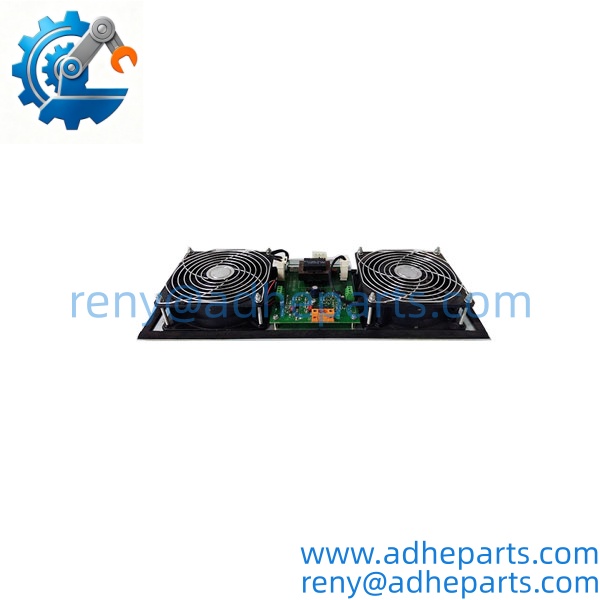

51303940-150

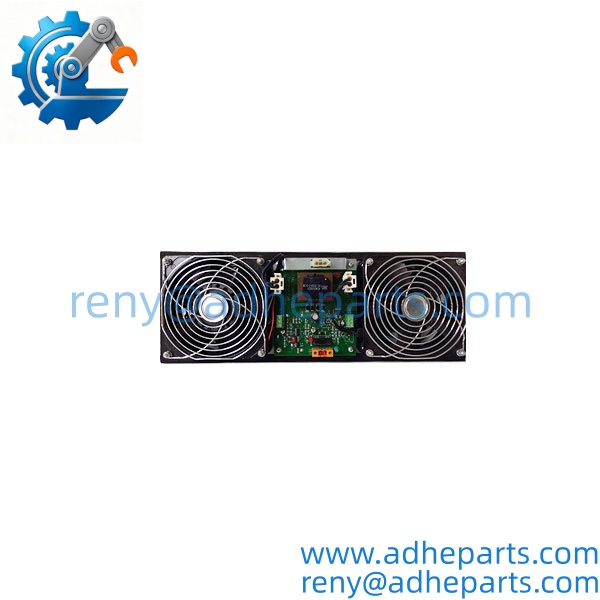

51303940-150

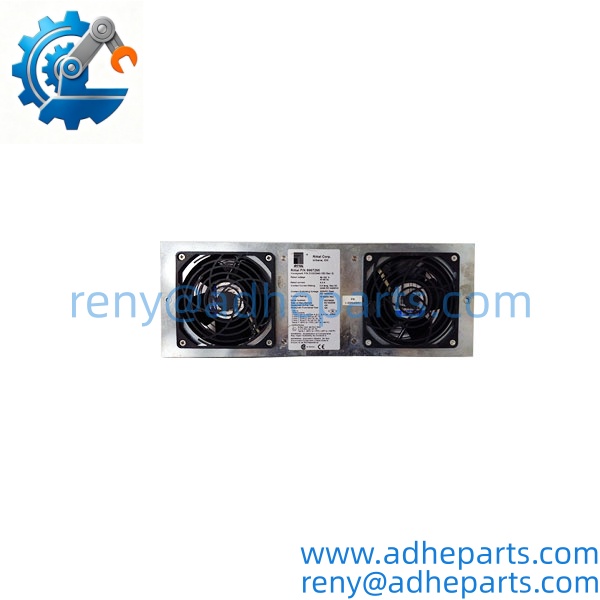

51303940-150
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 51303940-150 |
| Product Type | DCS Cabinet Cooling Fan Assembly with Integrated Alarm |
| Rated Voltage | 85–132 VAC, 47–63 Hz |
| Rated Current | 0.5 A |
| Power Consumption | 50 W |
| Fan Diameter | 172 mm |
| Fan Speed | 3100 RPM |
| Airflow Capacity | 310 CFM |
| Noise Level | 55 dBA |
| Alarm Function | Integrated fan failure detection with dry contact output |
| Dimensions | 222 × 111 × 44 mm |
| Net Weight | 3.22 kg |
| Mounting Method | Standard industrial cabinet panel mounting |
| Industry Certifications | CE, UL508, CSA, TUVP |
| Compatible Systems | Honeywell TDC 2000, TDC 3000 DCS systems |
Field Application & Technical Pitfalls
Critical Industrial Scenarios
- **Thermal Power Plant DCS System Cabinet Cooling: Acts as the core cooling unit for Honeywell TDC 3000 DCS system cabinets in thermal power plants, continuously exhausting hot air generated by high-density I/O modules, preventing system overheating shutdown during long-term 24/7 operation.
- **Large Petrochemical Refinery DCS Thermal Management: Delivers reliable cooling performance for petrochemical refinery DCS control cabinets, adapting to high-temperature and high-dust industrial site environments, extending the service life of sensitive DCS electronic modules.
- **Pharmaceutical Factory Automation Control Cabinet Cooling: Adapts to clean pharmaceutical production workshop environments, providing stable cooling for automation control cabinets that require strict temperature control.
Non-Negotiable Technical Pitfalls
- ⚠️ Bold Warning 1: Never operate the fan assembly without installing the original dust filter. The third fan blade will accumulate excessive dust that causes imbalance, leading to severe vibration and premature bearing failure.
- ⚠️ Bold Warning 2: Skipping the pre-commissioning full fan operation and alarm function test will leave you with hidden cooling dead zones. This unit must complete 2-hour continuous operation test to confirm both fan rotation and alarm output functions work correctly.
- ⚠️ Bold Warning 3: Do not install the fan assembly in the wrong airflow direction (blowing air into the cabinet instead of exhausting hot air out). The cabinet internal hot air cannot be effectively discharged, resulting in 15°C+ temperature rise inside the cabinet.
A petrochemical plant maintenance team once swapped a 51303940-150 fan assembly and skipped the alarm function test. The hidden dead alarm output caused the DCS system to fail to detect fan failure, resulting in a 2.5-hour DCS system overheat protection shutdown that forced the entire production line to reduce output.
Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-check the OEM serial number against Honeywell’s official TDC DCS part registry, confirm the part number 51303940-150 matches the factory label, and inspect no damage or deformation on the fan blades and metal housing.
- Live Rig Testing: Power the unit with 120VAC industrial power, and confirm full 2-hour continuous stable operation with no abnormal noise or vibration.
- Parameter Testing: Verify 310CFM airflow performance meets factory specifications, confirm fan failure alarm dry contact output function operates correctly, and validate all status indicators function properly.
- Final QA & Packaging: Seal the tested fan assembly in a heavy-duty industrial carton with foam padding, attach a unique QC passed serial label, and complete the final packaging for shipment.
Frequently Asked Questions (FAQ)
- Can I hot-swap this fan assembly while the DCS system is running? Yes, but you must first confirm the cabinet internal temperature is below 40°C, and complete the replacement within 10 minutes to avoid triggering over-temperature alarms.
- What exact Honeywell systems is this fan assembly compatible with? It works natively with Honeywell TDC 2000 and TDC 3000 DCS systems. It will not fit the reserved installation positions of other brand DCS cabinets without custom modification.
- How long is the standard warranty for this new surplus unit? 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by dust clogging, miswiring, or improper airflow direction installation in the field.
- How do I tell a genuine OEM unit apart from a refurbished clone? Genuine Honeywell 51303940-150 fan assemblies have a laser-etched part number on the metal housing, not a printed sticker. Clone units almost always fail the 2-hour continuous operation vibration and airflow performance test.
- What is the typical lead time for shipment? In-stock units ship within 48 hours. If you require official Honeywell factory performance test documentation, add 2 extra business days to the turnaround window.
- Can this fan assembly replace the older Honeywell legacy DCS cooling fan unit? Well, technically it fits the same standard panel mounting footprint, no extra modification work is required, you can directly swap the old unit with this new one.
