GE IS230SNCIH6A | Mark VIe Interface Board, Replacement Unit

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

3. Key Technical Specifications

Confirm each line against the OEM datasheet and the marking on your existing board before ordering. The functional revision code on this board governs firmware and I/O pack compatibility.

4. Product Introduction

The GE IS230SNCIH6A is a board for the Speedtronic Mark VIe turbine control platform. The Mark VIe is the networked generation of GE’s turbine control hardware — it replaced the Mark VI’s parallel backplane with an Ethernet-based architecture that connects the controller, the I/O packs, and the operator interface. This board sits in that architecture and handles a specific control or interface function that depends on the build.

Here is the catch, and it is why I am not handing you a clean spec sheet: on Mark VIe hardware, compatibility is governed by the functional revision code and the I/O pack firmware. A board with the right part number and the wrong revision code will initialize and still fail under load. Before you order, read the full model string and the functional revision code off your existing board and compare it to the replacement. If you send me a photo of the board label and the cabinet it came out of, I will confirm what you are looking at against the OEM documentation.

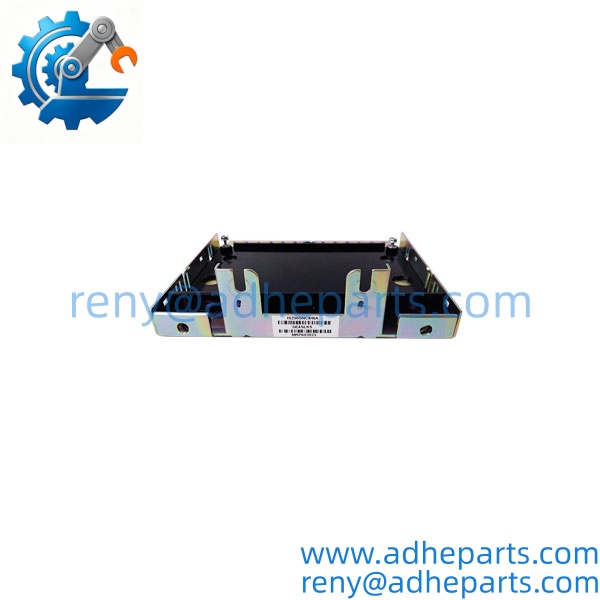

IS230SNCIH6A

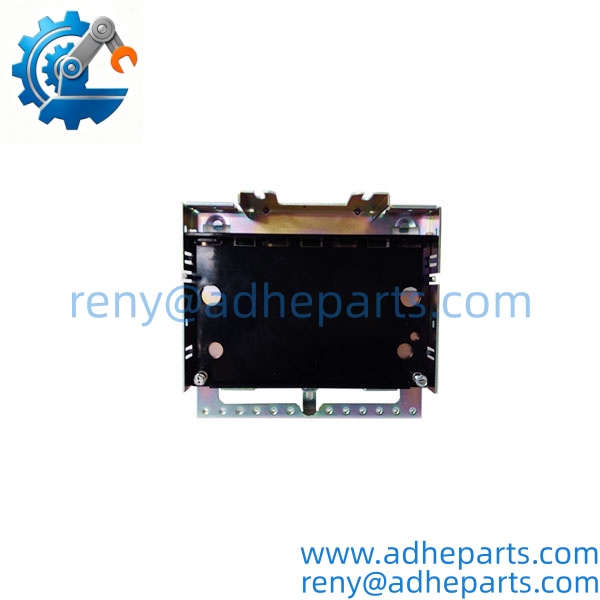

IS230SNCIH6A

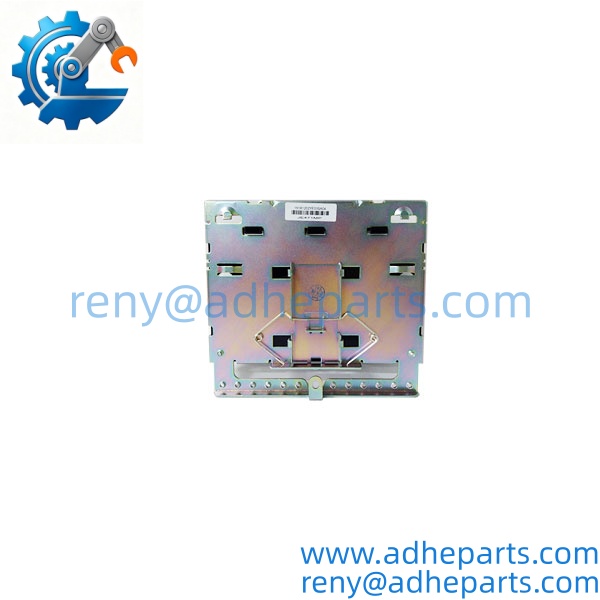

IS230SNCIH6A

5. Application Scenarios & Field Experience

Part 1 – Narrative Paragraph

The failure that costs the most downtime on a Mark VIe turbine is a board that passes a power-up test and still drops signals under load. I have seen a crew replace a Mark VIe board twice and still have the fault because the real problem was a firmware mismatch between the board and the I/O pack. On this platform, the board is rarely the only thing that can fail. Before you order a replacement, check the I/O pack firmware, the connector seating, and the on-board diagnostics. Then check the functional revision code against your system’s configuration. A board with the right part number and the wrong revision will initialize and still cause a trip.

Part 2 – Numbered List (Application Scenarios)

1. Gas Turbine Control – Control or Interface Function – The board carries control or interface signals within the Mark VIe architecture. A dropout here shows up as a control fault and, depending on the function, a unit trip.
2. Steam Turbine Control – I/O Pack Interface – The board interfaces with the Mark VIe I/O packs. A failed board drops those packs from the controller’s view and the operator loses visibility on those points.
3. Combined Cycle Plants – Mark VIe Retrofit Support – Used where a Mark VIe system is in service and the OEM no longer stocks the exact revision. Replacement is often the only path short of a full control system migration.
4. Industrial Turbines – Control System Maintenance – The board is a spare for plants running Mark VIe controls on industrial turbines. The on-board diagnostics help isolate the fault to the board, the I/O pack, or the network.

Part 3 – Short Field Story

A combined cycle plant had a gas turbine that logged an intermittent control fault during load changes. The crew replaced the IS230 board and the fault came back two days later. We asked them to check the I/O pack firmware revision and the connector seating at both ends. The I/O pack was running a firmware revision that was two levels behind the replacement board, and the two would not handshake correctly under load. The plant updated the I/O pack firmware and the fault cleared. The board had been fine — the firmware was the problem.

6. Standard Operating Procedure (SOP) for Quality Control

• Visual & Origin Inspection – We verify the GE marking, the IS230SNCIH6A model string, and the date code. We inspect the backplane connector for bent pins and the board for evidence of heat damage, rework, or moisture. A board with a cracked connector or burned traces is rejected.
• Revision Documentation – We read and photograph the full model string, the functional revision code, all jumper and switch settings, and the on-board diagnostics. That record ships with the board so you can compare it against the unit you are replacing.
• Compatibility Cross-Check – We verify the board against the OEM documentation for the I/O pack model and firmware revision you specify. A board that does not match the requested application is set aside rather than shipped.
• Power-Up Self-Test – The board is inserted into a known-good Mark VIe test rack. We verify it initializes without a backplane fault and that the controller recognizes the board type.
• Signal Path Verification – We verify the board’s signal path against a test fixture and confirm the outputs match the commanded values.
• Connector Integrity Test – We mate and unmate the backplane connector ten times to confirm the contacts do not deform and the retention mechanism holds. A loose board causes intermittent faults that are hard to diagnose in the field.
• ESD-Safe Packaging – The board is wrapped in anti-static film, seated in a conductive foam insert with the connectors protected by rigid shrouds, and packed in a double-wall carton with static warning labels.

7. Frequently Asked Questions (FAQ)

Q1: What is the function of the IS230SNCIH6A?

A: I cannot confirm the exact function from the model number alone. It is a Mark VIe board from the turbine control platform, but it could be a control card, an interface module, or a communication board. Send us a photo of the label and the cabinet it came out of, and we will confirm it against the OEM documentation before you order.

Q2: Will this board work in my Mark VIe rack without a firmware change?

A: Only if the functional revision code matches or is compatible with your system’s configuration. The revision code on this board governs the firmware image, and a mismatched revision can initialize and still drop signals under load. Read the revision code off your existing board and compare it to the replacement before you order.

Q3: What is the warranty on this board?

A: We offer a 12-month warranty from the ship date. It covers component failure, backplane connector failure, and signal path failure under normal operating conditions. It does not cover damage from hot-swapping the board with the rack energized, bent pins from forced insertion, or field wiring faults that cause fuse failure. We test every board in a live Mark VIe rack before it ships.

Q4: Do you have this exact board in stock?

A: Mark VIe inventory moves quickly, and stock varies by revision. Confirm availability before you plan an outage. If we are out of the revision you need, we will tell you what we actually have rather than quote a date we cannot hold.

Q5: Any installation pitfalls I should watch for?

A: Four. First, power down the Mark VIe rack before inserting or removing the board — these boards are not hot-swap capable. Second, record the functional revision code, all jumper and switch settings, and the I/O pack firmware revision from the old board before you remove it. Third, verify the I/O pack firmware is compatible with the replacement board before you install it. Fourth, after the swap, verify the board communicates with the controller and that the I/O packs are visible before you return the unit to service. A board that powers up is not necessarily communicating correctly.
