Product Introduction
When your ControlLogix large industrial automation system needs reliable multi-channel analog signal acquisition performance, this module acts as the core analog signal input hub between field transmitters and the PLC processor.
It features flexible channel configuration that supports three different input modes: 8 single-ended inputs, 4 differential inputs, or 2 high-speed differential inputs, allowing you to freely adjust the acquisition performance according to on-site signal quality requirements. It supports 1756-TBCH and 1756-TBS6H removable terminal blocks, enabling fast module hot-swap replacement without rewiring all field signal cables.

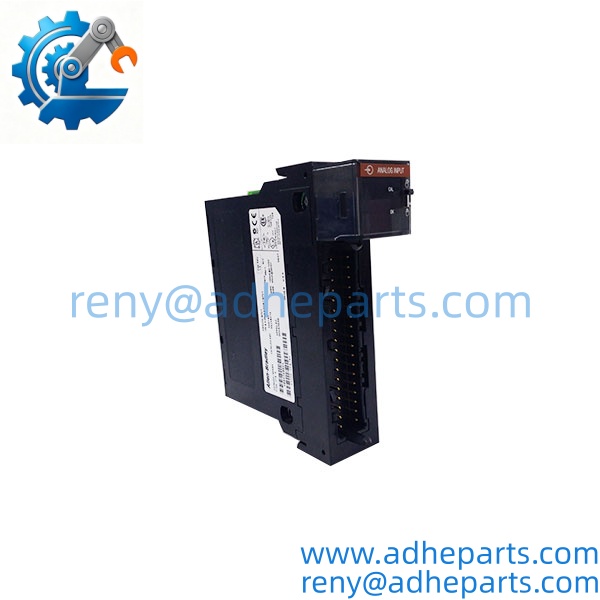

1756-IF8

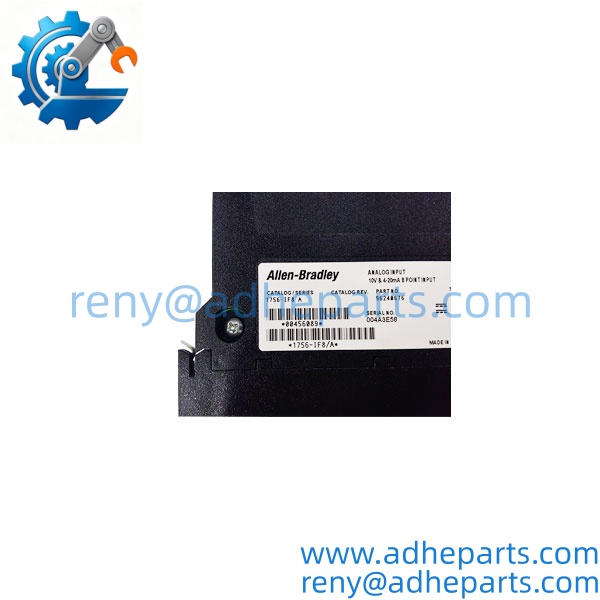

1756-IF8

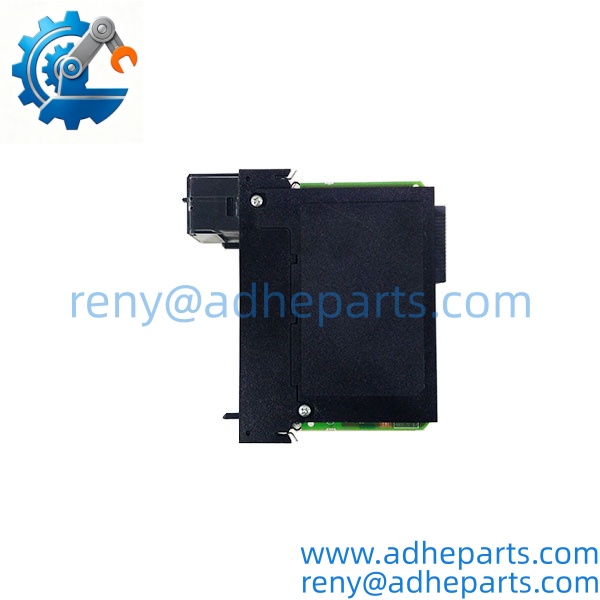

1756-IF8

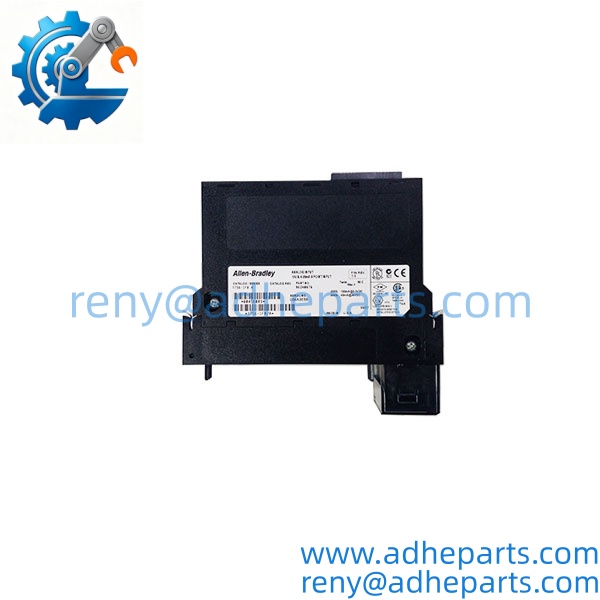

1756-IF8
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 1756-IF8 |
| Product Type | ControlLogix 8-Point Analog Input Module |
| Input Channel Modes | 8 single-ended / 4 differential / 2 high-speed differential inputs |
| Supported Signal Types | 0-10.25V, ±10.25V, 0-5.125V, 0-20.5mA |
| Backplane Current (5V) | 150 mA |
| Backplane Current (24V) | 40 mA |
| Max Power Dissipation | 1.73W (Voltage mode), 2.33W (Current mode) |
| Removable Terminal Blocks | 1756-TBCH, 1756-TBS6H |
| Compatible Software | RSLogix 5000 V8.02.00 or later |
| Operating Temperature Range | 0°C ~ +60°C |
| Installation Method | Standard ControlLogix PLC chassis slot plug-in mounting |
| Display Indicators | Module Health, In Calibration, Mode status LEDs |
| Channel Isolation | No inter-channel isolation for single-ended mode |
Field Application & Technical Pitfalls
Critical Industrial Scenarios
- **Large Petrochemical Plant Process Control: Acts as the core analog acquisition unit for petrochemical plant DCS systems, collecting temperature, pressure and flow signals from field transmitters, ensuring accurate process parameter monitoring.
- **Large Water Treatment Plant Automation Control: Delivers stable multi-channel analog signal acquisition for large water treatment plants, monitoring water quality parameters and pump operating status in real time.
- **Automotive Manufacturing Production Line Control: Adapts to high-vibration automotive workshop environments, providing reliable analog signal collection for robotic production line process monitoring systems.
Non-Negotiable Technical Pitfalls
- ⚠️ Bold Warning 1: Never connect 24V DC digital signals directly to the analog input channels. The third channel’s signal conditioning circuit will experience permanent overvoltage damage.
- ⚠️ Bold Warning 2: Skipping the pre-commissioning full 8-channel signal calibration will leave you with hidden measurement offset. This unit must complete full-range verification with a standard analog signal source to achieve rated acquisition accuracy.
- ⚠️ Bold Warning 3: Do not use single-ended input mode in high-electromagnetic-interference industrial sites. Severe signal crosstalk will cause 5%+ analog measurement deviation.
A petrochemical plant maintenance team once swapped a 1756-IF8 module and skipped the full-channel calibration. The hidden 3.8mA measurement offset caused the reactor flow control loop to deviate from setpoint, resulting in a 1.5-hour production process adjustment that affected product quality.
Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-check the OEM serial number against Rockwell Automation’s official ControlLogix part registry, confirm the part number 1756-IF8 matches the factory label, and inspect no bent pins or corrosion on the backplane and signal connectors.
- Live Rig Testing: Power the unit in a calibrated ControlLogix test rack, apply 24V DC power, and confirm full 8-channel analog signal acquisition stability for 2 continuous hours.
- Parameter Testing: Verify all 3 input modes operate correctly, confirm voltage and current signal acquisition accuracy meets factory specifications, and validate all status LED indicators function properly.
- Final QA & Packaging: Seal the tested module in a static-shielding anti-static bag, attach a unique QC passed serial label, and nest it in foam padding inside a rigid industrial shipping carton.
Frequently Asked Questions (FAQ)
- Can I hot-swap this module while the ControlLogix PLC system is running? Yes, but you must first set the corresponding analog loops to bypass mode in the PLC program, otherwise you will trigger temporary analog signal loss alarms.
- What exact systems is this module compatible with? It works natively with Allen-Bradley ControlLogix series PLC systems. It will not operate correctly with CompactLogix or SLC 500 PLC platforms.
- How long is the standard warranty for this new surplus unit? 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by overvoltage, miswiring, or improper signal type connection in the field.
- How do I tell a genuine OEM unit apart from a refurbished clone? Genuine Allen-Bradley 1756-IF8 modules have a laser-etched part number on the PCB, not a printed sticker. Clone units almost always fail the full 8-channel analog accuracy test.
- What is the typical lead time for shipment? In-stock units ship within 48 hours. If you require official Rockwell Automation factory performance test documentation, add 2 extra business days to the turnaround window.
- Can this module replace the older ControlLogix legacy analog input unit? Well, technically it fits the same ControlLogix chassis slot footprint, but you will need to reconfigure all channel signal type and range parameters in RSLogix 5000 software to unlock the full high-precision acquisition performance.
