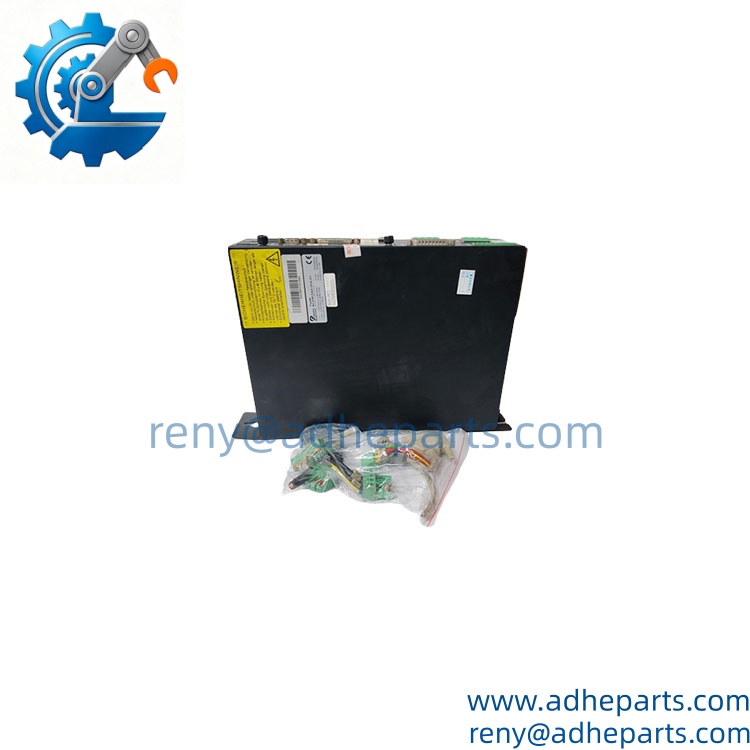

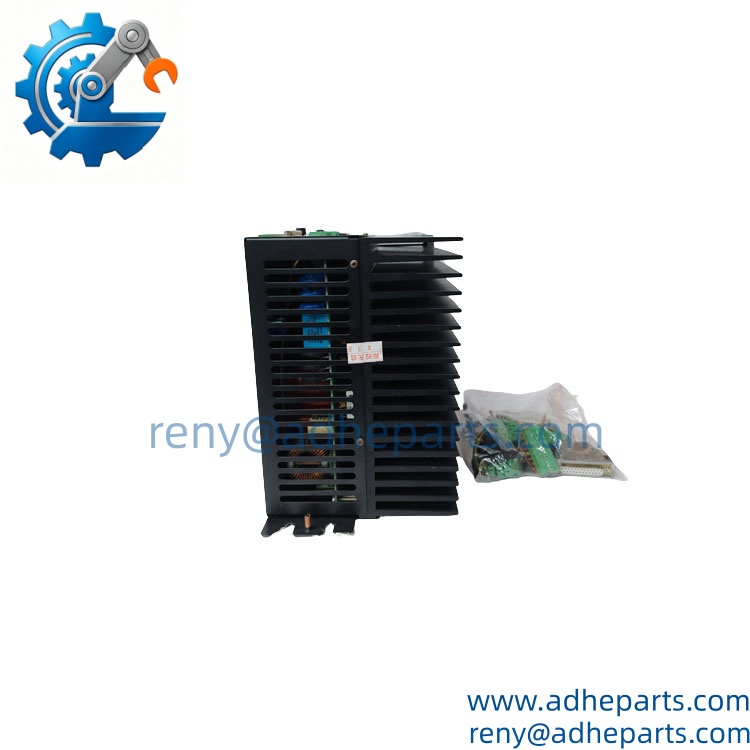

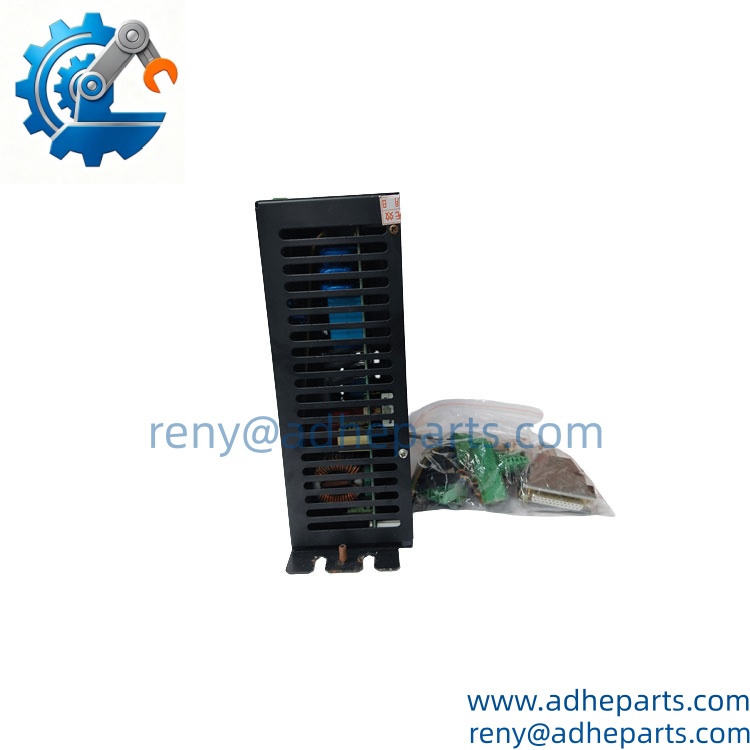

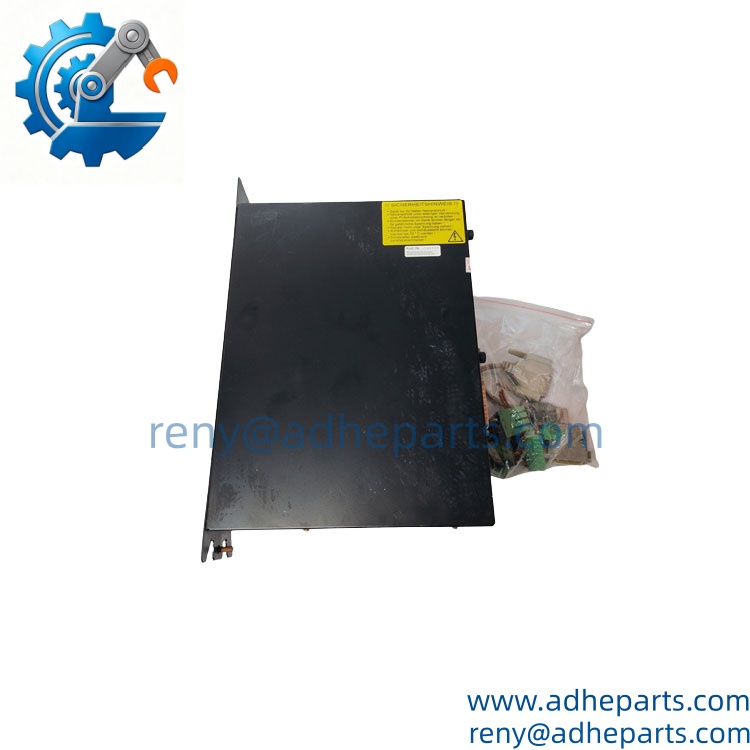

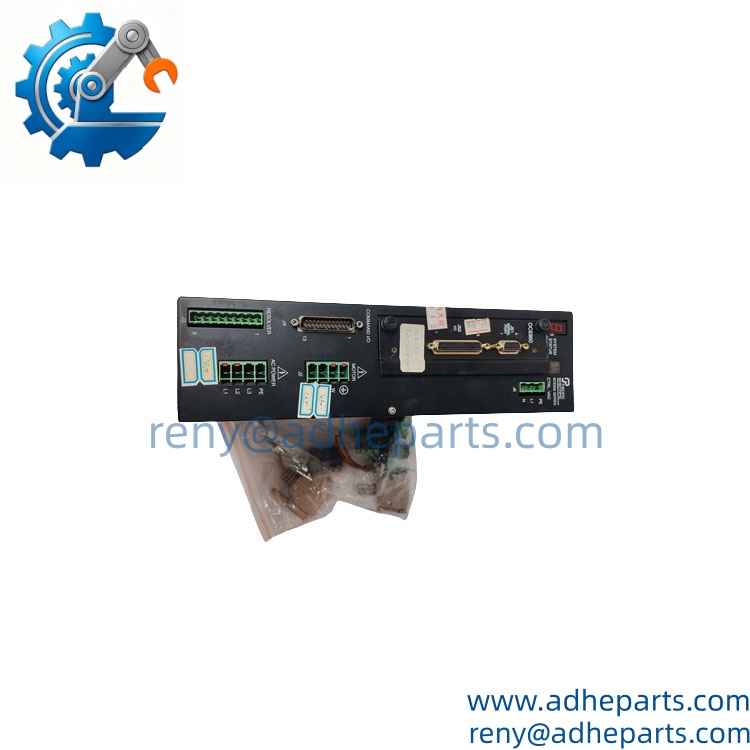

Pacific Scientific SCE903A3‑002‑01
Pacific Scientific SCE903A3‑002‑01
Key Technical Specifications
- Input Voltage: 230‑400 VAC, 50/60 Hz, single‑phase or three‑phase input
- Continuous Output Current: 3.75A @ 25 °C convection cooling; 3.75A @ 50 °C forced‑air cooling
- Peak Output Current: 7.5A convection cooling; 10.6A forced‑air cooling
- Control Loops: Digital current, velocity, position triple closed‑loop via onboard DSP
- Command Inputs: ±10V analog torque/velocity, step‑direction pulse train
- Feedback Options: Resolver native support, incremental encoder compatible
- Serial Interface: RS‑232 / RS‑485 for parameter tuning and diagnostics
- Built‑In Protection: Overcurrent, overvoltage, undervoltage, over‑temperature, short‑circuit, ground‑fault trips
- Mounting Style: Panel‑mount industrial chassis
- Operating Temperature Range: 0 °C to +50 °C
- Physical Dimensions: 370 mm H × 85 mm W × 229 mm D, approx. 5.0 kg weight
Product Introduction
Unlike entry‑level modules, the SCE903A3‑002‑01 isolates power stage noise from position command signals to hold stable motion under fluctuating plant load conditions. It ships pre‑loaded with standard base firmware for direct pairing with matching Pacific‑Scientific AC servo motors.
Honestly, this shared‑connector SCE900 platform cuts cabinet rework time when swapping drives on multi‑axis lines —though customs clearance in the EU might add 2 days for cross‑border industrial power hardware shipments. It covers common automation tasks from flying shear positioning to conveyor axis regulation without external loop hardware.
Pacific Scientific SCE903A3‑002‑01
QC, Procurement & Logistics SOP
- Inbound Verification: Inspect OEM labels and housing integrity; cross‑reference part suffix codes against base documentation to filter mis‑configured sub‑variants; confirm factory‑installed firmware version.
- Live Rig Testing: Bench power‑on self‑test with resistive load simulation; validate analog command response, serial port communication, and fault trip functions to catch hidden power‑stage degradation.
- QA & Anti‑Static Packaging: Secure terminal connectors against shift during transit; place unit inside static‑shield bag, add foam cushioning to absorb shock for rough freight handling.
- Global Logistics & Export Compliance: Assign correct HS classification for industrial servo amplifiers. Use reinforced rigid casing for air or sea freight; compile full technical documentation to minimize hold‑ups at global procurement portals and customs databases.
Pacific Scientific SCE903A3‑002‑01
Technical Pitfalls & Integration Warnings
- Firmware Rev Mismatch. If this unit’s standard base firmware gets paired with a motor profile built for SCE903 alternate firmware variants, position drift and random following errors show up only under full load. One integrator reused old motor parameter files and spent 6 hours chasing intermittent axis stalls.
- DIP Switch / Configuration errors. Incorrect RS‑485 address or resolver‑encoder mode jumpers make the drive unresponsive to host commands. A maintenance tech copied switch positions from a different SCE9xx model and could not establish serial communication.
- Wiring/Terminal incompatibility. Mismatched resolver pin assignments will produce noisy position feedback even when power runs stable. Re‑using generic off‑the‑shelf motor cables without pin‑out validation can burn feedback transceivers on power‑up.
- ESD destruction during unboxing. Touch exposed DSP and feedback circuit traces without proper grounding, and the drive may pass idle bench test but throw random position faults under operating load. A field technician skipped wrist strap grounding and saw unexplained axis glitches after installation.
Pacific Scientific SCE903A3‑002‑01
Frequently Asked Questions (FAQ)
What global lead times should I expect for the SCE903A3‑002‑01 servo drive? Stock‑on‑hand hardware can ship within 1‑3 business days. Total end‑user transit varies; remote destination locations may push full cycle out to 14‑22 calendar days.
What shipping and customs options work best for this servo amplifier? Air freight shortens delivery window at higher cost, sea freight lowers expense for bulk quantity orders. Accurate HS coding and complete part documentation reduce probability of customs inspection delays.
Can I hot‑swap this drive while machine main power stays energized? Do not hot‑swap this unit. Live‑state removal or insertion exposes power terminals to arcing. Arcing can destroy drive power components and damage neighboring cabinet I/O hardware. Full cabinet power shutdown is required before replacement.
Does SCE903A3‑002‑01 accept drop‑in swap for older SCE900 series drives? Physical panel mounting footprint matches many SCE900 family units. Existing motor and feedback cabling may fit, but stored parameter sets are not guaranteed to transfer. Bench validation before live machine deployment remains mandatory.
What pre‑installation checks should my service team complete?
- Inspect power and feedback terminal pins for bending, corrosion or residue buildup
- Confirm onboard firmware revision aligns with machine baseline configuration
- Double‑check jumper settings for feedback type before applying AC mains power
Is field‑repair support available for this legacy Pacific‑Scientific drive? Original OEM component sourcing is limited for this legacy platform. Direct unit swap represents the lower‑risk path for production‑critical machine axes.
Will this drive work with third‑party non‑Pacific‑Scientific brushless servo motors? It can operate with third‑party motors, but auto‑tune routines may deliver poor performance. Manual gain tuning and motor‑parameter entry are required, and full performance cannot be guaranteed without pre‑deployment bench testing.
