Product Introduction
When your Triconex SIS safety instrumented system needs ultra-reliable fault-tolerant analog signal acquisition performance to ensure the safety protection function of high-risk industrial production processes will never fail due to single-point hardware failure, this module acts as the core safety signal processing hub.
It is a flagship TMR redundant analog input module for Triconex Tricon safety instrumented systems, adopting triple modular redundancy architecture, all signal paths are triplicated, and the mid-value selection algorithm is used for signal voting processing. It provides 12-bit high-precision analog-to-digital conversion, with a full-scale error of only 0.15% at 20mA, and integrates a high-precision reference voltage source to support automatic ADC calibration. It has built-in CRC data integrity protection mechanism and channel electrical isolation design, which can prevent the failure of one channel from spreading to other channels. It supports HART and Modbus industrial communication protocols, and must be used with a dedicated external terminal panel (ETP) to connect to the Tricon chassis backplane cable. It is a core replacement part for Triconex SIS safety system maintenance and retrofit projects.

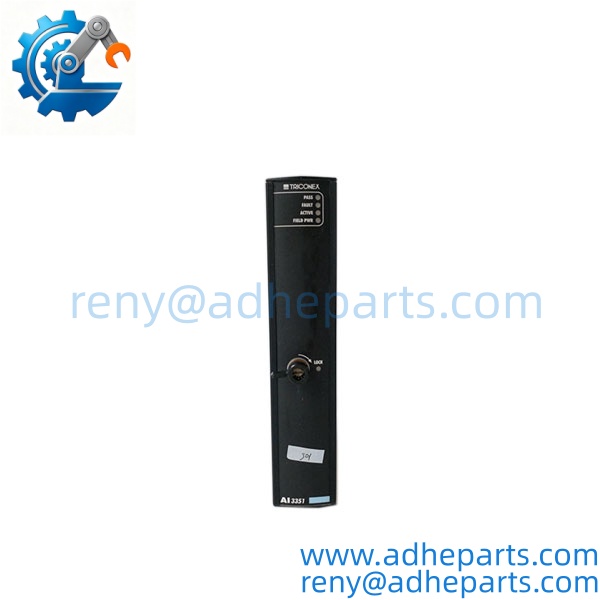

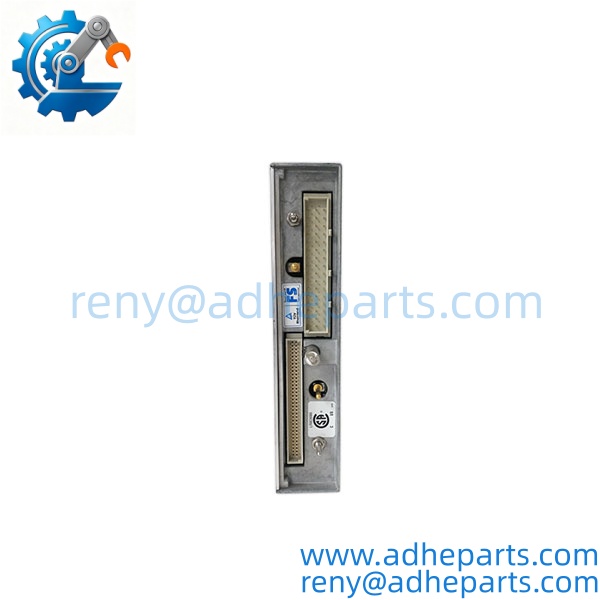

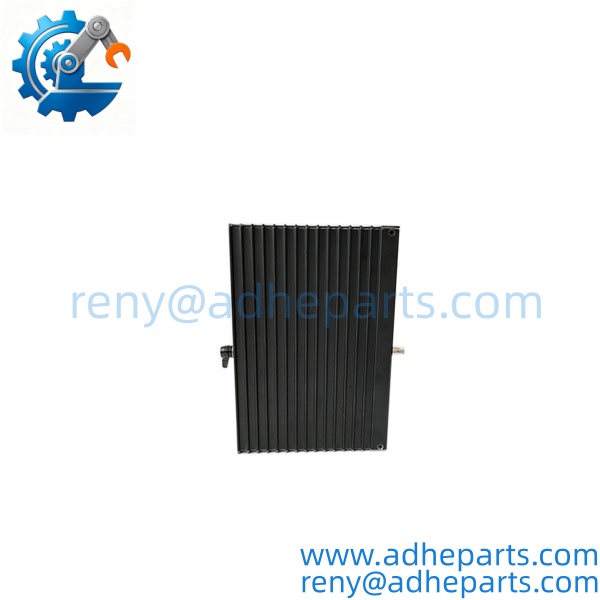

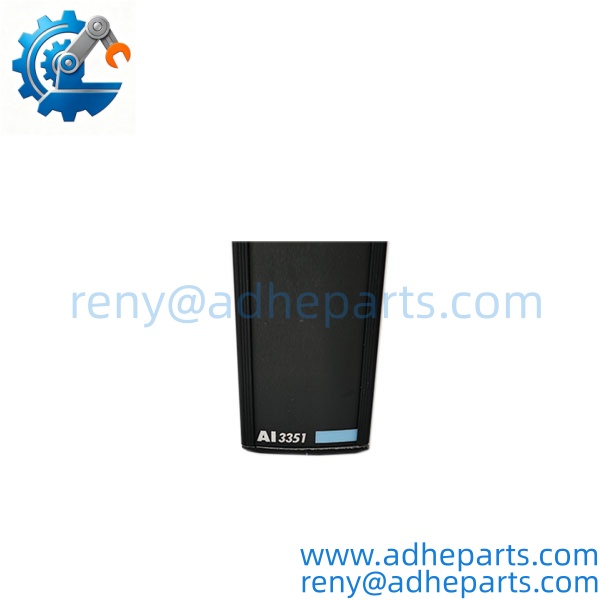

TRICONEX 3351
TRICONEX 3351
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 3351 (AI3351) |
| Product Type | TMR Analog Input Module |
| Manufacturer | TRICONEX (Invensys) |
| Architecture | Triple Modular Redundancy (TMR) |
| Total Analog Input Channels | 16 channels |
| ADC Resolution | 12-bit |
| Full-Scale Measurement Error | ≤ 0.15% @ 20 mA |
| Signal Voting Algorithm | Mid-value selection |
| Data Protection | CRC cyclic redundancy check |
| Channel Isolation | Full electrical isolation between channels |
| Communication Protocols | HART, Modbus RTU/TCP |
| Calibration Support | Built-in high-precision reference voltage source for automatic ADC calibration |
| Required Accessories | Dedicated External Terminal Panel (ETP) for signal wiring |
| Operating Temperature Range | 0°C ~ +60°C |
| Safety Integrity Level | SIL 3 certified |
| Installation Method | Standard Tricon SIS chassis slot mounting |
| Net Weight | ~0.7 kg |
| Compatible Systems | Triconex Tricon series safety instrumented systems |
Field Application & Technical Pitfalls
Critical Industrial Scenarios
- **Large Petrochemical Plant SIS System Safety Signal Acquisition: Acts as the core analog signal acquisition unit for Triconex SIS systems in petrochemical production plants, collecting real-time critical process parameters such as furnace temperature, pressure and gas concentration, ensuring that the safety protection system can trigger the interlock action in time when a dangerous situation occurs.
- **Offshore Oil Platform Safety Control System: Delivers reliable TMR fault-tolerant performance for offshore oil platform safety instrumented systems, adapting to strong electromagnetic interference and high-corrosion offshore environments, meeting the zero-failure safety operation requirements of offshore oil production.
- **Chemical Plant High-Risk Reaction Kettle Safety Monitoring: Adapts to high-risk flammable and explosive chemical production environments, providing 100% fault-tolerant analog signal acquisition support for the safety interlock system of large chemical reaction kettles.
Non-Negotiable Technical Pitfalls
- ⚠️ Bold Warning 1: Never arbitrarily use non-matching ordinary terminal blocks for signal wiring. The third signal channel will experience common-mode interference that causes the signal measurement deviation to exceed the safety threshold.
- ⚠️ Bold Warning 2: Skipping the pre-commissioning full channel TMR voting test will leave you with hidden safety protection refusal risks. This module must confirm all 16 channels’ mid-value selection voting functions fully meet SIL 3 safety specifications before putting into operation.
- ⚠️ Bold Warning 3: Do not perform hot-swap operation while the SIS safety system is running. Unexpected signal acquisition interruption during the swap will cause the safety protection function to fail, resulting in serious industrial safety hazards.
A large petrochemical plant maintenance team once swapped a TRICONEX 3351 module and skipped the TMR voting test. The hidden single-channel signal processing failure caused the SIS system to fail to trigger the interlock action when the reactor pressure exceeded the limit, resulting in a 3-hour emergency shutdown of the production unit.
Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-check the OEM serial number against Triconex’s official SIS part registry, confirm the part number 3351 (AI3351) matches the factory label, and inspect no bent pins or corrosion on all backplane and signal connectors.
- Live Rig Testing: Power the unit in a calibrated Triconex SIS test bench, apply standard 4-20mA analog reference signals, and confirm full 2-hour continuous stable signal acquisition operation.
- Parameter Testing: Verify all 16 analog channels operate correctly, confirm TMR mid-value selection voting function meets factory specifications, and validate all status LED indicators and fault diagnosis functions work properly.
- Final QA & Packaging: Seal the tested module in a static-shielding anti-static bag, attach a unique QC passed serial label, and nest it in foam padding inside a rigid industrial safety-grade shipping carton.
Frequently Asked Questions (FAQ)
- Can I hot-swap this module while the SIS safety system is running? No. You must first set the corresponding safety protection function to maintenance blocking state and confirm the redundant signal channel is operating normally before removing the unit, otherwise you will trigger unexpected safety protection function failure risks.
- What exact systems is this module compatible with? It works natively with TRICONEX Tricon series safety instrumented systems, and cannot be directly used in non-TMR architecture SIS systems without custom adaptation.
- How long is the standard warranty for this new surplus unit? 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by miswiring, improper non-Triconex terminal panel matching, or overvoltage in the field.
- How do I tell a genuine OEM unit apart from a refurbished clone? Genuine TRICONEX 3351 modules have a laser-etched part number on the PCB, not a printed sticker. Clone units almost always fail the full TMR triple modular redundancy voting performance test.
- What is the typical lead time for shipment? In-stock units ship within 48 hours. If you require official Triconex factory SIL 3 safety performance test documentation, add 2 extra business days to the turnaround window.
- Can this module replace the older Triconex legacy analog input unit? Well, technically it fits the same standard Tricon SIS chassis slot footprint, but you must confirm the SIS system firmware version fully matches the target safety system before replacement to ensure 100% system compatibility.
