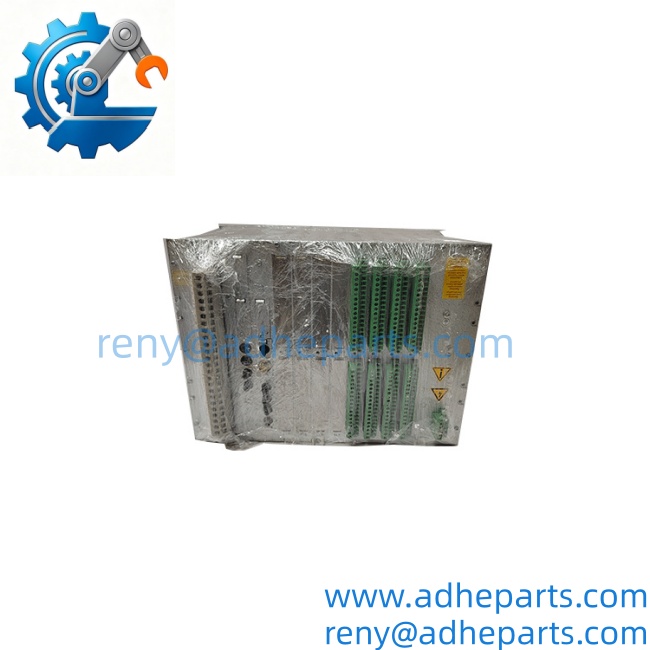

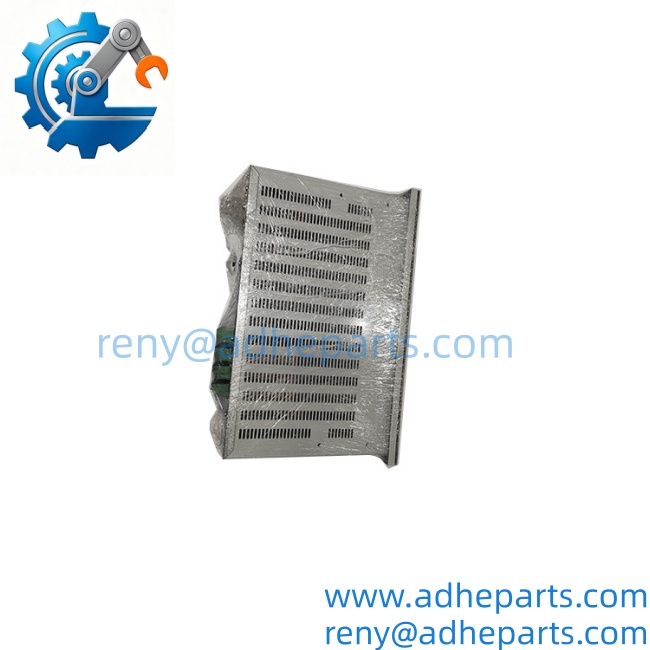

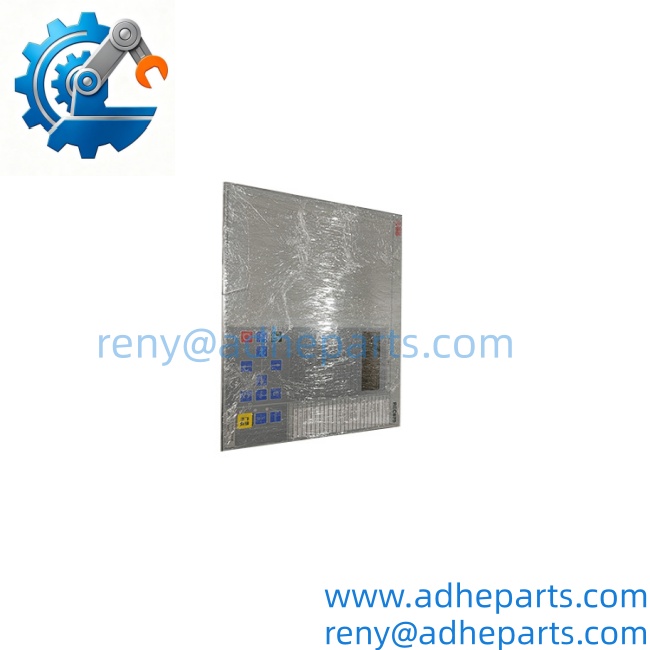

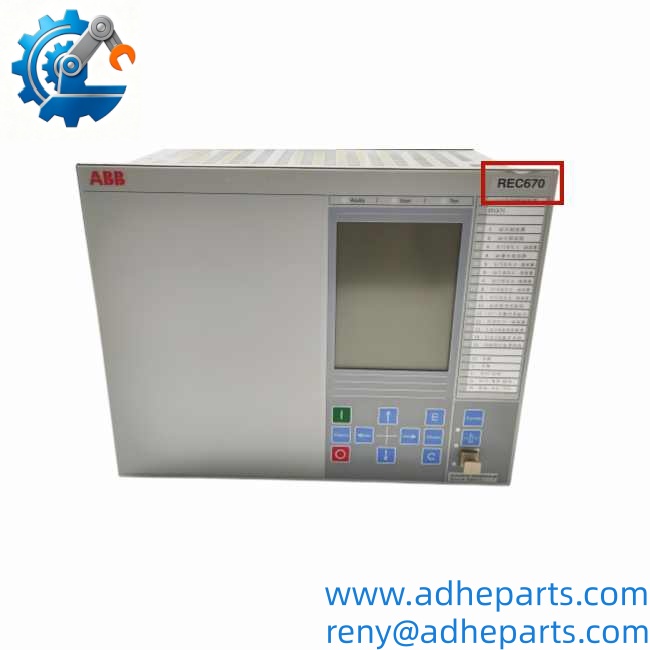

ABB REC670
3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Family | Relion 670 series |
| Primary Function | Bay control, protection and monitoring |
| Communication | IEC 61850-8-1 Ed1 / Ed2 (GOOSE, MMS); PRP / HSR redundancy options |
| Local HMI | Multi-display graphic HMI |
| Control Capability | Single or multi-bay (up to 6 bays in typical configurations) |
| Protection Functions | Overcurrent (phase & earth), voltage, thermal overload, frequency, autoreclose, synchrocheck, etc. |
| Switchgear Support | Single breaker, double breaker, 1½ breaker and other common arrangements |
| Configuration | Pre-configured packages or fully customized |
| Typical Applications | Transmission and distribution substations, switchyards |
4. Product Introduction (Anti-Template)
When a substation bay requires integrated control, protection, and monitoring in a single device, the REC670 provides the solution. It belongs to the Relion 670 series and is designed for high-voltage and medium-voltage switchyards.
The IED performs apparatus control (breakers, disconnectors, earthing switches) using the select-before-operate principle for maximum security. It supports station-wide interlocking via GOOSE messages and communicates vertically with SCADA or station HMIs using IEC 61850 MMS. Protection functions cover overcurrent, voltage, thermal, frequency, and autoreclose requirements. One REC670 can manage a complete diameter in a 1½-breaker arrangement or multiple feeders, reducing the number of devices needed in the control house.
ABB REC670
5. QC, Procurement & Logistics SOP
- Inbound Verification – Confirm full model marking (REC670), hardware version, configuration package (A30/B30/C30 etc. if applicable), serial number, and connector condition. Photograph all labels.
- Live Rig Testing – Apply auxiliary power, verify HMI boot, basic binary I/O response, and communication ports (Ethernet/serial). Full functional testing requires application-specific configuration.
- QA & Anti-Static Packaging – After inspection, protect all connectors and the front HMI, clean the unit, and seal in protective packaging with desiccant.
- Global Logistics & Export Compliance – Classify under the correct HS code for protection and control relays. Packaging must protect against shock and electrostatic discharge; export documentation is prepared to minimize customs delays.
ABB REC670
ABB REC670
6. Technical Pitfalls & Integration Warnings
Configuration Matching – REC670 is available in pre-configured and customized variants. Installing a unit with the wrong function package or firmware version will not meet the application requirements.
IEC 61850 Engineering – Proper GOOSE and MMS configuration is essential for station interlocking and SCADA integration. Incomplete engineering can leave the system without interlocking or remote control.
CT/VT and Binary Wiring – Incorrect analog or binary connections can cause false trips or failed control operations. Always verify wiring against the specific IED configuration.
Cyber Security Settings – Modern versions include cyber-security features. Leaving default passwords or open ports creates unnecessary risk.
7. Frequently Asked Questions (FAQ)
What is the realistic global lead time for a verified REC670?
Lead time depends on the exact hardware and software configuration. Stock units typically ship within 5–15 business days after verification; custom configurations take longer.
What is the main purpose of the REC670?
Bay control, protection, and monitoring of switchgear in power network substations.
Which communication standard does it support?
IEC 61850-8-1 (Ed1 and Ed2), including GOOSE and MMS. Redundant protocols such as PRP and HSR are available.
Can one control multiple bays?
Yes. Depending on the configuration, a single IED can handle control and protection for multiple bays or a complete diameter in a 1½-breaker arrangement.
Is it part of the Relion family?
Yes. belongs to the ABB Relion 670 series of Intelligent Electronic Devices.
Does it include protection functions?
Yes. It includes a comprehensive set of protection functions (overcurrent, voltage, thermal, frequency, autoreclose, synchrocheck, etc.) in addition to control capabilities.
What should be confirmed before ordering a replacement?
Exact hardware version, firmware version, configuration package (pre-configured or customized), and the required communication and I/O options.
