ABB 216VC62A | Control or Relay Module, New Original

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

3. Key Technical Specifications

Do not order against this table alone. I cannot confirm the module type, channel count, or electrical ratings from the model number. Match every line against the OEM datasheet and the label on your existing unit.

4. Product Introduction

The ABB 216VC62A is an ABB legacy component whose exact function I cannot confirm from the model number alone. The 216VC designation appears in ABB’s older relay and control module lines, but I cannot tell you whether this is a protection relay, a control module, or an interface card. I am not going to guess.

Here is what I can tell you as a straight answer: on legacy ABB hardware of this generation, compatibility is panel-specific and often revision-specific. A module that fits one relay panel may not function correctly in another if the setting range, the auxiliary voltage, or the terminal arrangement varies. Before you order, read the label on the existing unit and cross-reference it against the OEM datasheet for your system. If you send me a photo of the part and the panel it came out of, I will confirm what you are looking at.

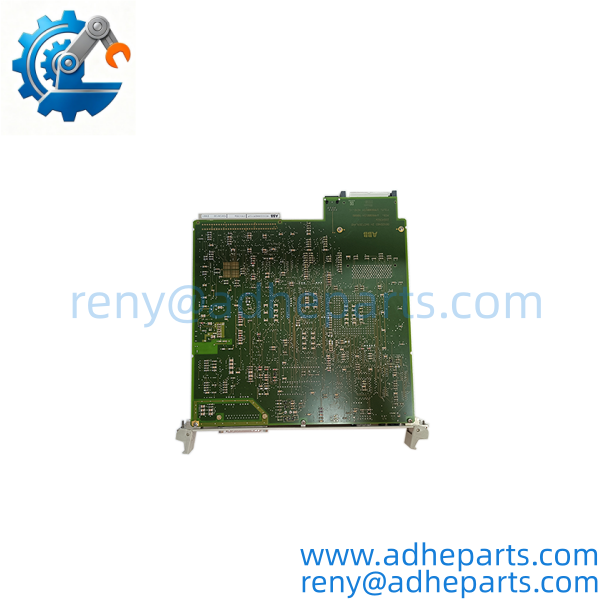

216VC62A

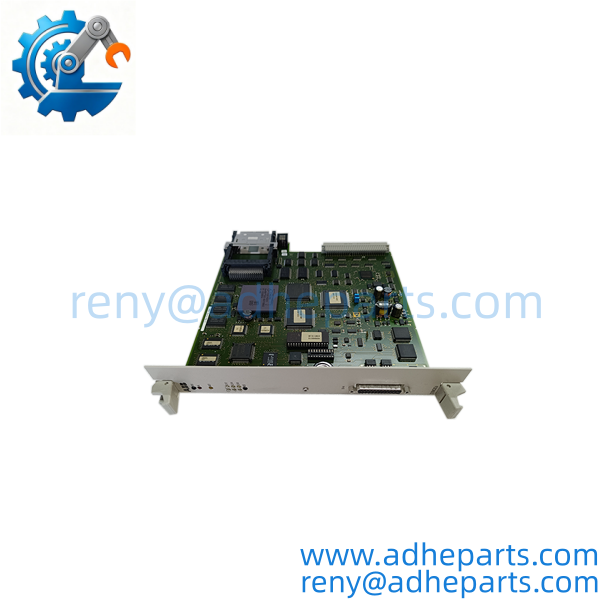

216VC62A

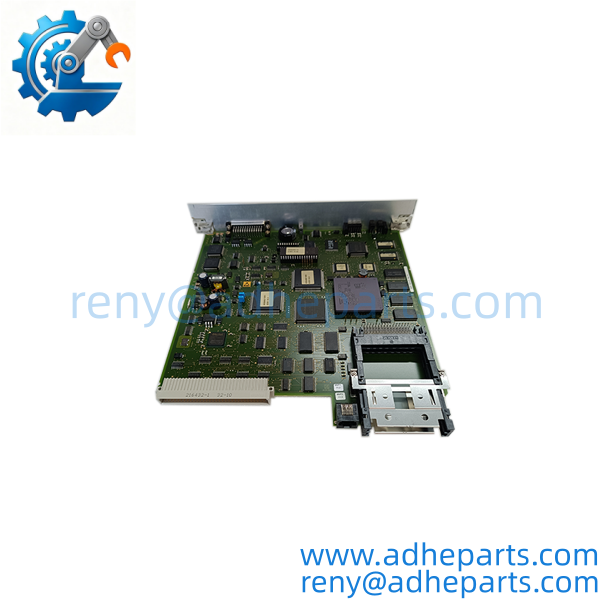

216VC62A

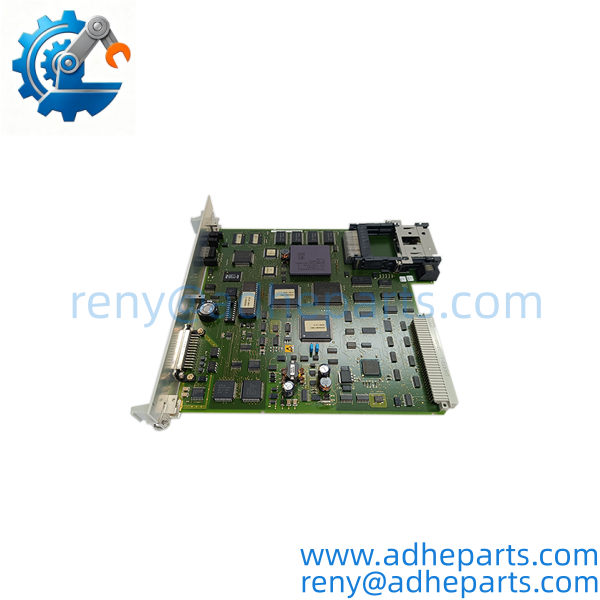

216VC62A

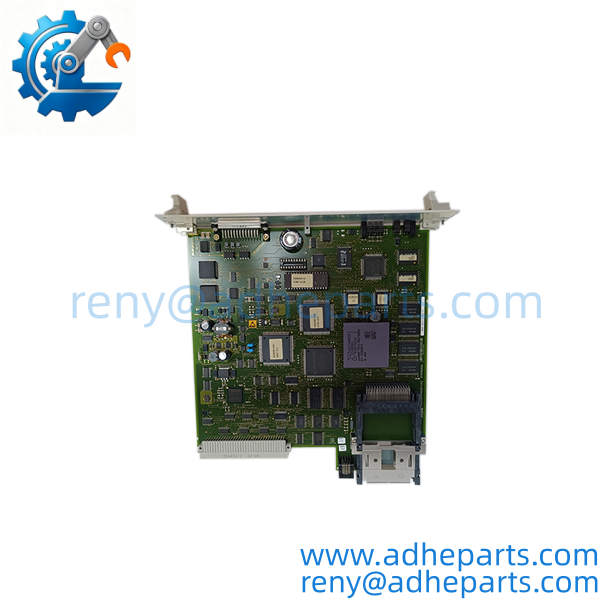

216VC62A

5. Application Scenarios & Field Experience

Part 1 – Narrative Paragraph

The failure that costs the most on a legacy ABB module is a mismatched revision that passes a bench check and still fails in the panel. I have seen a plant replace a protection module with a newer revision and then chase a “false trip” for a week. The module was fine. The setting range or the auxiliary voltage had changed between revisions, and the panel wiring no longer matched the module’s configuration. On ABB hardware of this generation, the revision suffix is not a cosmetic detail — it governs the setting range, the terminal arrangement, and sometimes the auxiliary voltage. That is the rule that matters more than any single specification on the datasheet.

Part 2 – Numbered List (Application Scenarios)

1. Power Generation – Legacy Protection Panels – The module is used in an ABB protection or control panel for generator, transformer, or feeder protection. A mismatched revision causes false trips or a failure to trip, and the operator loses confidence in the protection scheme.
2. Oil & Gas – Compressor Station Control – Used to condition or switch signals from field instruments or to provide protection for rotating equipment. The module must match the panel’s auxiliary voltage and the field device’s signal range.
3. Water Treatment – Pump and Motor Protection – The module provides protection or control for pump motors. A failed module shows up as a nuisance trip or a non-responsive circuit on the operator station.
4. Industrial Plants – Legacy Panel Retrofit – Used where an ABB control or protection panel is still in service and the OEM no longer stocks the exact revision. Replacement is often the only path short of a full panel upgrade.

Part 3 – Short Field Story

A power plant had a legacy ABB protection panel on a transformer bay that started logging intermittent “protection fault” alarms. The crew had replaced the field CT and the wiring. The fault kept coming back. We asked for the module revision before shipping anything. It turned out the replacement module the plant had installed months earlier was a different revision than the original — same base part number, different suffix. The setting range and the auxiliary voltage did not match the panel, and the fault only appeared under load. We supplied a matching revision, and the alarms stopped. The hardware had been fine — the revision was wrong.

6. Standard Operating Procedure (SOP) for Quality Control

• Visual & Origin Inspection – We verify the ABB marking, the 216VC62A model string, and the date code. We inspect connectors, terminals, and the housing for cracks, corrosion, or moisture ingress. A module with a damaged terminal or evidence of rework is rejected.
• Part Number and Revision Documentation – We read and photograph the full part number, the revision suffix, and any serial number or date code. We also record the setting range and the auxiliary voltage from the module label. That record ships with the module so you can compare it against the unit you are replacing.
• Compatibility Cross-Check – We verify the part number against the OEM documentation for the system you specify. A module that does not match the requested application is set aside rather than shipped.
• Power-Up Self-Test – The module is powered on a bench fixture at the specified auxiliary voltage. We verify it initializes without a fault and that the status indicators show normal operation.
• Function Verification – For protection modules, we verify the pickup and dropout at the configured settings against the OEM specification. For control modules, we verify the switching function and the signal path.
• Isolation Test – We apply the rated isolation voltage between circuits and between a circuit and ground. Leakage current must stay below the datasheet limit.
• ESD-Safe Packaging – The module is wrapped in anti-static film, seated in a conductive foam insert with the connectors protected, and packed in a double-wall carton with static warning labels.

7. Frequently Asked Questions (FAQ)

Q1: What is the function of the ABB 216VC62A?

A: I cannot confirm the exact function from the model number alone. The 216VC designation appears in ABB’s legacy relay and control module lines, but I cannot tell you whether this is a protection relay, a control module, or an interface card. Send us a photo of the label and the panel it came out of, and we will confirm it against the OEM documentation before you order.

Q2: Is this module compatible with all ABB protection panels?

A: No. ABB hardware of this generation is panel-specific and often revision-specific. A module that fits one panel may not function correctly in another if the setting range, auxiliary voltage, or terminal arrangement varies. Confirm compatibility against your panel’s documentation before ordering.

Q3: What is the warranty on this module?

A: We offer a 12-month warranty from the ship date. It covers manufacturing defects under normal operating conditions. It does not cover damage from incorrect installation, mechanical impact, or operation beyond the rated range. For electrical components, the warranty is void if the part shows evidence of overvoltage or reversed polarity. Every module ships with a test report where applicable.

Q4: Do you actually have this in stock?

A: This is legacy inventory, and I will not pretend otherwise. Stock on ABB modules of this class varies by revision, and the exact suffix you need may not be on the shelf. Confirm availability before you plan an outage. If we are out, we will tell you what we actually have rather than quote a date we cannot hold.

Q5: Any installation pitfalls I should watch for?

A: Four. First, power down the panel and isolate the auxiliary supply before inserting or removing the module. Second, record the revision suffix, the setting range, the auxiliary voltage, and any jumper or switch settings from the old module before you remove it; these are not always documented elsewhere. Third, confirm the revision and ratings on the replacement match the module you are removing. Fourth, after the swap, verify the module functions correctly in the circuit — for protection modules, test the trip output before you return the system to service. A module that powers up is not necessarily functioning correctly.
