Product Introduction (Anti-Template)
For a legacy medium-voltage switchgear installation, the protection relay is not simply another replaceable electronic module. The ABB REF543KB127AAAA is a complete REF 543 feeder protection and control terminal designed to combine protection, measurement, switching control, condition monitoring, communication, and programmable automation functions in one device. ABB identifies the REF 543 for medium-voltage feeder applications, including different busbar arrangements and several neutral-grounding configurations.
The B functionality level is particularly important: ABB defines it as including control, condition monitoring, and measurement functions together with basic protection functions. The 127 hardware configuration uses conventional current and voltage transformer interfaces and a defined I/O arrangement, making the complete ordering code more important than simply matching “REF 543.”

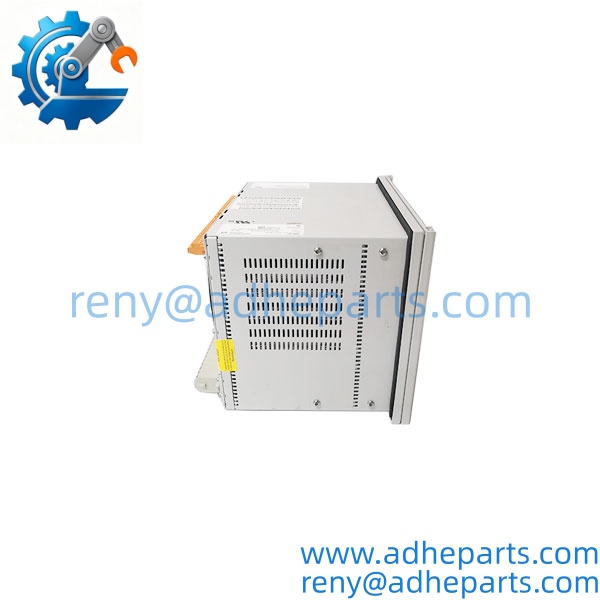

REF543KB127AAAA

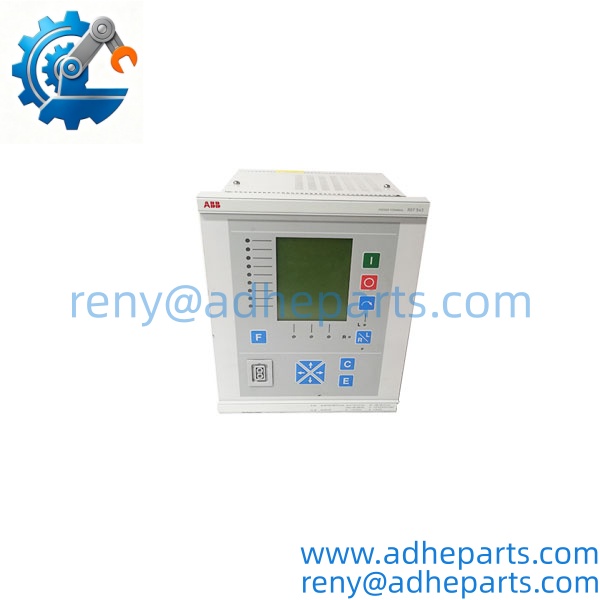

REF543KB127AAAA

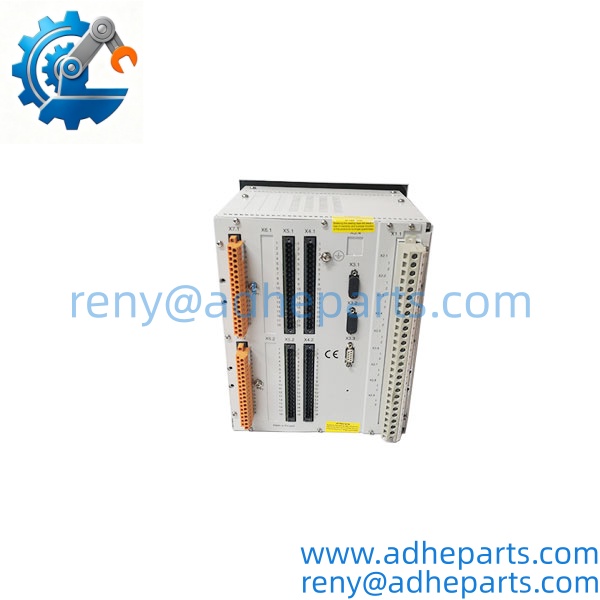

REF543KB127AAAA

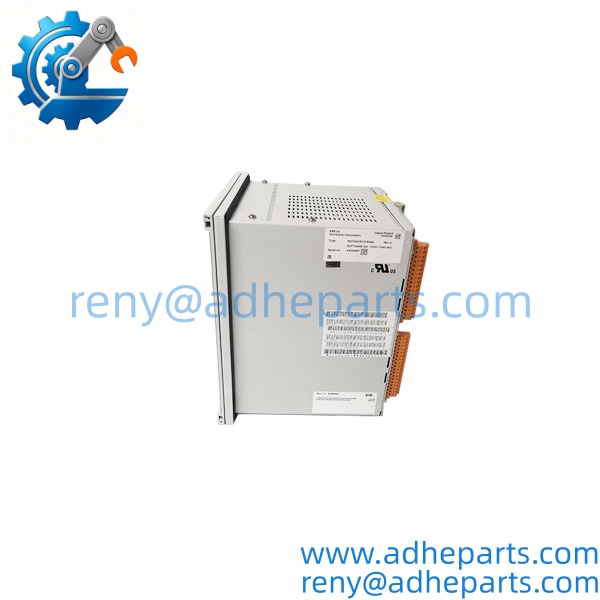

REF543KB127AAAA
REF543KB127AAAA
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product Family | REF 54 |
| Model | REF543KB127AAAA |
| Terminal Type | REF 543 Feeder Protection and Control Terminal |
| Functionality Level | B — Basic |
| Hardware Version | 127 |
| Current Transformer Inputs | 4 × 1/5 A CT inputs |
| Additional Current Input | 1 × 0.2/1 A CT input |
| Voltage Transformer Inputs | 4 × 100 V VT inputs |
| Digital Inputs | 25 |
| Single-Pole Power Outputs | 2 |
| Double-Pole Power Outputs | 9 |
| Signal Outputs, NO | 2 |
| Signal Outputs, NO/NC | 5 |
| Trip Circuit Supervision | 2 supervised circuits |
| Self-Supervision / IRF Output | 1 |
| Enclosure | 1/2 of 19-inch rack |
| Display | Integrated graphical HMI configuration |
The ABB hardware table identifies these I/O and transformer-interface characteristics for the REF 543 hardware configurations.
Field Application & Technical Pitfalls (The Engineer’s Guide)
Application 1 — Medium-Voltage Feeder Protection
REF 543 terminals are intended for medium-voltage distribution feeders where protection and control functions need to be integrated into the switchgear protection architecture. ABB lists applications covering single-busbar, double-busbar, and duplex switchgear arrangements, as well as isolated-neutral, resonant-earthed, and partially earthed networks.
Application 2 — Feeder Measurement and Control
The terminal can process current and voltage measurements from conventional instrument transformers and provide measurement, control, condition-monitoring, and automation functions. The REF 54 platform also includes programmable logic, allowing sequence and automation functions to be implemented inside the protection terminal rather than through additional external control hardware.
Application 3 — Substation Automation and Communication
Depending on the installed configuration, the REF 543 family supports communication through protocols including SPA, LON, IEC 60870-5-103, DNP 3.0, and Modbus. IEC 61850 can be supported through the SPA-ZC 400 adapter, while PROFIBUS DPV1 can be supported through the SPA-ZC 302 adapter.
Pitfall 1 — Do not match REF 543 by family name alone.
The complete order number identifies the terminal type, hardware, and software configuration. ABB explicitly states that different hardware versions have different numbers of transformer inputs, sensor inputs, analog I/O, digital I/O, and auxiliary-voltage arrangements.
Pitfall 2 — The “B” in the order number matters.
REF543KB127AAAA is not simply a cosmetic suffix. ABB defines B as the Basic functionality level, which includes basic protection functions in addition to control, condition monitoring, and measurement functions. A terminal with a different functionality level should not be assumed equivalent.
Pitfall 3 — Verify the auxiliary supply and digital-input voltage.
REF 543 terminals were available with different PS1 power-supply versions. The 240 V version supports 110/120/220/240 VAC or 110/125/220 VDC, while the 48 V version supports 24/48/60 VDC; the digital-input threshold is tied to the selected power-supply version. Do not connect a replacement based only on physical fit.
Pitfall 4 — Software revision can affect interchangeability.
ABB states that the revision letter in the order number identifies the main product release and that different releases can contain functional additions or changes. When replacing an installed REF 543, compare both the order number and software information on the marking strip.
Field lesson: A maintenance department may have two REF 543 terminals that look nearly identical but differ in functionality, hardware configuration, or auxiliary-voltage arrangement. For a protection relay, that difference can remain invisible until commissioning. Matching the complete ordering code and installed configuration before shipment is therefore far more useful than relying on the REF 543 family number alone.
Quality Control (QC) SOP & Transparency
- Full Model Verification — Confirm the complete identification as REF543KB127AAAA rather than accepting “REF 543” as sufficient.
- Nameplate Inspection — Photograph the front marking strip, order number, software number, serial information, and rating information.
- Hardware Configuration Check — Verify the 127 hardware version and compare the physical terminal arrangement with the required CT, VT, I/O, and power-supply configuration.
- HMI Inspection — Check the display, keypad/buttons, LEDs, and front-panel condition for damage or abnormal wear.
- Connector Inspection — Inspect rear connectors, terminal blocks, communication interfaces, and mounting points for bent contacts, corrosion, or mechanical damage.
- Protection Configuration Review — Where customer documentation is available, compare the required protection and control functions with the functionality level of the supplied unit.
- Power-Up Testing — Apply the appropriate auxiliary supply in a controlled test environment and verify startup, display operation, self-supervision, and diagnostic indications.
- I/O Verification — Where the required test equipment is available, verify representative digital input, output, measurement, and communication functions.
- Final QA Record — Record the complete model, visible revision information, physical condition, test results, and photographs before packing.
- ESD-Safe Packaging — Protect the relay against electrostatic discharge, impact, vibration, and moisture during transportation.
FAQ
Q1: What is the ABB REF543KB127AAAA?
It is an ABB REF 543 medium-voltage feeder protection and control terminal used for protection, measurement, control, supervision, and feeder automation.
Q2: What does the “B” mean in REF543KB127AAAA?
It identifies the Basic functionality level. ABB defines this level as providing control, condition monitoring, and measurement functions together with basic protection functions.
Q3: What is the 127 hardware version?
It identifies a specific REF 543 hardware configuration. The associated configuration includes conventional CT/VT interfaces and a defined digital and output I/O arrangement.
Q4: Can another REF 543 replace REF543KB127AAAA?
Not automatically. The functionality level, hardware version, auxiliary supply, digital-input voltage, transformer inputs, I/O configuration, and software revision should all be checked before approving a substitute.
Q5: Does REF 543 support communication protocols?
Yes. Depending on the configuration and communication adapter, the REF 54 platform supports SPA, LON, IEC 60870-5-103, DNP 3.0, and Modbus. IEC 61850 and PROFIBUS DPV1 are supported through specified external communication adapters.
Q6: Is the still a current ABB product?
ABB currently lists the REF 543 as a legacy product that has not been active since 2022. This makes exact-part-number sourcing and condition verification particularly relevant for existing switchgear installations.
Q7: What should I provide when requesting this relay?
Provide the complete order number, clear photos of the front marking strip and rear connections, software number if available, and the installed relay’s power-supply rating. For a replacement project, the existing protection settings or configuration information is also useful.
