ABB PM783F 3BDH000364R0002 Controller CPU

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

Key Technical Specifications

ABB’s documentation identifies 3BDH000364R0002 specifically as the PM 783F Rev. B CPU Module. The same ABB documentation gives a 96 MHz hardware frequency, 10 MB memory, 300 maximum I/O, 8 direct I/O modules, 24 V DC supply, and 0°C to +60°C operating temperature.

The current ABB hardware selector lists PM 783F under article number 3BDH000364R0005, but the requested R0002 is documented as the earlier Rev. B version. Do not automatically substitute R0005 for R0002 without checking the customer’s system and software requirements.

Product Introduction — Anti-Template

The ABB PM783F 3BDH000364R0002 is a compact CPU module designed for ABB Freelance automation systems. As the central processor of an AC 700F controller, it handles control execution, task management, communication, and interaction with the connected I/O architecture. ABB documentation rates the PM 783F at 96 MHz and gives it capacity for up to 300 I/O.

This is a controller CPU, not simply an I/O expansion card. For replacement work, the exact Rev. B / R0002 identification matters, along with the Freelance software version, terminal base, battery arrangement, and application configuration. Matching the hardware alone does not guarantee that the existing application can be restored without additional commissioning.

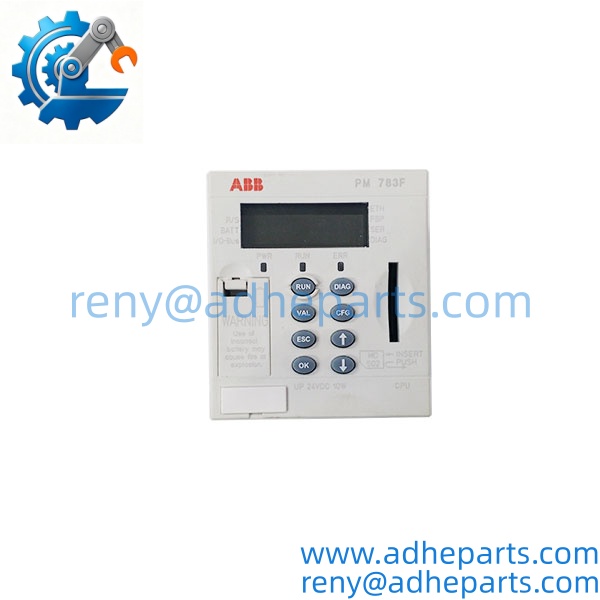

PM783FB0

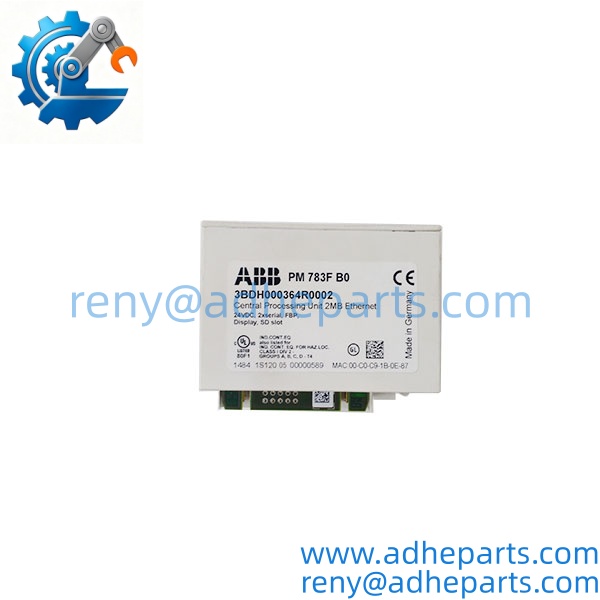

PM783FB0

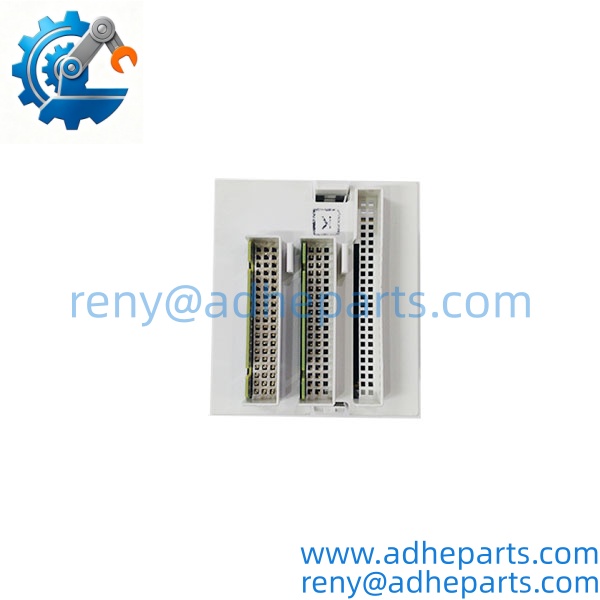

PM783FB0

QC, Procurement & Logistics SOP

1) Inbound Verification

For each PM783F, verify:

• ABB manufacturer marking
• PM 783F designation
• Complete part number 3BDH000364R0002
• Rev. B identification
• Serial number
• PCB and housing condition
• Connector condition
• Front-panel display/key condition, if fitted
• Battery condition
• Evidence of previous repair or modification

For a CPU module, photograph the nameplate and front/rear interfaces before putting the unit into inventory.

2) Functional / Live Rig Testing

Where a compatible ABB Freelance test environment is available, verify:

• Controller power-up
• CPU initialization
• Status and diagnostic display
• Ethernet communication
• Serial communication
• I/O bus communication
• Controller diagnostics
• Application loading/recognition where permitted
• Stable operation under representative load

ABB specifies an on-board Ethernet connection and serial interface functions for the PM 783F.

Do not assume that a CPU which powers on is fully functional. Communication and I/O-bus tests are particularly useful for a replacement controller.

3) QA & ESD Packaging

The PM783F should be handled as an ESD-sensitive control PCB:

• Use an ESD-safe workstation.
• Avoid touching PCB contacts directly.
• Inspect connectors for oxidation or bent pins.
• Check the backup battery condition.
• Place the CPU in an antistatic bag.
• Protect the front panel and connectors from impact.
• Use shock-absorbing material inside the carton.

For new-surplus units, retain photographs of original labels and packaging where available.

4) Global Logistics & Export Compliance

Before shipment, confirm:

• Destination country
• Incoterm
• New/used/surplus declaration
• Customs description
• HS classification
• COO/COC requirements
• Required delivery date
• Software/application requirements if the customer expects a configured replacement

ABB-related product data lists 85371091 as the customs tariff reference for this CPU module. Final classification should be checked against the destination country’s customs requirements.

5) Secure Air/Sea Packaging

Recommended packing:

1. Antistatic ESD bag
2. Moisture protection where required
3. Connector/front-panel protection
4. Shock-absorbing inner packaging
5. Rigid carton
6. Reinforced outer carton
7. Commercial invoice and packing list
8. Tracking information after dispatch

For one CPU module, air express is normally practical when the customer’s plant requires an urgent replacement.

Technical Pitfalls & Integration Warnings

1) Verify the exact revision: R0002 vs. later versions.
The requested unit is 3BDH000364R0002, PM 783F Rev. B. ABB’s current hardware selector lists a PM 783F article number ending in R0005, so a later catalog version should not automatically be treated as a direct substitute for the customer’s Rev. B hardware.

2) Software version matters.
The PM783F operates within the ABB Freelance software environment. Third-party product documentation states that Freelance software version 9.2 SP2 or higher is required for this hardware family. Confirm the customer’s existing engineering software and project version before replacement.

3) The CPU does not arrive with the customer’s application simply because the hardware matches.
A replacement CPU may require the appropriate operating system/firmware and application download. The customer should have a valid backup of the Freelance project and the required engineering tools before performing a CPU replacement.

4) Check the terminal base and battery arrangement.
The PM783F is used with the associated Freelance mounting/base hardware. Product documentation identifies TB 711F and TA 521 as associated components.

5) Do not confuse PM783F with a redundant controller.
ABB’s documentation identifies PM 783F as non-redundant, while larger Freelance CPUs such as PM 901F/PM 902F provide different redundancy capabilities.

6) Back up the application before replacement.
A CPU replacement is not merely a hardware swap if the original controller contains the customer’s application configuration. Preserve the existing project, controller configuration, communication settings, and relevant firmware information before removing the installed CPU.

Frequently Asked Questions

Q1: What is ABB 3BDH000364R0002?
It is an ABB PM 783F Rev. B CPU Module for the Freelance / AC 700F automation system. It functions as the central processing unit of the controller.

Q2: What processor does the use?
ABB documentation specifies a 96 MHz processor for the PM 783F and identifies the processor type as PowerQUICC.

Q3: How much memory does have?
The documented configuration provides 10 MB total memory, including 2 MB RAM available for applications.

Q4: How many I/O points can support?
ABB documentation specifies a maximum of 300 I/O and up to 8 direct I/O modules for the PM 783F.

Q5: What power supply does require?
The PM 783F uses an external 24 V DC power supply. ABB’s documentation also specifies a lithium backup battery arrangement.

Q6: Can I replace 3BDH000364R0002 with another ?
It depends on the exact revision and system configuration. The customer’s original R0002 / Rev. B should be compared with the proposed replacement, especially regarding firmware, software version, terminal base, and application compatibility.

Q7: Can the be tested before shipment?
Yes, when a suitable Freelance test environment is available. Recommended checks include power-up, CPU initialization, diagnostics, Ethernet communication, serial communication, and I/O-bus operation.

Q8: What should I provide if I need an exact replacement check?
Provide a photo of the installed nameplate, the complete part number, revision marking, terminal base, and the surrounding AC 700F modules. This allows the replacement to be checked at the system level rather than by model number alone.
