Description
Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.
3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 810-370141-001 |
| Manufacturer | Lam Research (LAM) |
| Description | ASSY, PCB, INTLK, STANDARD |
| Product Type | Printed Circuit Board Assembly – Interlock |
| Primary Function | Safety / system interlock circuitry |
| Application Domain | Lam Research semiconductor processing tools |
| Form | PCB assembly |
4. Product Introduction (Anti-Template)
The Lam Research 810-370141-001 is a standard interlock PCB assembly used in Lam semiconductor processing equipment. Interlock boards form part of the safety and control architecture that monitors door, chamber, or subsystem status and prevents unsafe operation when conditions are not met.
These boards are tool-specific components. They interface with sensors, switches, and the main control system to enforce interlock logic. Because Lam Research equipment is highly integrated and process-critical, the correct revision of the interlock board must be matched to the specific tool platform and configuration. Public technical details beyond the basic description are limited, as the design is proprietary.

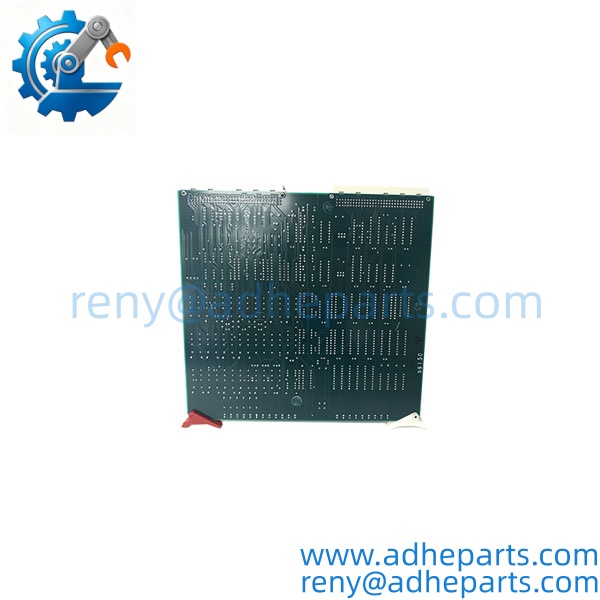

810-370141-001

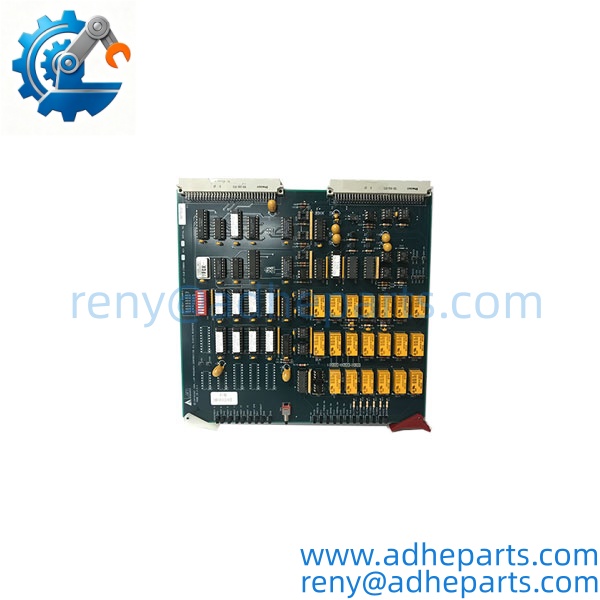

810-370141-001

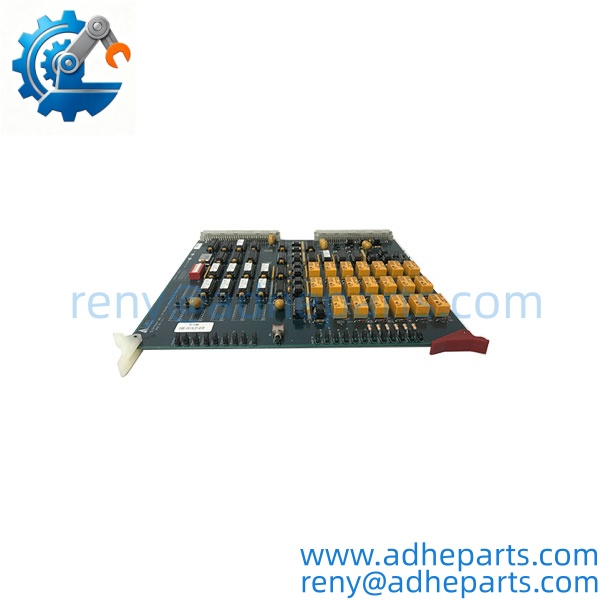

810-370141-001

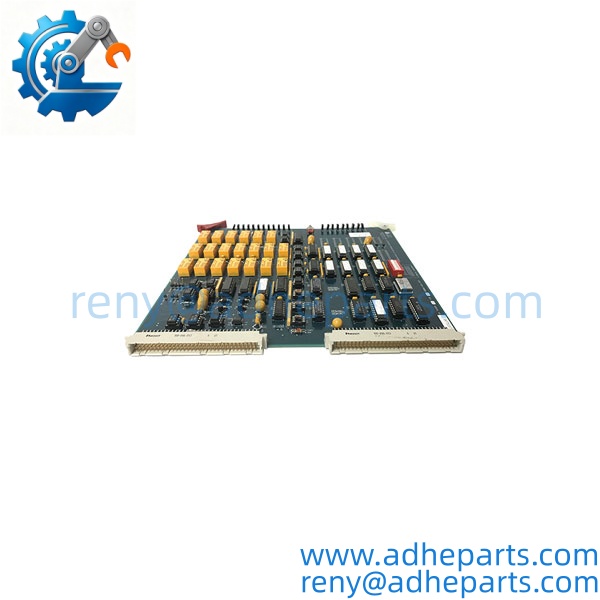

810-370141-001
5. QC, Procurement & Logistics SOP
- Inbound Verification – Confirm the complete part number (810-370141-001), any revision markings, and physical condition of connectors and components. Photograph all labels.
- Visual Inspection – Check for damaged traces, bent pins, contamination, or missing components. Full functional testing normally requires installation in the matching Lam tool.
- QA & Packaging – Clean according to semiconductor handling practices, protect connectors, and pack in anti-static / cleanroom-compatible packaging.
- Global Logistics & Export Compliance – Classify under the correct HS code for semiconductor equipment parts. Packaging must meet cleanroom and electrostatic discharge requirements; export documentation is prepared to minimize customs delays.
6. Technical Pitfalls & Integration Warnings
Tool-Specific Compatibility – Interlock boards are not interchangeable across different Lam platforms or even different configurations of the same tool family. Verify exact applicability.
Revision Control – Using an incorrect revision can disable interlocks or cause false trips, preventing the tool from running.
ESD and Contamination – Handle only with proper ESD protection and cleanroom protocols. Particles or static damage can compromise reliability.
Safety System Impact – Because this is an interlock board, incorrect installation or a faulty board can lock out the tool or create a safety risk. Follow all lockout/tagout and tool safety procedures during replacement.
7. Frequently Asked Questions (FAQ)
What is the realistic global lead time for a verified 810-370141-001?
As a proprietary Lam Research part, availability depends on surplus stock. Typical lead time after verification is 5–20 business days plus specialized shipping.
What is the function of the 810-370141-001?
It is a standard interlock PCB assembly (ASSY, PCB, INTLK, STANDARD) used in Lam Research tools.
Is detailed public documentation available?
No. Detailed schematics and specifications are proprietary and found only in official Lam Research tool documentation.
Can it be used in non-Lam equipment?
No. These boards are designed exclusively for Lam Research systems.
How can I confirm the correct part for my tool?
Cross-reference the full part number against the Lam Research bill of materials or parts list for the specific tool serial number and configuration.
Is it still supported?
Support depends on the age of the parent tool platform. Many older Lam parts remain available through surplus and specialist channels.
What should be confirmed before ordering a replacement?
Exact part number including any revision, the Lam tool model and serial number, and the subsystem in which the interlock board is used.
