GE IS200VCRCH1BBC | 48-Input 24-Relay Output Industrial Turbine Signal Processing Unit

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

Product Introduction

When your GE Mark VI gas/steam turbine control system needs ultra-reliable excitation voltage regulation and discrete signal processing performance to ensure the stable operation of the power generation unit, this board acts as the core control and signal management hub between the turbine excitation system and the Mark VI main control unit.
It features 32-bit high-speed microprocessor architecture that delivers fast 25ms-level response performance, supporting precise excitation voltage regulation for turbine generators. Its built-in optical isolators on all signal ports effectively suppress industrial electromagnetic interference, ensuring long-term stable operation in harsh power plant environments. The compact industrial-grade PCB design fits perfectly into the standard VME I/O rack slot of the Mark VI system, no extra cabinet modification work required.

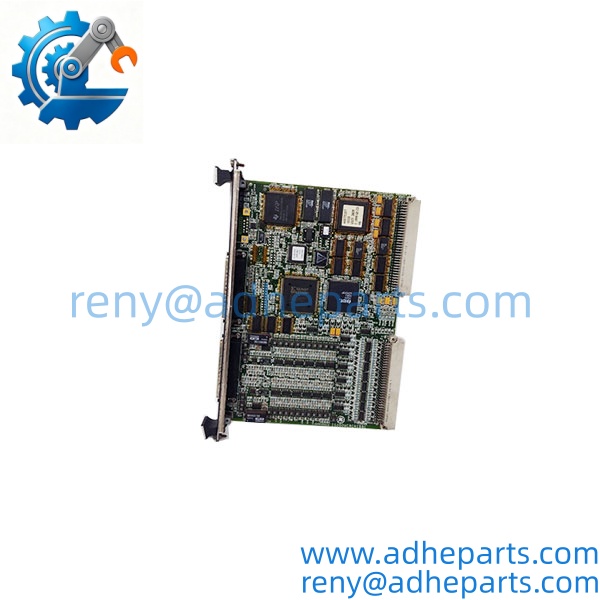

IS200VCRCH1BBC

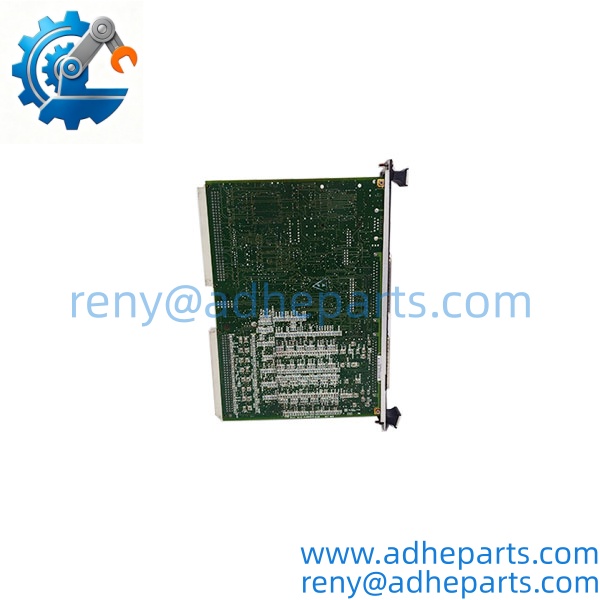

IS200VCRCH1BBC

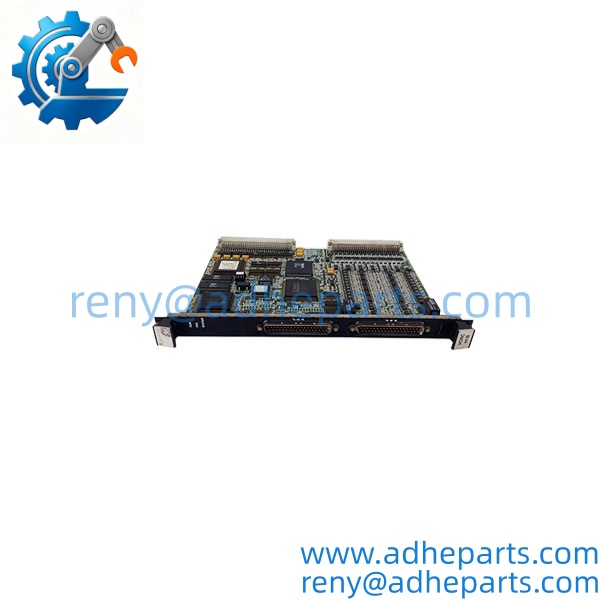

IS200VCRCH1BBC

Key Technical Specifications

Field Application & Technical Pitfalls

Critical Industrial Scenarios

• **Thermal Power Plant Steam Turbine Excitation Control: Acts as the core voltage regulation and signal processing unit for GE Mark VI steam turbine excitation systems, precisely adjusting the generator excitation current, ensuring the generator outputs stable voltage and meets grid-connected operation requirements.
• **Large Gas Turbine Power Generation Unit Control: Delivers reliable discrete signal management and excitation regulation performance for large industrial gas turbine Mark VI control systems, supporting the unit to quickly respond to grid load changes and maintain power grid frequency stability.
• **Industrial Cogeneration Turbine System Control: Adapts to industrial cogeneration plant environments, providing stable excitation control and signal processing for steam turbine generator sets, ensuring continuous and reliable power and heat supply for industrial production.

Non-Negotiable Technical Pitfalls

• ‌⚠️ Bold Warning 1‌: Never perform AC/DC cross-connection on signal ports arbitrarily. The third MOV protection component will experience overvoltage breakdown that causes permanent damage to the corresponding signal channel.
• ‌⚠️ Bold Warning 2‌: Skipping the pre-commissioning full 48-input/24-output signal loop test will leave you with hidden signal dead zones. This unit must confirm all discrete I/O points can be correctly identified and operate normally before putting into operation.
• ‌⚠️ Bold Warning 3‌: Do not install the board without tightening the captive screws on both sides. Severe vibration in the power plant site will cause the board to loosen from the VME backplane, resulting in unexpected excitation system loss of control.

A thermal power plant maintenance team once swapped an IS200VCRCH1BBC board and skipped the full I/O loop test. The hidden unrecognized excitation regulation feedback signal caused the generator excitation to lose stability, resulting in a 1.5-hour unit off-grid accident that affected regional power supply stability.

Quality Control (QC) SOP & Transparency

1. ‌Inbound Verification‌: Cross-check the OEM serial number against GE’s official Mark VI part registry, confirm the part number IS200VCRCH1BBC matches the factory label, and inspect no bent pins or corrosion on all VME backplane and J3/J4 connectors.
2. ‌Live Rig Testing‌: Power the unit in a calibrated GE Mark VI system test rack, apply standard industrial power supply, and confirm full 2-hour continuous stable signal processing operation.
3. ‌Parameter Testing‌: Verify all 48 digital inputs and 24 relay outputs operate correctly, confirm 25ms fast response performance meets factory specifications, and validate all status LED indicators function properly.
4. ‌Final QA & Packaging‌: Seal the tested board in a static-shielding anti-static bag, attach a unique QC passed serial label, and nest it in foam padding inside a rigid industrial shipping carton.

Frequently Asked Questions (FAQ)

• ‌Can I hot-swap this board while the Mark VI turbine system is running?‌ No. You must first place the turbine excitation system in manual backup control mode and confirm the unit is in safe operating state before removing the unit, otherwise you will trigger unexpected excitation loss risks.
• ‌What exact systems is this board compatible with?‌ It works natively with GE Mark VI gas/steam turbine control systems. It will not operate correctly with non-Mark VI GE control platforms without custom hardware adaptation.
• ‌How long is the standard warranty for this new surplus unit?‌ 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by miswiring, overvoltage, or improper installation in the field.
• ‌How do I tell a genuine OEM unit apart from a refurbished clone?‌ Genuine GE IS200VCRCH1BBC boards have a laser-etched part number on the PCB, not a printed sticker. Clone units almost always fail the full 48-input/24-output signal loop performance test.
• ‌What is the typical lead time for shipment?‌ In-stock units ship within 48 hours. If you require official GE factory performance test documentation, add 2 extra business days to the turnaround window.
• ‌Can this board replace the older Mark VI legacy VCRC control board unit?‌ Well, technically it fits the same VME I/O rack slot footprint, but you will need to reconfigure the corresponding excitation regulation parameters in the Mark VI control system software to unlock the full high-precision voltage regulation performance.
