Product Introduction
When your GE heavy-duty or aeroderivative turbine control system needs ultra-reliable field signal connection that eliminates single-point failure risks, this terminal board acts as the core physical interface between all field digital signals and the Mark V redundant processor system.
It is designed for Triple Modular Redundant (TMR) configurations, replicated across all three control lanes to feed identical field data to redundant processor cards such as DS200TCCG1A. This architecture ensures that a single wiring fault or contact failure cannot cause an unintended turbine trip or missed alarm, perfectly meeting the strict functional safety requirements of mission-critical power generation applications. It has decades of proven field reliability across thousands of GE turbine installations worldwide.

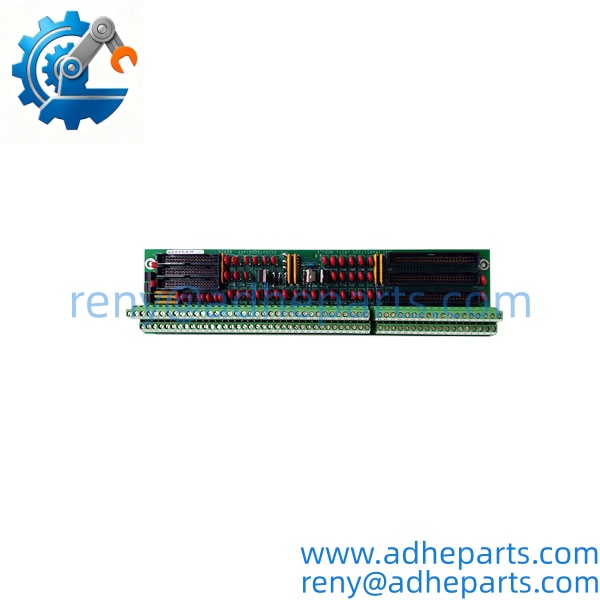

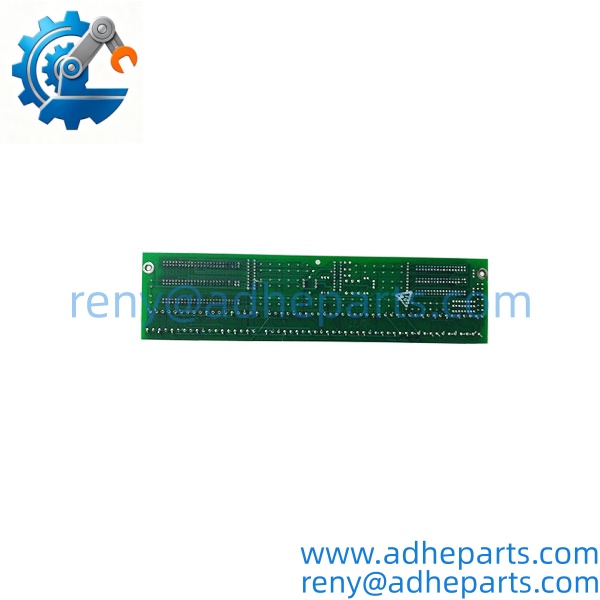

DS200TBQDG1AFF

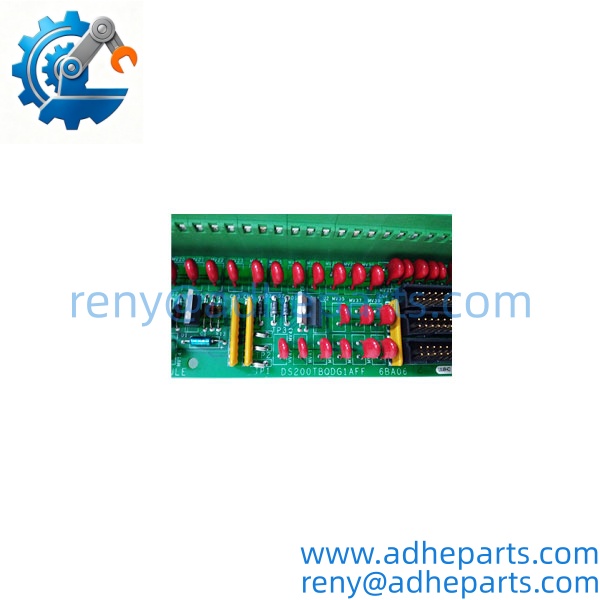

DS200TBQDG1AFF
DS200TBQDG1AFF
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | DS200TBQDG1AFF |
| Product Type | TBQD Series High-Density Digital I/O Terminal Board |
| Compatible System | GE Mark V Turbine Control System |
| Safety Standard Compliance | IEC 61508 SIL 2/3 functional safety certified |
| Architecture Support | Triple Modular Redundant (TMR) 3-lane control configuration |
| Supported Turbine Platforms | GE Frame 6B, 7EA, 7FA, 9E heavy-duty turbines, LM6000 aeroderivative turbines |
| Installation Method | Standard GE Mark V system rack slot plug-in mounting |
| Operating Temperature Range | 0°C ~ +60°C |
| Application Scenarios | Utility power plants, industrial cogeneration, oil & gas pipeline turbine control |
| Net Weight | ~0.98 kg |
| Protection Rating | IP20 when fully installed in the control cabinet |
Field Application & Technical Pitfalls
Critical Industrial Scenarios
- **Utility Power Plant Gas Turbine Control: Acts as the core digital signal interface unit for large utility gas turbine Mark V control systems, collecting all field limit switches, pressure switches and actuator feedback signals, ensuring the turbine control system can accurately monitor the operating status of all equipment.
- **Industrial Cogeneration Steam Turbine Control: Delivers stable redundant signal connection for industrial cogeneration steam turbine control systems, preventing unexpected turbine trips caused by single-point signal contact failure, ensuring continuous and reliable power and heat supply for industrial production.
- **Oil & Gas Pipeline Turbine Compressor Control: Adapts to remote field harsh operating environments, providing reliable TMR redundant digital signal interface for large turbine-driven natural gas pipeline compressors.
Non-Negotiable Technical Pitfalls
- ⚠️ Bold Warning 1: Never install this board in a non-TMR single-lane Mark V system configuration. The third control lane will experience signal mismatch that causes the system to continuously trigger false signal fault alarms.
- ⚠️ Bold Warning 2: Skipping the pre-commissioning full 3-lane signal consistency test will leave you with hidden redundant signal dead zones. This unit must complete full signal verification across all three control lanes to confirm TMR redundancy functionality works correctly.
- ⚠️ Bold Warning 3: Do not connect non-turbine standard 220VAC digital signals directly to this terminal board. The internal signal conditioning circuit will experience permanent overvoltage damage that completely disables the corresponding signal channel.
A thermal power plant maintenance team once swapped a DS200TBQDG1AFF board and skipped the 3-lane signal consistency test. The hidden signal mismatch caused the TMR system to misjudge a normal operating signal as a fault, resulting in a 2-hour unnecessary turbine forced shutdown that cost over $32,000 in lost power generation revenue.
Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-check the OEM serial number against GE’s official Mark V part registry, confirm the part number DS200TBQDG1AFF matches the factory label, and inspect no bent pins or corrosion on all backplane and field signal connectors.
- Live Rig Testing: Power the unit in a calibrated GE Mark V TMR system test rack, apply standard power supply, and confirm full 3-lane signal transmission stability for 2 continuous hours.
- Parameter Testing: Verify all digital signal channels operate correctly, confirm TMR redundant signal synchronization performance meets factory specifications, and validate all status LED indicators function properly.
- Final QA & Packaging: Seal the tested terminal board in a static-shielding anti-static bag, attach a unique QC passed serial label, and nest it in foam padding inside a rigid industrial shipping carton.
Frequently Asked Questions (FAQ)
- Can I hot-swap this terminal board while the Mark V turbine system is running? No. You must first place the corresponding control lane in maintenance bypass mode and confirm the other two redundant lanes are operating normally before removing the unit, otherwise you will trigger unexpected turbine trip risks.
- What exact systems is this board compatible with? It works natively with GE Mark V turbine control systems and supports all TMR 3-lane configurations. It will not operate correctly with non-Mark V GE control platforms without custom hardware adaptation.
- How long is the standard warranty for this new surplus unit? 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by overvoltage, miswiring, or improper TMR configuration in the field.
- How do I tell a genuine OEM unit apart from a refurbished clone? Genuine GE DS200TBQDG1AFF boards have a laser-etched part number on the PCB, not a printed sticker. Clone units almost always fail the full 3-lane TMR signal synchronization performance test.
- What is the typical lead time for shipment? In-stock units ship within 48 hours. If you require official GE factory performance test documentation, add 2 extra business days to the turnaround window.
- Can this board replace the older Mark V legacy digital terminal board unit? Well, technically it fits the same Mark V system rack slot footprint, but you will need to reconfigure all TMR lane mapping parameters in the Mark V control system software to unlock the full SIL 2/3 redundant safety performance.
