GE DS200SDCCG1AFD | Speedtronic Drive Control Board

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

Product Introduction (Anti-Template)

The GE DS200SDCCG1AFD is the SDCC drive control board used in the Mark V DS200 control architecture. It contains the primary control circuitry and software associated with compatible drive or exciter applications, while its interface circuitry exchanges motor, drive, and customer I/O signals with other boards in the system. The board is associated with AC and DC drive applications as well as excitation equipment.

For maintenance procurement, the revision suffix deserves as much attention as the base DS200SDCCG1A number. G1A identifies the board group, while AFD identifies the particular functional/artwork revision combination. A visually similar SDCC board from another group should not be treated as an automatic substitute because G3 and G4 versions were intended for different application families.

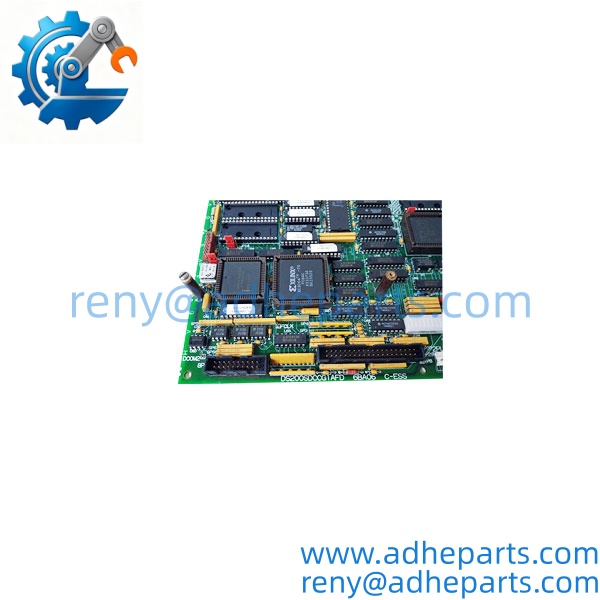

DS200SDCCG1AFD

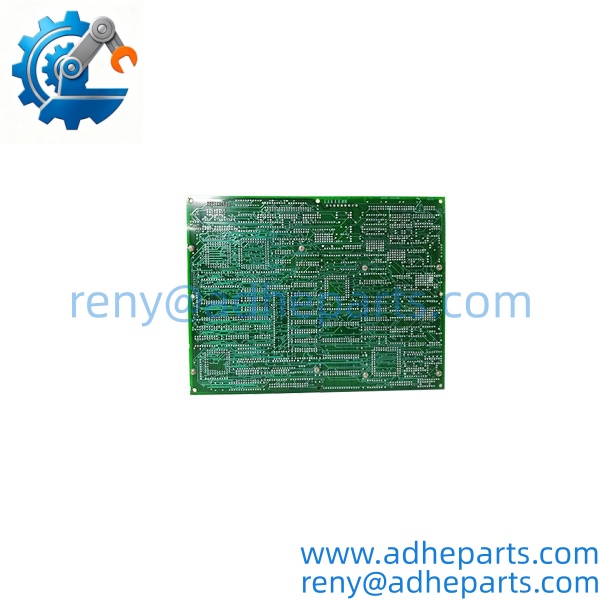

DS200SDCCG1AFD

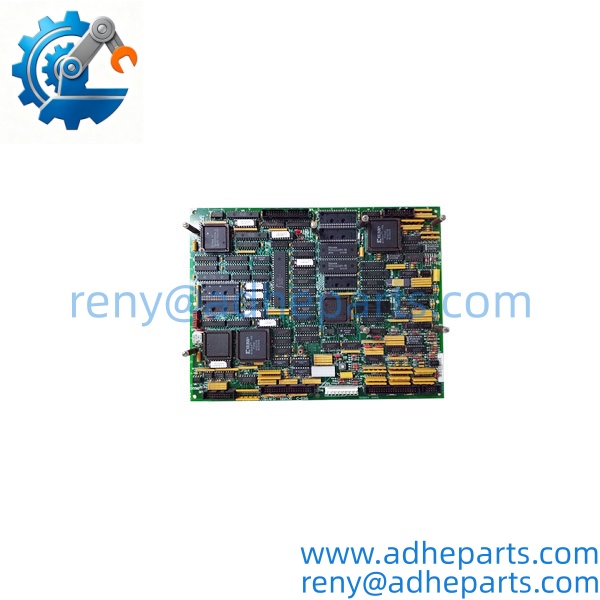

DS200SDCCG1AFD

Key Technical Specifications

The G1A SDCC group is documented for AC2000, DC2000, and EX2000 drive applications, while G3A and G4A belong to different application families. This is an important distinction when sourcing a legacy replacement.

Field Application & Technical Pitfalls (The Engineer’s Guide)

Mark V Drive Control

The SDCC is effectively the processing center for the compatible drive architecture. Its microprocessors execute drive-control functions while the board’s interface circuitry communicates with other control and I/O boards. GE documentation identifies the board as a Drive Control Card, with the SDCC abbreviation and GEI-100029 as the applicable manual.

AC/DC Drive and Exciter Applications

The G1A board group was used in AC2000, DC2000, and EX2000 applications. That makes the exact application code particularly important when replacing an SDCC board in an operating cabinet.

Legacy Mark V Maintenance

Pitfall 1 — Ignoring the G1A/G3A/G4A distinction:
These are not simply cosmetic revisions. The documented application groups differ. Do not substitute a G3A or G4A board merely because the connector arrangement appears similar.

Pitfall 2 — Treating DS200 and DS215 versions as identical:
The DS200SDCC and DS215SDCC families have different memory/configuration considerations. One documented replacement guideline notes that the DS215 version carries the onboard software memory devices, while the DS200 board’s corresponding slot is empty. Verify the complete assembly number before selecting a replacement.

Pitfall 3 — Changing jumpers without documenting the original configuration:
The DS200SDCCG1AFD has configurable jumpers, including positions associated with board behavior and testing. Some are intended for factory use. Record the existing jumper configuration before removing the original board; do not copy a generic jumper diagram without checking the application.

A typical maintenance problem can look deceptively simple: the replacement SDCC powers up and its diagnostic LEDs operate, but the drive does not behave correctly. In a legacy Mark V cabinet, the issue may be configuration data, jumper settings, board revision, or interaction with the other control boards rather than a basic power-up failure.

Quality Control (QC) SOP & Transparency

1. Inbound Identification
   Verify DS200SDCCG1AFD on the board label and record all functional and artwork revision markings.
2. Board-Group Verification
   Confirm that the customer’s application requires the G1A SDCC group rather than G3A or G4A.
3. Physical Inspection
   Inspect the PCB, edge connectors, PL connectors, components, LEDs, jumpers, and mounting points for corrosion, impact damage, contamination, or modification.
4. Revision Check
   Photograph and record the A/F functional revision and D artwork revision before shipment.
5. Configuration Review
   Check jumper positions and any available configuration information against the customer’s existing board before installation.
6. Processor and Memory Inspection
   Verify the processor devices, memory area, and board population against the expected DS200SDCCG1AFD configuration.
7. Functional Testing
   Where the appropriate Mark V test environment is available, verify board startup, diagnostic indication, processor operation, and relevant I/O/interface functions.
8. Final QA and Packaging
   Photograph the complete board and identification label. Package it with ESD protection and sufficient mechanical support around the PCB and connectors.

FAQ

Q1. What is GE DS200SDCCG1AFD?
It is a Mark V DS200 SDCC Drive Control Board used for compatible drive and exciter applications. It contains the primary control circuitry and interfaces with other boards for drive, motor, and customer I/O functions.

Q2. What does SDCC stand for in this board family?
SDCC is the functional acronym used for the Drive Control Card/Board within the Mark V DS200 architecture.

Q3. Which Mark V application group uses the G1A SDCC?
The documented G1A group is associated with AC2000, DC2000, and EX2000 drive applications.

Q4. How many processors does have?
Available technical documentation identifies three microprocessors on the board, with dual-ported RAM allowing processor access to shared data.

Q5. Can be replaced by any DS200SDCCG1A board?
Not automatically. The complete suffix, hardware revision, application group, configuration, and board population should be checked. Several G1A variants exist, and similar-looking boards can have different revisions or configurations.

Q6. What manual is associated with ?
The available product documentation identifies GEI-100029, the GE Motors and Industrial Systems Drive Control Card Manual, as the relevant manual.

Q7. What information should be provided when requesting a replacement?
Provide the complete number, clear photos of the board label and revision markings, the Mark V application or drive/exciter model, and—if possible—the existing jumper/configuration information. This is particularly important for legacy boards where a base part-number match alone may not establish compatibility.
