SDK-C0167-1-12004-08-01-SBS07M076B
Key Technical Specifications
| Parameter | Value |
|---|---|
| Form Factor | 6U VME plug-in rack card |
| Power Input | 24 V DC ±10%, max 10–15 W |
| Backplane Interface | VME bus, 32-bit data transfer |
| Communication | Internal rack bus, RS485, 10/100 Ethernet |
| Operating Temperature | -20°C to +60°C cabinet ambient |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–90% RH, non-condensing |
| Safety Standard | IEC 61508 SIL2 |
| Dimensions | 230 mm × 160 mm × 35 mm |
| Weight | 0.72 kg |
Product Introduction

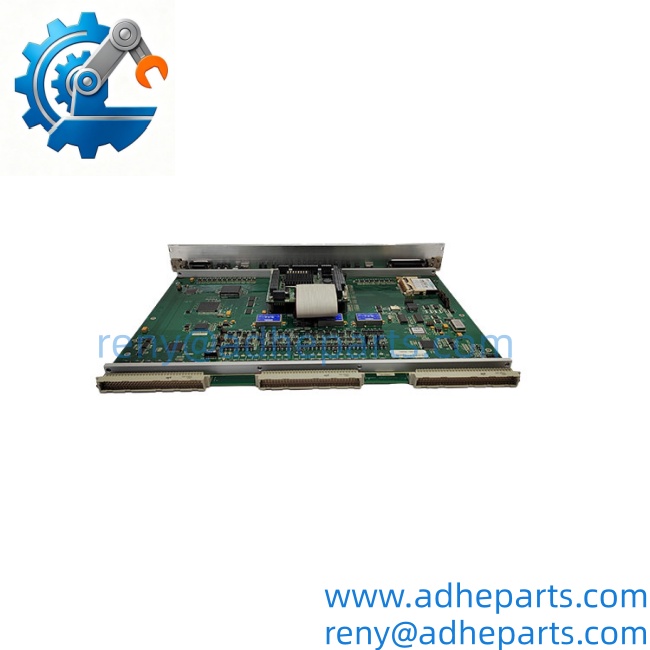

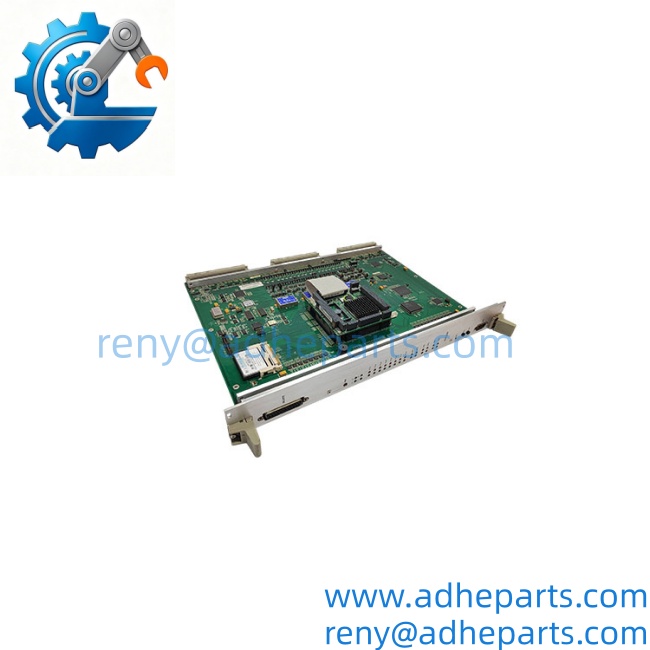

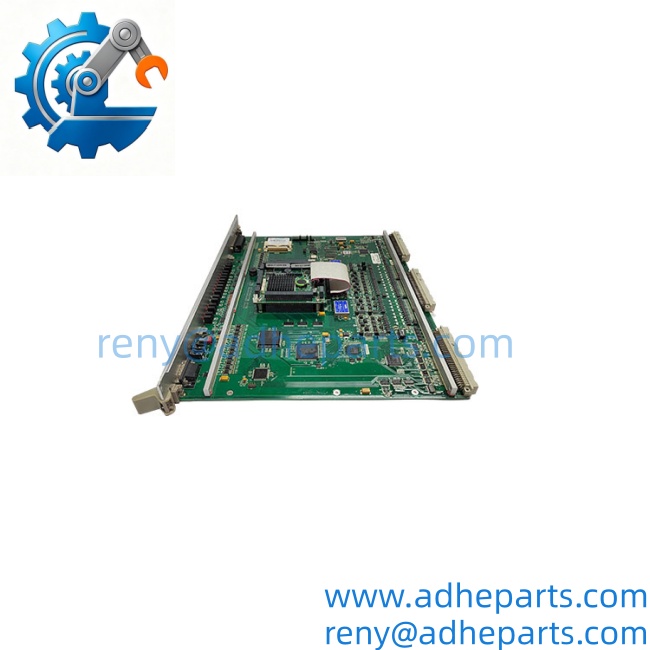

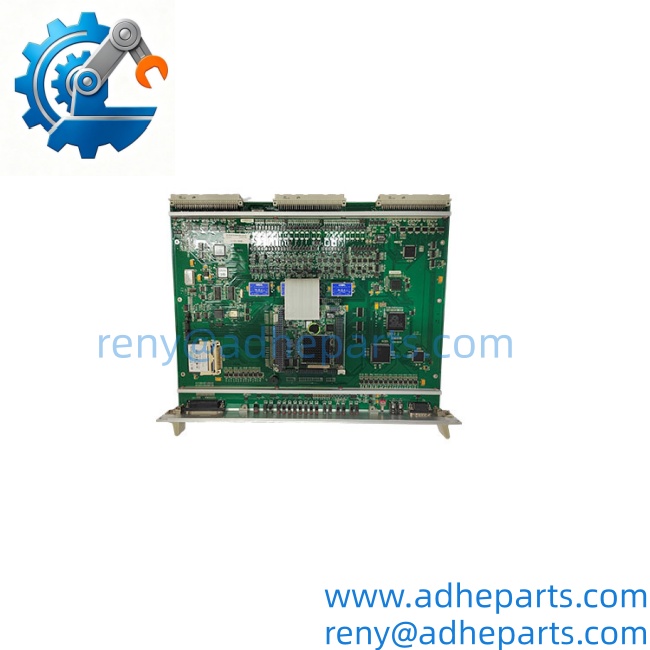

The Alstom SDK-C0167-1 12004-08-01 SBS07M076B is a 6U VME rack processor built for legacy power generation control racks. It runs real-time protection interlocks, startup sequences, and continuous data acquisition for turbine and generator assets.
This board supports redundant rack deployment. Conformal coated PCB variants reduce failure risk from dust and cabinet condensation, lowering intermittent bus communication faults in aging power station control rooms.
SDK-C0167-1-12004-08-01-SBS07M076B
SDK-C0167-1-12004-08-01-SBS07M076B
Application Scenarios & Field Experience
Part 1 (Narrative Paragraph)
Legacy Alstom VME control racks depend on dedicated processor cards to run safety trip logic. Degraded memory or VME bus timing drift on SDK-C0167-1 can trigger random generator trips, even when all I/O modules work normally. A matching processor replacement restores rack operation without full system migration.
Part 2 (Numbered List)
- Thermal power plants: Steam turbine governor control and generator protection sequencing.
- Combined cycle facilities: Gas turbine auxiliary interlock and trip logic processing.
- Hydroelectric stations: Generator overspeed protection and unit startup sequence control.
- Captive power plants: Refinery on-site generator monitoring and emergency trip handling.
Part 3 (Short Field Story)
A coal-fired power station saw sporadic VME bus timeout alarms and unplanned generator trips. Bench testing revealed flash memory corruption on the SDK-C0167-1 12004-08-01 SBS07M076B processor. We installed a matching replacement, downloaded the validated control logic, and synced the redundant peer card. The rack operated without bus faults for 24 months after swap.
SDK-C0167-1-12004-08-01-SBS07M076B
Standard Operating Procedure (SOP) for Quality Control
- Visual & Origin Inspection: Verify OEM marking, PCB coating, solder joints and tamper seals; reject units with edge connector damage, PCB corrosion or scratched traces.
- Live Rig Testing: Mount inside VME test rack, power on, execute self-test, validate VME bus handshake and RS485 / Ethernet communication links.
- Firmware Verification: Record firmware revision on the test log; cross-check revision compatibility with your rack backplane and I/O modules.
- ESD-Safe Packaging: Seal inside static shielding bag, fitted foam padding, carton printed with ESD handling warnings.
Frequently Asked Questions (FAQ)
Q1: Can different revision variants of SDK-C0167-1 12004-08-01 SBS07M076B be swapped directly in the same VME rack? A: Mechanical form factor matches, but confirm firmware and backplane revision. Mismatched firmware causes logic download failures or redundant synchronization errors.
Q2: What warranty applies to the Alstom SDK-C0167-1 12004-08-01 SBS07M076B processor card? A: We offer a 12-month warranty. Warranty excludes damage from incorrect backplane voltage, ESD damage, overheating or corrupted logic downloads.
Q3: What is stock and lead time for Alstom SDK-C0167-1 12004-08-01 SBS07M076B? A: Selected revisions are in stock. Final availability and dispatch timeline will be confirmed after you submit your procurement inquiry.
Q4: Will firmware differences break communication with my existing rack I/O modules? A: Yes. Older firmware revisions use different VME timing and register mapping. We supply firmware revision data before shipment so your controls team can complete validation.
Q5: Can I hot-swap this processor card while the generator stays online? A: Hot swap works only for fully configured active/standby redundancy with a fully synced standby processor. Without redundancy, removing the card triggers an immediate generator protection trip.
