ABB LWN2660-6E 3BHL000986P7002 Power Supply

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

Key Technical Specifications

ABB-related catalog data gives the formal product description as “POWER SUPPLY” and the long description as “POWER SUPPLY, LWN2660-6.” It also lists customs tariff number 85044090.

A separate ABB spare-parts listing identifies the part more specifically as “AC-DC CONV +/-24V DUAL250W TYPE LWN2660-6.”

Important: Some third-party listings provide detailed input-voltage and individual-output specifications that are not consistently supported across sources. For procurement or engineering replacement, the actual nameplate and system documentation should take precedence.

Product Introduction — Anti-Template

The ABB LWN2660-6E 3BHL000986P7002 is a dedicated industrial AC-DC converter used to provide DC power within ABB power-electronics equipment. ABB catalog records identify it as an LWN2660-6 power supply, while spare-parts documentation describes the unit as a ±24 V dual-output, 250 W AC-DC converter.

This is a power-conversion component, so replacement should be based on electrical compatibility rather than physical fit alone. Check the input range, output polarity, load requirements, connectors, mounting arrangement, and the complete ABB equipment type before installation. A 24 V label by itself is not enough to establish interchangeability.

LWN2660-6E

LWN2660-6E

LWN2660-6E

LWN2660-6E

QC, Procurement & Logistics SOP

1) Inbound Verification

Before placing an LWN2660-6E into stock, verify:

• ABB manufacturer marking
• LWN2660-6 / LWN2660-6E designation
• 3BHL000986P7002 part number
• Serial number
• Hardware revision
• Input/output terminal markings
• Connector condition
• Housing condition
• Evidence of overheating or capacitor leakage
• Signs of previous repair

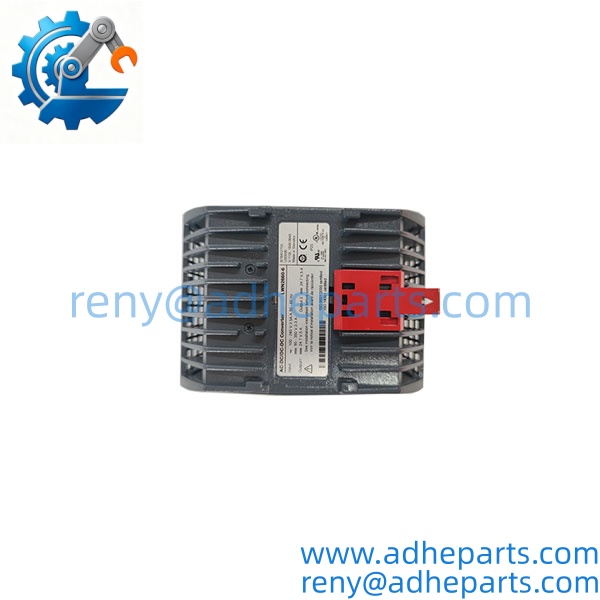

Photograph the nameplate and terminal side for the purchasing record.

2) Functional / Live Rig Testing

Where an appropriate ABB test environment is available, verify:

• Input power acceptance
• Output voltage
• Positive and negative output rails
• Output stability under suitable load
• Startup behavior
• Protection/fault behavior
• Connector and terminal integrity

For a dual-output supply, check both output rails independently. Do not assume that measuring only one 24 V rail proves the converter is fully functional.

3) QA & ESD Packaging

Although the main function is power conversion, the unit contains sensitive electronic circuitry. During handling:

• Use an ESD-safe workstation.
• Inspect terminal insulation.
• Check for loose components or mechanical damage.
• Protect terminals against shorting.
• Use antistatic packaging.
• Add shock-absorbing material around the power supply.

If the unit is engineering surplus, document its physical condition and test status before packing.

4) Global Logistics & Export Compliance

Before shipment, confirm:

• Destination country
• Incoterm
• Declared condition
• Customs description
• HS classification
• COO requirements
• COC requirements if requested
• Required delivery date
• Customer’s voltage and application requirements

ABB-related catalog data lists 85044090 as a customs tariff reference for this power supply. Final classification should still be confirmed against the actual product and destination-country customs rules.

5) Secure Air/Sea Packaging

Recommended packing:

1. Antistatic protection
2. Terminal protection against short circuits
3. Moisture protection where appropriate
4. Shock-absorbing inner packaging
5. Rigid carton
6. Reinforced outer packaging
7. Commercial invoice and packing list
8. Shipment tracking after dispatch

For urgent industrial maintenance, air express is generally suitable for one power supply. Larger ABB spare-parts orders can be consolidated when lead time permits.

Technical Pitfalls & Integration Warnings

1) Do not confuse LWN2660-6E with LXN1604-6.
The two ABB parts appear together in several spare-parts lists, but they are different power-conversion products. ABB-related records identify 3BHL000986P7002 as LWN2660-6E and 3BHL000986P7000 as LXN1604-6.

2) Verify output polarity and configuration.
The LWN2660-6 is described as a ±24 V dual-output AC-DC converter. Do not wire it as though it were an ordinary single-output 24 V DC supply.

3) Check the complete input specification before energizing.
Third-party sources provide different detailed input specifications. Use the actual nameplate and ABB system documentation to confirm the permitted AC/DC input range before applying power.

4) Do not select a replacement solely by wattage.
A 250 W supply with a similar physical form may have different output polarity, regulation, connector pinout, protection characteristics, or startup behavior. The complete ABB part number should be matched.

5) Verify the downstream load.
The converter must be checked against the actual DC load of the host system. Pay particular attention to startup/inrush current and the requirements of connected control electronics.

6) Check connector and mounting details.
Even when the replacement carries the same designation, revision and physical configuration should be compared before installation. This is especially important for equipment that has been modified during previous service work.

Frequently Asked Questions

Q1: What is ABB 3BHL000986P7002?
It is an ABB industrial AC-DC power supply/converter in the family. ABB-related catalog information identifies it as a power supply, with other spare-parts documentation describing a ±24 V dual-output, 250 W configuration.

Q2: What is the output of ?
Available ABB spare-parts records describe the as a ±24 V dual-output, 250 W AC-DC converter. The exact output arrangement should be confirmed from the unit’s nameplate and system documentation before installation.

Q3: Is 3BHL000986P7002 the same as ?
Yes. ABB-related catalog data identifies 3BHL000986P7002 as the product ID for .

Q4: Is a PLC power supply?
It is better described as an industrial AC-DC power supply/converter used within ABB power-electronics equipment. It should not automatically be treated as a generic PLC rack power supply.

Q5: Can I replace it with another 24 V, 250 W power supply?
Not without checking the complete electrical and mechanical requirements. Output polarity, input range, connector pinout, mounting, regulation, protection, and the host ABB system all need to match.

Q6: Can you test before shipment?
Where suitable test equipment is available, the input, positive/negative output rails, startup behavior, and output stability can be checked. Testing should follow the unit’s actual electrical specification.

Q7: What HS code can be used for ?
ABB-related catalog information lists 85044090 as the customs tariff reference for this power supply. The final HS classification should be confirmed according to the destination country’s customs rules and the actual declared product description.
