Product Introduction
When your ABB AC 800M/AC 800F PLC system needs a highly reliable multi-protocol communication unit to realize seamless data interconnection between the controller and heterogeneous industrial devices such as third-party PLCs, variable frequency drives and on-site instruments, this module acts as the core protocol conversion bridge.
It is a flagship industrial-grade multi-protocol advanced control module from ABB, specially designed for complex industrial automation scenarios. It is equipped with dual independent 10/100Mbps Ethernet ports, supporting redundant network configuration to minimize system downtime. It natively supports Profibus DP/V1, RS-485 Modbus and other mainstream industrial communication protocols, and integrates 8 digital inputs, 8 digital outputs, 4 analog inputs and 2 analog outputs, which can directly connect to on-site sensors and actuators without additional I/O expansion modules. Its industrial-grade wide temperature design fully adapts to harsh industrial site environments, making it a core replacement part for ABB industrial automation system maintenance and retrofit projects.

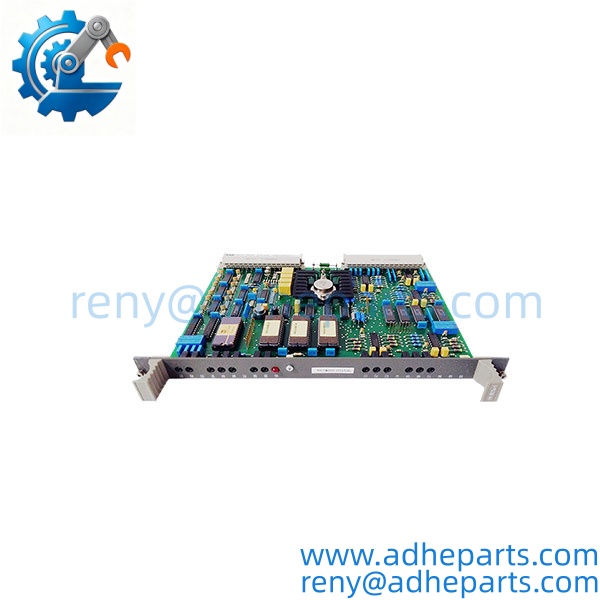

FM9925A-E

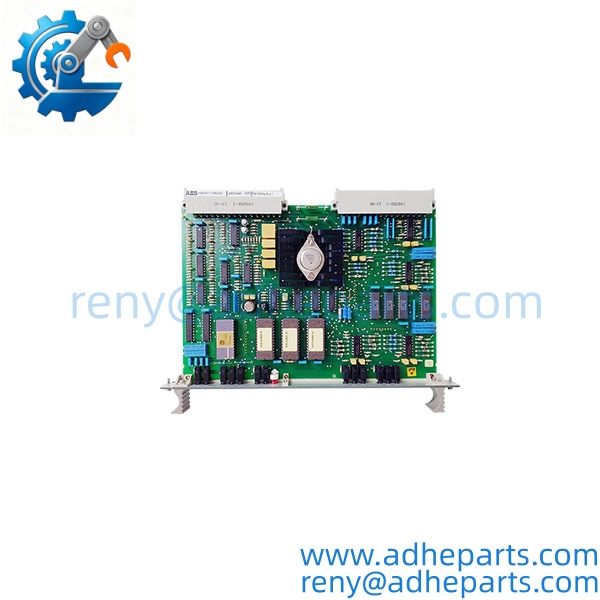

FM9925A-E

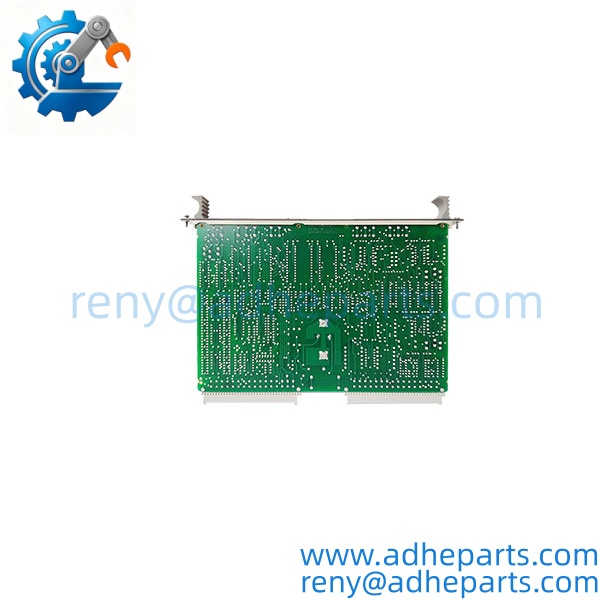

FM9925A-E
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | FM9925A-E (HIEE451116R1) |
| Product Type | Multi-Protocol Advanced Control Communication Module |
| Manufacturer | ABB |
| Country of Origin | Sweden |
| Power Supply | 24 V DC ±10% |
| Maximum Current Consumption | ≤500 mA |
| Communication Interfaces | 2×10/100Mbps Ethernet, RS-485, Profibus DP/V1 |
| Supported Protocols | Modbus RTU/TCP, Profibus DP/V1, EtherNet/IP |
| Onboard I/O | 8DI, 8DO, 4AI, 2AO, 2 PWM outputs |
| Operating Temperature Range | -20°C ~ +60°C |
| Storage Temperature Range | -40°C ~ +85°C |
| Dimensions (W×H×D) | 100 mm × 150 mm × 50 mm |
| Net Weight | ~1.35 kg |
| Compatible Systems | ABB AC 800M, AC 800F series PLC industrial control systems |
| Warranty | 12 months from delivery |
Field Application & Technical Pitfalls
Critical Industrial Scenarios
- **Large Petrochemical Plant DCS System Heterogeneous Device Interconnection: Acts as the core multi-protocol gateway for ABB AC 800M PLC systems in petrochemical production plants, realizing seamless data exchange between the main control system and a large number of third-party variable frequency drives and on-site intelligent instruments, ensuring the full data transparency of the production process control system.
- **Automated Manufacturing Production Line Multi-Controller Communication: Delivers reliable redundant network communication performance for automated production line ABB control systems, adapting to long-term high-load operation scenarios, meeting the stable data interconnection requirements of multi-station distributed control systems.
- **Large Water Treatment Plant Distributed Control System Expansion: Adapts to humid and dusty water treatment workshop environments, providing stable multi-protocol communication support for the interconnection between ABB PLC systems and on-site water quality analysis instruments and electric valves.
Non-Negotiable Technical Pitfalls
- ⚠️ Bold Warning 1: Never arbitrarily connect the power input to a voltage that exceeds the 26.4VDC maximum limit. The third power channel will experience overvoltage that causes the internal communication circuit to burn out.
- ⚠️ Bold Warning 2: Skipping the pre-commissioning full multi-protocol communication performance test will leave you with hidden data transmission interruption risks. This module must confirm the full network redundant switching performance fully meets ABB PLC communication specifications before putting into operation.
- ⚠️ Bold Warning 3: Do not arbitrarily configure the Profibus DP station address to conflict with existing devices on the bus. The third communication channel will experience bus signal conflict that causes the entire Profibus network to crash.
A large petrochemical plant maintenance team once swapped an ABB FM9925A-E module and skipped the Profibus station address check. The hidden station address conflict caused the entire Profibus network to crash, resulting in a 1.5-hour partial shutdown of the production unit.
Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-check the OEM serial number against ABB’s official part registry, confirm the part number FM9925A-E HIEE451116R1 matches the factory label, and inspect no bent pins or corrosion on all backplane and communication connectors.
- Live Rig Testing: Power the unit in a calibrated ABB AC 800M system test bench, simulate multi-protocol concurrent communication scenarios, and confirm full 2-hour continuous stable data transmission operation.
- Parameter Testing: Verify the dual Ethernet redundant switching performance meets factory specifications, confirm the Profibus DP/Modbus multi-protocol communication stability meets industrial control standards, and validate all onboard I/O and status LED indicators work properly.
- Final QA & Packaging: Seal the tested module in a static-shielding anti-static bag, attach a unique QC passed serial label, and nest it in foam padding inside a rigid industrial shipping carton.
Frequently Asked Questions (FAQ)
- Can I hot-swap this module while the PLC system is running? Yes, it supports ABB PLC backplane hot-swap function, but you must first confirm that the redundant communication link is operating normally and has completed full data synchronization, then perform the replacement operation, otherwise you will trigger unexpected communication interruption risks.
- What exact systems is this module compatible with? It works natively with ABB AC 800M and AC 800F series PLC industrial control systems, and cannot be directly used in non-ABB PLC systems without custom protocol adaptation.
- How long is the standard warranty for this new surplus unit? 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by miswiring, overvoltage input, or Profibus bus address conflict in the field.
- How do I tell a genuine OEM unit apart from a refurbished clone? Genuine ABB FM9925A-E modules have a laser-etched part number HIEE451116R1 on the PCB, not a printed sticker. Clone units almost always fail the full multi-protocol concurrent communication performance test.
- What is the typical lead time for shipment? In-stock units ship within 48 hours. If you require official ABB factory multi-protocol communication performance test documentation, add 2 extra business days to the turnaround window.
- Can this module replace the older ABB legacy advanced control communication unit? Well, technically it fits the same standard ABB PLC chassis slot footprint, but you must confirm the AC 800M/AC 800F controller firmware version fully supports the module before replacement to ensure 100% system compatibility.
