Description

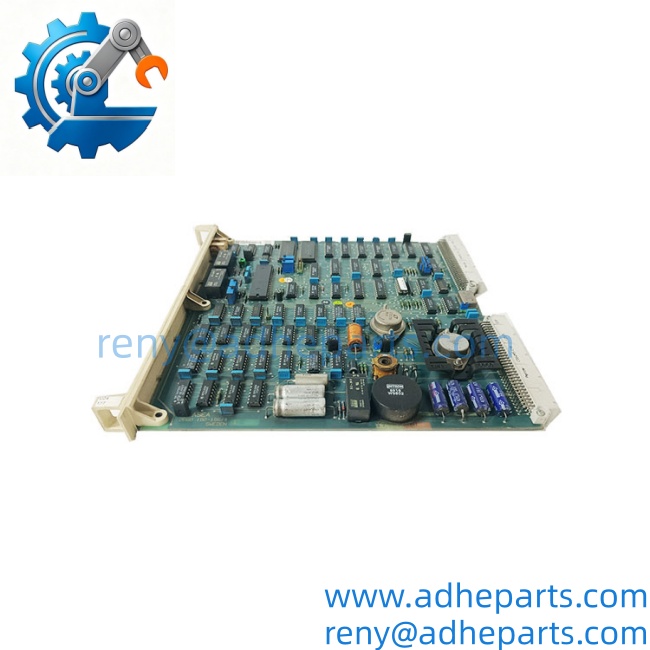

ABB DSMC112 57360001-HC

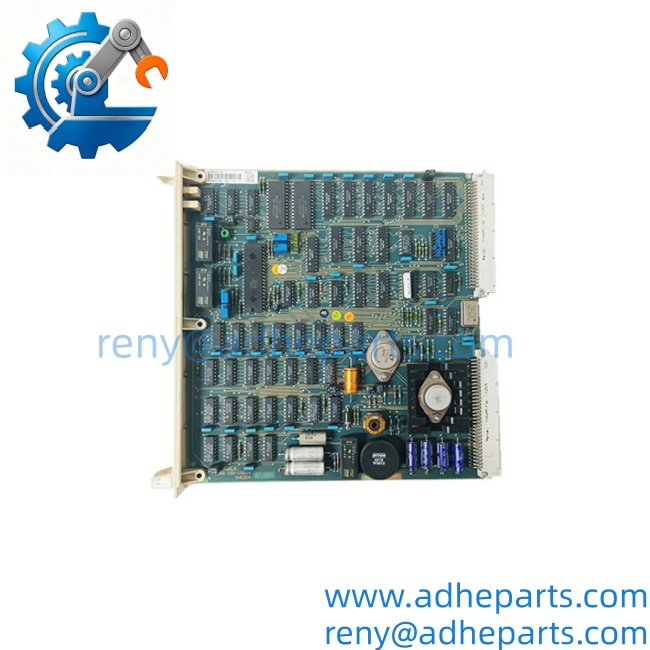

ABB DSMC112 57360001-HC
3. Key Technical Specifications
| Product Model | DSMC112 |
| Part Number | 57360001-HC |
| System Compatibility | ABB MasterPiece 200 / MasterPiece 200/1 |
| Communication Protocol | MasterBus 300 (CS31 / Bus Communication) |
| Backplane Interface | Subrack bus interface for MP200 rack backplane |
| Operating Voltage | 24 VDC (Supplied via subrack power supply unit) |
| Power Consumption | Typical 8.5 W |
| Operating Temperature | 0 to +55°C (+32 to +131°F) |
| Storage Temperature | -40 to +70°C (-40 to +158°F) |
| Relative Humidity | 5 to 95% (Non-condensing) |
| Diagnostic LEDs | Run, Fault, Bus Activity, Subrack Status |
| Mounting Format | Dedicated slot in MP200 subrack cage |
4. Product Introduction
The ABB DSMC112 57360001-HC is a core communication and subrack interface board engineered for ABB MasterPiece 200 Distributed Control Systems (DCS). It coordinates internal backplane traffic across local subrack I/O boards while linking the local rack process data to the MasterBus 300 network.
In my experience, maintaining legacy MP200 installations requires rock-solid hardware stability. The DSMC112 guarantees deterministic data transfer cycles across subracks without dropping telegram packets, keeping real-time control loops tight across large-scale continuous processing operations.

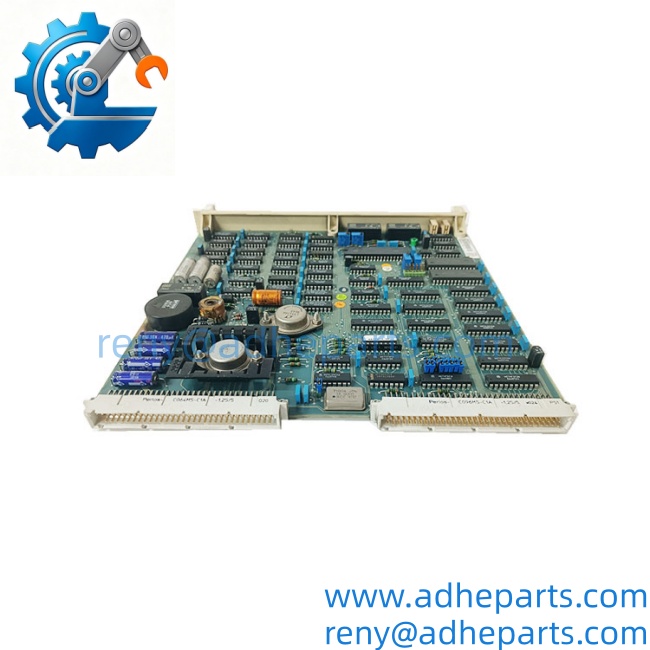

ABB DSMC112 57360001-HC

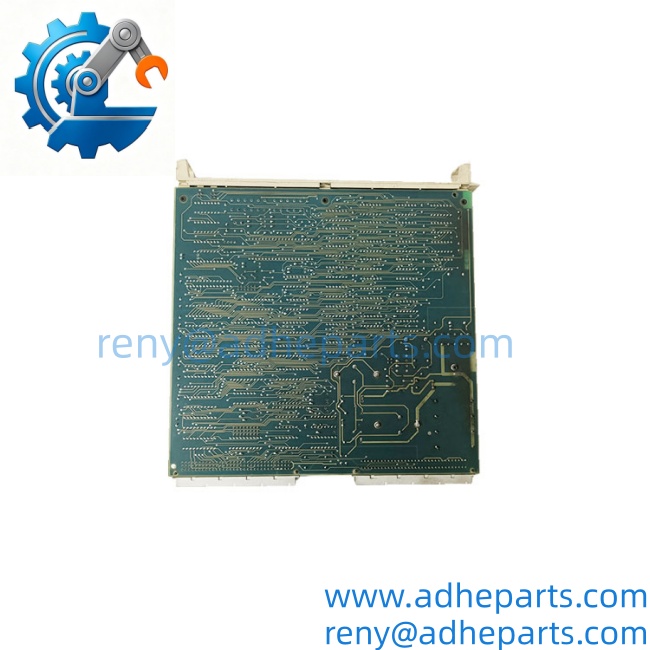

ABB DSMC112 57360001-HC
5. Application Scenarios & Field Experience
Part 1 (Narrative Paragraph):
Legacy DCS platforms in chemical, power generation, and paper plants often face unexpected plant-wide comms alarms due to aging backplane driver chips on subrack interface boards. When a subrack communication board degrades, the controller loses contact with local I/O channels, triggering fail-safe trips or holding outputs in freeze mode. Swapping out a malfunctioning DSMC112 restores clean backplane signaling without needing an immediate, multi-million-dollar control system migration.
Part 2 (Numbered List):
1. Power Generation (Turbine Control Subracks): Manages real-time sensor feedback and governor control outputs between subracks on MasterPiece 200 controllers.
2. Pulp and Paper Plants (Continuous Digester Systems): Coordinates distributed I/O racks across long distances using the MasterBus 300 network architecture.
3. Chemical Processing (Batch Reactor Skid Control): Maintains deterministic scan cycles across critical interlock loops and valve manifolds.
4. Water & Wastewater Treatment Plants: Serves as the central rack comms bridge in multi-subrack MP200 automation cabinets.
Part 3 (Short Field Story):
During a midnight shift at a midwestern paper mill, an entire MasterPiece 200 expansion rack dropped off the bus, freezing 16 control valves on a drying line. The plant team suspected a main CPU failure, but diagnostic LEDs pointed directly to a corrupted bus driver transceiver on the subrack interface board. We swapped in a tested ABB DSMC112 57360001-HC spare, cleared the bus fault, and had the production line running again in under 25 minutes.

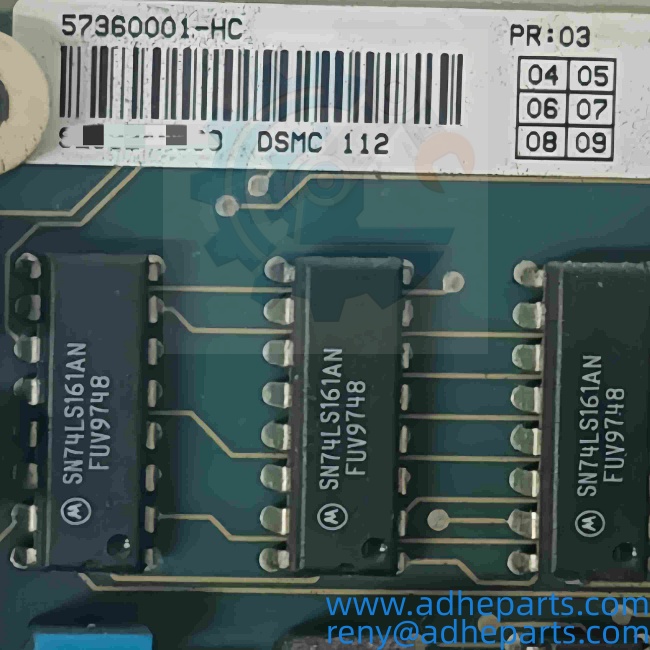

ABB DSMC112 57360001-HC
6. Standard Operating Procedure (SOP) for Quality Control
1. Visual & Origin Inspection: Verify PCB revision levels, silk-screen authenticity, component solder joints, edge connector plating, and OEM anti-counterfeit seals.
2. Live Rig Testing: Insert the board into an active MasterPiece 200 test subrack. Run power-on self-tests (POST) and execute sustained MasterBus 300 cyclic data transfers over 24 hours.
3. Firmware & DIP Switch Verification: Document installed EPROM firmware versions and record jumper/switch settings against factory baseline parameters.
4. ESD-Safe Packaging: Clean contacts with electrical solvent, wrap the board in static-shielding ESD bags, and pack it with high-density anti-static foam in standard shipping boxes.
7. Frequently Asked Questions (FAQ)
Q1: Can I hot-swap the ABB DSMC112 57360001-HC board while the system is powered on?
A: No, do not pull or insert the under live power unless your specific subrack arrangement is certified for hot-swap operations. Pulling this board without isolating power or setting the rack to standby can freeze the backplane bus, potentially causing an immediate CPU shutdown or process trip.
Q2: How do I handle firmware differences between my existing board and a replacement?
A: Always verify the socketed EPROMs on the board prior to commissioning. If your legacy MP200 software expects a specific revision, you can swap the original firmware chips onto the replacement board, provided the underlying PCB hardware revision matches.
Q3: What causes intermittent bus communication errors on this module?
A: In most field setups, intermittent bus faults trace back to dirty edge connectors, degraded backplane ribbon cables, or missing bus termination resistors on the MasterBus 300 line. Clean the card edge gold fingers with contact cleaner before condemning the module.
Q4: Is the 57360001-HC backed by a warranty?
A: Yes, we provide a 12-month comprehensive warranty on all new surplus and reconditioned ABB modules. Every unit undergoes functional bench testing before dispatch.
Q5: Are these boards in stock for immediate emergency shipping?
A: Yes, we maintain physical stock of tested ABB 57360001-HC units ready for same-day or next-day express shipping to minimize plant downtime during critical breakdowns.
