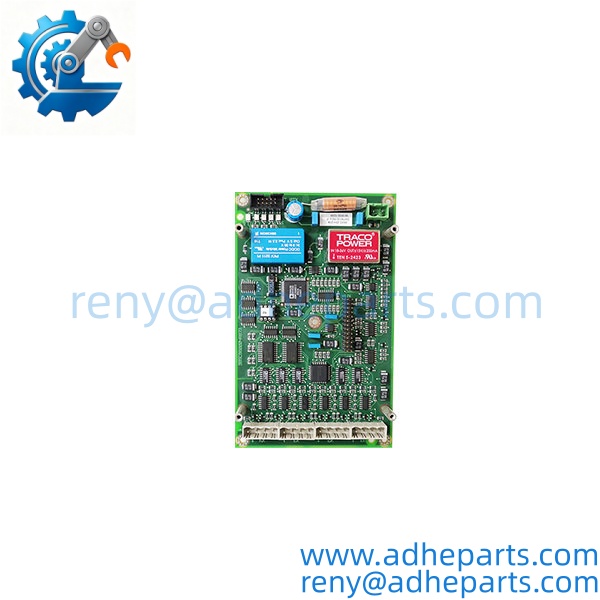

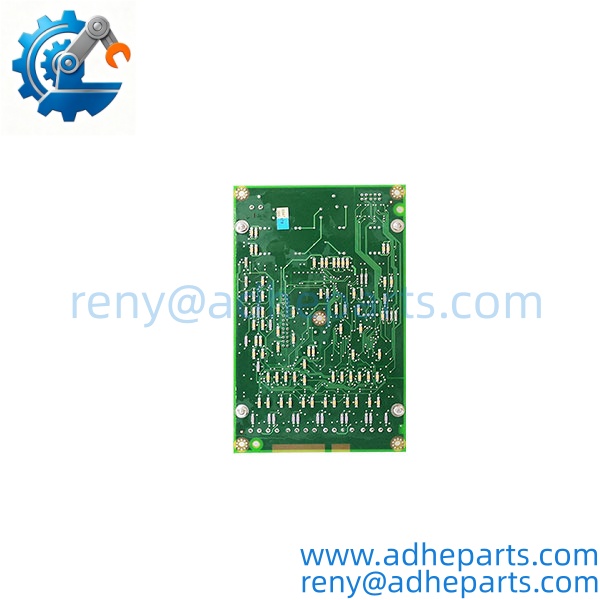

The ABB DATX130 (Product ID 3ASC25H214) is a rotor feedback board used in ABB industrial drive systems. It receives signals from rotor position or speed sensors and conditions them for use by the drive control electronics.

Accurate rotor feedback is essential for closed-loop speed and torque control, especially in applications that demand precise regulation, dynamic response, or sensor-based vector control. The board forms part of the spare-parts portfolio for ABB drives and is typically replaced when feedback signal quality degrades or the original board fails. Because it is a specialized interface board, the correct hardware revision must be matched to the target drive system.

3ASC25H214

3ASC25H214

5. QC, Procurement & Logistics SOP

1. Inbound Verification – Confirm full markings (DATX130 and 3ASC25H214), connector condition, and board integrity. Photograph all labels.
2. Functional Testing – Install in a compatible drive or test setup where possible and verify basic feedback signal processing.
3. QA & Packaging – Protect all connectors, clean the board, and pack in anti-static protective packaging with desiccant.
4. Global Logistics & Export Compliance – Classify under the correct HS code for industrial electronic control boards. Packaging must protect against electrostatic discharge and mechanical shock; export documentation is prepared to minimize customs delays.

6. Technical Pitfalls & Integration Warnings

Sensor Compatibility – The board must match the type of rotor sensor (resolver, encoder, or other) used in the drive. Incorrect matching produces erroneous feedback.

Cable and Shielding – Feedback cables are sensitive to noise. Maintain proper shielding and grounding practices to avoid signal degradation.

Revision Matching – Always verify the full product ID (3ASC25H214). Different revisions may not be interchangeable.

Drive Commissioning – After replacement, the drive may require feedback calibration or parameter checks to restore correct closed-loop performance.

7. Frequently Asked Questions (FAQ)

What is the realistic global lead time for a verified DATX130 3ASC25H214?
As a specialized drive spare, availability depends on surplus stock. Typical lead time after verification is 5–15 business days plus standard shipping.

What is the function of the DATX130 board?
It is a rotor feedback board that processes position and speed signals from the motor rotor sensors for the drive control system.

What is the official Product ID?
3ASC25H214.

What systems is it used with?
ABB industrial drives and related rotating equipment control systems that require rotor feedback.

Is detailed public documentation readily available?
Public information is limited to the official type designation and catalog description. Full technical details are typically found in the specific drive service manuals.

Is it still in active production?
It is a spare-parts item for existing drive installations and is primarily available through ABB spare channels and specialist surplus suppliers.

What should be confirmed before ordering a replacement?
Exact type designation (DATX130) and Product ID (3ASC25H214), the drive model it belongs to, and the type of rotor sensor in use.
