Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | 81EU01E-E |
| Order Number | GJR2391500R1210 |
| Product Family | PROCONTROL 81EU01 |
| Module Type | Universal Input Module |
| Input Channels | 16 |
| Signal Category | Binary and analog transmitter signals |
| Input Function | Field signal acquisition and conditioning |
| Configuration | Programmable |
| Configuration Storage | EEPROM |
| System Application | PROCONTROL process control |
| Typical Industry | Power generation / industrial automation |
| Product Status | Legacy / engineering spare |
| Condition | New Surplus / Used / Refurbished |
| Warranty | 1 Year |
The available documentation consistently associates the 81EU01 family with universal signal acquisition. One technical listing describes the module as supporting five functional units and programmable input-mode combinations, with configuration values retained in EEPROM after power loss.
Procurement note: Some online records incorrectly describe 81EU01E-E as an Ethernet or I/O communication module. That description conflicts with the ABB part-number association and the PROCONTROL 81EU01 input-module documentation. Verify the physical label and complete order number before treating a unit as interchangeable.
Product Introduction (Anti-Template)
The ABB 81EU01E-E is a legacy PROCONTROL universal input module designed to bring different types of field signals into an ABB process-control system. Its 16-channel architecture is intended for applications where binary signals and analog transmitter measurements need to be acquired within the same control-system environment.
This is an older-generation DCS component, so exact system compatibility matters more than simply matching the word “universal.” Check the installed PROCONTROL station, order number, revision, terminal arrangement, and configured input functions before replacement. A visually similar legacy card is not automatically a valid substitute.

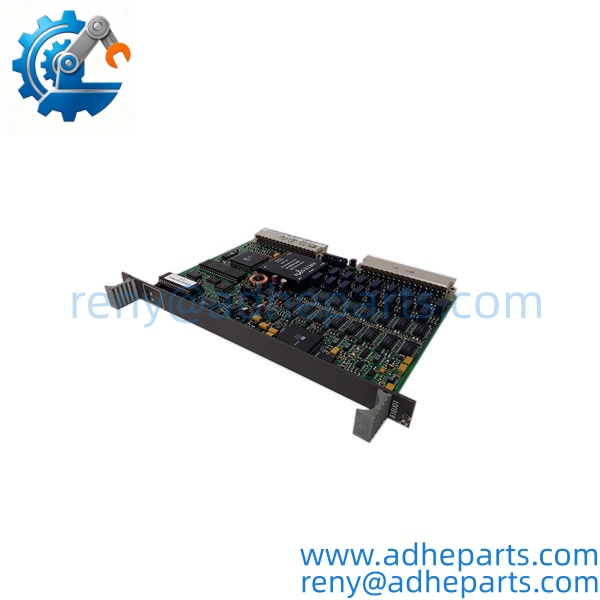

81EU01E-E

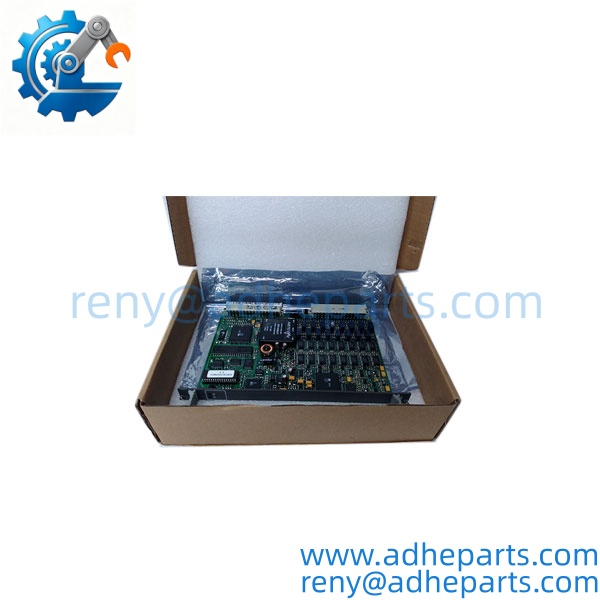

81EU01E-E

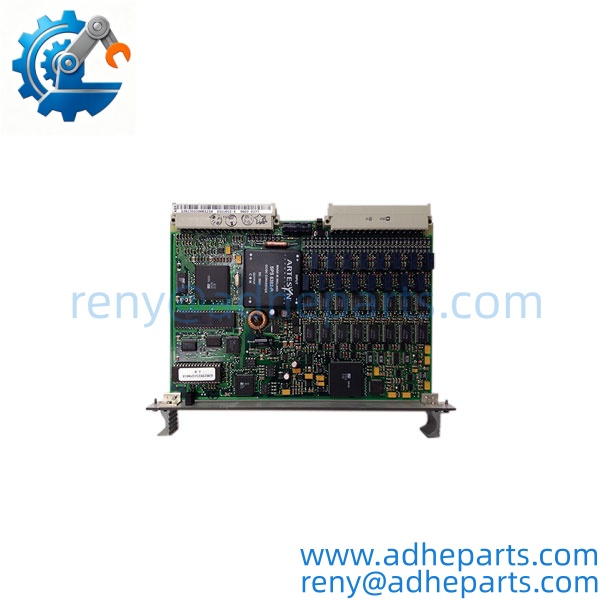

81EU01E-E

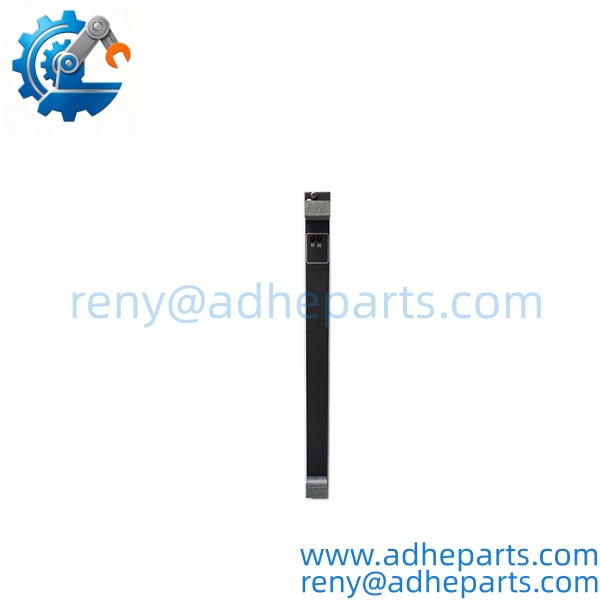

81EU01E-E
QC, Procurement & Logistics SOP
1) Inbound Verification
For every ABB 81EU01E-E received into inventory, verify:
- ABB identification.
- Complete model: 81EU01E-E.
- Order number: GJR2391500R1210.
- PCB revision and hardware markings.
- Connector condition.
- Terminal/interface condition.
- Signs of corrosion or overheating.
- Evidence of previous repair.
- Physical condition of the PCB and housing.
Photograph the label, connectors, PCB markings, and serial information before the unit enters stock.
2) Live Rig Testing
Where a compatible PROCONTROL test environment is available, verify:
- Module initialization.
- System recognition.
- Input-channel response.
- Binary input acquisition.
- Analog transmitter signal acquisition where supported by the configured application.
- Diagnostic behavior.
- Communication with the control-system architecture.
- Correct operation of the configured input functions.
A basic power-on check is not enough for a universal input module. The actual signal path needs to be checked against the intended application.
3) QA & ESD Packaging
Before shipment:
- Inspect PCB and connectors.
- Confirm the exact part number.
- Record revision and serial information.
- Use ESD-safe handling.
- Place the module in antistatic packaging.
- Protect connectors from mechanical impact.
- Use shock-absorbing export packaging.
For legacy DCS cards, connector condition is particularly important because replacement connectors and matching interface hardware may be difficult to source.
4) Global Logistics & Export Compliance
Prepare the commercial invoice and packing list using the exact ABB model and order number.
The product should be described according to its actual function, such as:
“ABB PROCONTROL Universal Input Module, Model 81EU01E-E, P/N GJR2391500R1210.”
HS classification should be confirmed against the actual configuration and destination customs requirements.
For urgent power-plant maintenance, air freight is generally practical. Consolidated air or sea freight may be considered for larger DCS spare-part shipments.
5) Secure Air/Sea Packaging
Recommended packing sequence:
- ESD-safe inner bag
- Moisture protection where appropriate
- Connector protection
- Shock-absorbing material
- Rigid export carton
- Commercial documentation
- Tracking information
Do not allow the PCB assembly to move freely inside the carton during transportation.
Technical Pitfalls & Integration Warnings
1) Confusing It With a Communication Module
Several online listings incorrectly describe 81EU01E-E as an Ethernet or general I/O communication module.
For procurement purposes, the stronger identification is PROCONTROL 81EU01 Universal Input Module, GJR2391500R1210. Match the physical label and system documentation before purchasing.
2) Input Configuration Mismatch
Because the module is designed as a universal input device, the actual input function depends on system configuration.
Scenario:
A replacement card is installed into a station expecting a particular analog transmitter configuration, but the replacement is configured differently.
The hardware may initialize while the process value remains incorrect.
3) Wiring and Terminal Compatibility
Do not assume that a matching 81EU01 family number means every terminal arrangement is identical.
Before replacement, compare:
- Existing wiring
- Terminal assignments
- Channel numbering
- Signal type
- Field transmitter arrangement
- Module revision
This is especially important on older PROCONTROL installations.
4) Configuration Memory
Available technical information indicates that programmed values are stored in EEPROM and are retained when power is removed.
Even so, do not assume that a replacement unit contains the same application configuration as the customer’s existing module. Verify configuration before commissioning.
5) ESD Handling
The module contains electronic circuitry that should be handled using standard ESD precautions.
Keep it in antistatic packaging until installation and avoid unnecessary contact with PCB contacts.
6) Hot-Swap Assumption
Do not assume live replacement is permitted simply because a third-party listing describes the module as hot-swappable. Follow the actual PROCONTROL station maintenance procedure and site isolation requirements before removing the card.
Frequently Asked Questions (FAQ)
Q1: What is ABB 81EU01E-E?
It is a PROCONTROL 81EU01 Universal Input Module used for acquisition of binary and analog transmitter signals in ABB process-control systems.
Q2: What is the ABB order number for 81EU01E-E?
The commonly associated order number is GJR2391500R1210.
Q3: How many input channels does it have?
The available technical records identify the module as a 16-channel universal input module.
Q4: Is 81EU01E-E an Ethernet communication module?
No. Some third-party listings describe it that way, but that conflicts with the more consistent identification of 81EU01E-E / GJR2391500R1210 as a PROCONTROL universal input module.
Q5: What systems use ABB 81EU01E-E?
It is associated with the legacy ABB PROCONTROL process-control architecture, particularly power-generation and industrial process applications.
Q6: Is the same part as 81EU01E-E?
It is the commonly associated ABB order number for the 81EU01E-E module. Before shipment, the customer’s existing label should still be checked because some older ABB records and reseller databases contain inconsistent part-number references.
Q7: Can I replace 81EU01E-E with another 81EU01 variant?
Do not substitute based only on the 81EU01 family name. Verify the suffix, order number, hardware revision, system station, configured input functions, and terminal arrangement.
Q8: What should I provide for compatibility checking?
A clear photo of the installed 81EU01E-E, the complete label, revision marking, cabinet/rack position, and the associated terminal/interface assembly will make compatibility verification much more reliable.
