3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Model | PLX52-MBP-MCM4 |
| Product Type | Protocol Gateway |
| Primary Protocols | Modbus Plus (MB+) ↔ Modbus RTU/ASCII |
| Modbus Plus Port | 1 × MB+ (typically DB9, 1 Mbps) |
| Serial Ports | Up to 4 × RS-232/422/485 (configurable) |
| Operating Mode | Modbus Plus Master/Slave; Modbus Master/Slave |
| Mounting | DIN-rail (standalone) |
| Configuration | ProSoft Configuration Builder / web tools |
| Typical Power | 24 V DC |
| Primary Application | Legacy Modbus Plus network integration |
4. Product Introduction (Anti-Template)
The ProSoft PLX52-MBP-MCM4 is a standalone protocol gateway designed to connect devices on a Modbus Plus network with Modbus serial (RTU or ASCII) devices. It provides one Modbus Plus port and multiple independently configurable serial ports, allowing flexible master or slave operation on both sides of the gateway.
The module is commonly used when integrating older Modbus Plus equipment (such as Modicon PLCs, drives, or remote I/O) into systems that primarily use serial Modbus devices, or when expanding an existing MB+ network with serial instrumentation. Configuration is performed through ProSoft software tools, which allow mapping of data between the two protocol domains. As a DIN-rail mounted standalone unit, it does not require a PLC backplane and can be installed near the field devices or in a control cabinet.

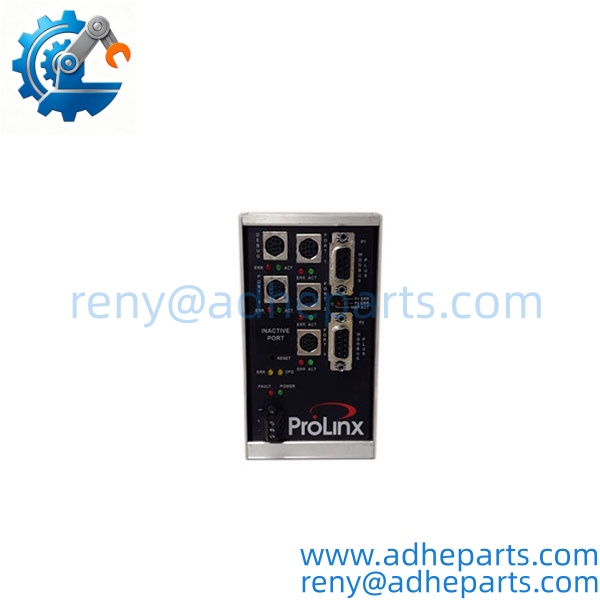

5302-MBP-MCM4

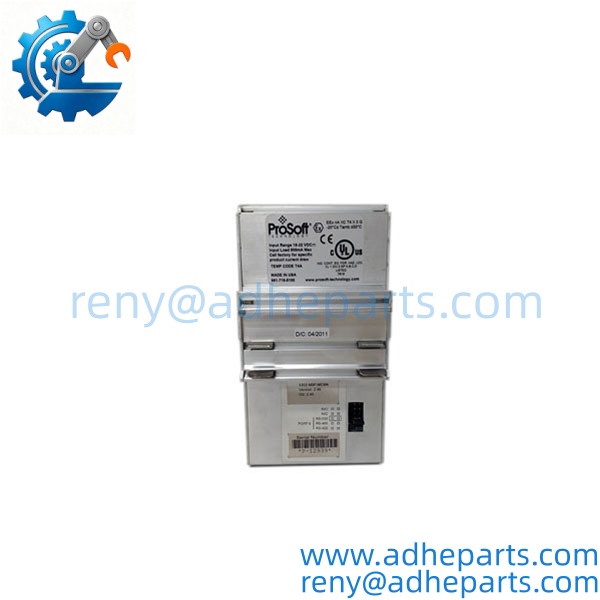

5302-MBP-MCM4

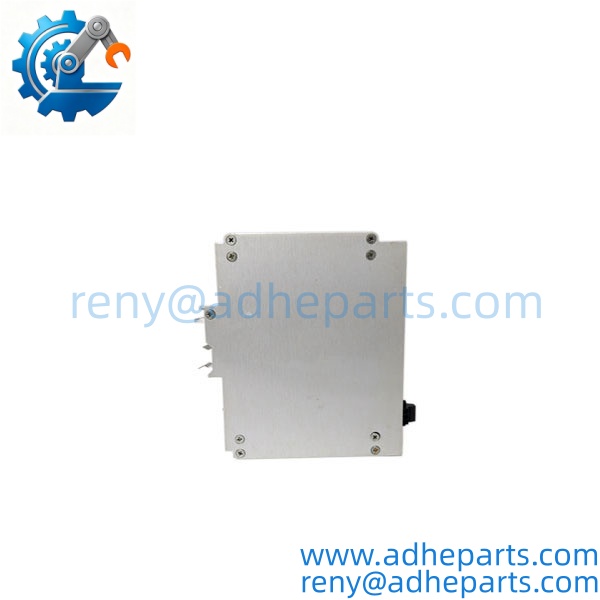

5302-MBP-MCM4

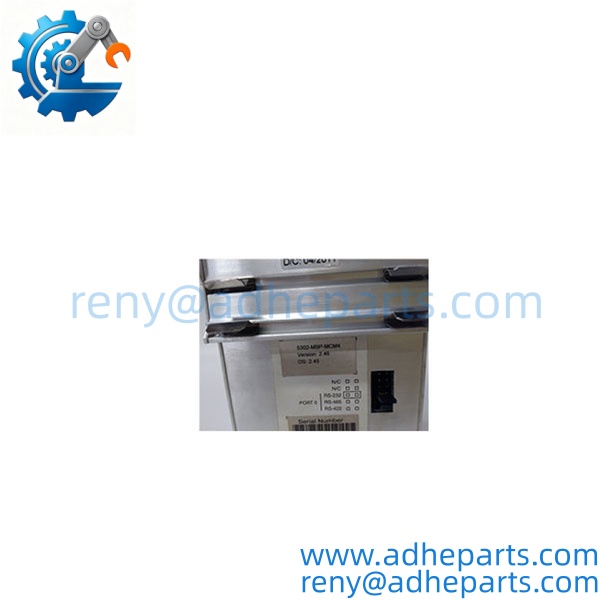

5302-MBP-MCM4
5. QC, Procurement & Logistics SOP
- Inbound Verification – Confirm full model number (PLX52-MBP-MCM4), firmware revision, connector condition, and any configuration labels. Photograph all identifiers.
- Functional Testing – Apply power, verify status LEDs, and confirm basic network recognition on both Modbus Plus and serial sides where test equipment is available.
- QA & Packaging – Protect the serial and MB+ connectors, clean the unit, and pack in anti-static protective packaging.
- Global Logistics & Export Compliance – Classify under the correct HS code for industrial communication gateways. Packaging must protect against electrostatic discharge and mechanical shock; export documentation is prepared to minimize customs delays.
6. Technical Pitfalls & Integration Warnings
Network Node Addressing – Modbus Plus requires unique node addresses. Duplicate addresses will prevent proper token circulation.
Serial Port Configuration – Each serial port must be correctly set for RS-232, RS-422, or RS-485, along with matching baud rate, parity, and wiring. Incorrect settings are a common source of communication failure.
Data Mapping Limits – Carefully plan the register mapping between MB+ and Modbus serial. Exceeding internal buffer or command list limits can cause data loss or high latency.
Power and Grounding – Use a clean 24 V DC supply and proper grounding practices. Noise on the power or serial lines can disrupt communication.
7. Frequently Asked Questions (FAQ)
What is the realistic global lead time for a verified PLX52-MBP-MCM4?
As a specialized protocol gateway, availability depends on surplus stock. Typical lead time after verification is 5–15 business days plus standard shipping.
What protocols does the PLX52-MBP-MCM4 convert?
It converts between Modbus Plus (MB+) and Modbus RTU/ASCII serial.
How many serial ports does it have?
Up to four independently configurable serial ports.
Is it a backplane module or standalone?
It is a standalone DIN-rail mounted gateway.
What software is used for configuration?
ProSoft Configuration Builder (or equivalent ProSoft tools for the ProLinx series).
Is the module still in production?
ProSoft has evolved its gateway portfolio. The PLX52 series is a mature product; newer gateways may be recommended for new designs, but the PLX52-MBP-MCM4 remains available for existing installations.
What should be confirmed before ordering a replacement?
Exact model number, required number of serial ports, Modbus Plus network baud rate and node addressing, and compatibility with the existing serial devices.
