Allen-Bradley 81001-450-53-R | Legacy Drive Part, New Original

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

3. Key Technical Specifications

Do not order against this table alone. I cannot confirm the component type, electrical ratings, or mechanical specifications from the model number. Match every line against the OEM datasheet and the label on your existing unit.

4. Product Introduction

The Allen-Bradley 81001-450-53-R is an Allen-Bradley component whose exact function I cannot confirm from the model number alone. The 81001- prefix appears in some legacy Reliance Electric and Allen-Bradley drive and motor component numbering, but I cannot tell you whether this is a drive board, a power component, a motor part, or a retrofit kit. I am not going to guess.

Here is what I can tell you as a straight answer: on legacy drive and motor hardware, compatibility is model-specific and often revision-specific. A component that fits one drive may not function correctly in another if the voltage class, the current rating, or the connector arrangement varies. Before you order, read the label on the existing unit and cross-reference it against the OEM datasheet for your drive or machine. If you send me a photo of the part and the drive model plate, I will confirm what you are looking at.

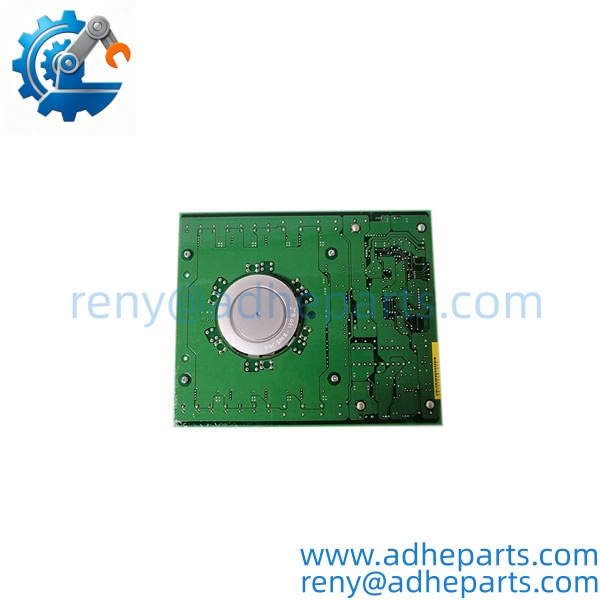

81001-450-53-R

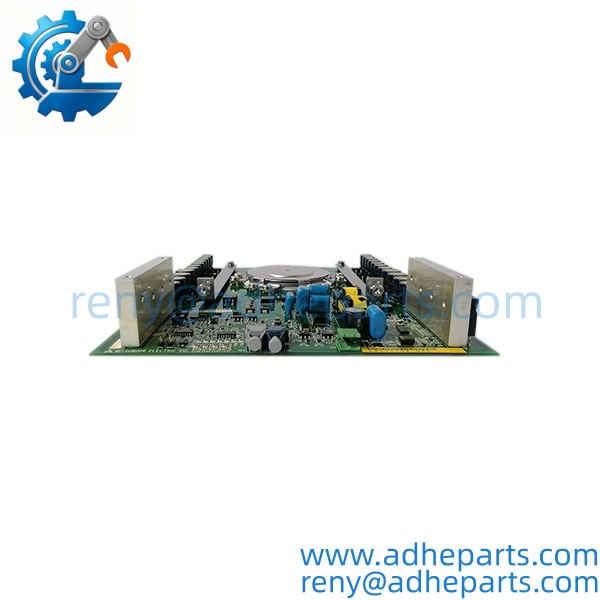

81001-450-53-R

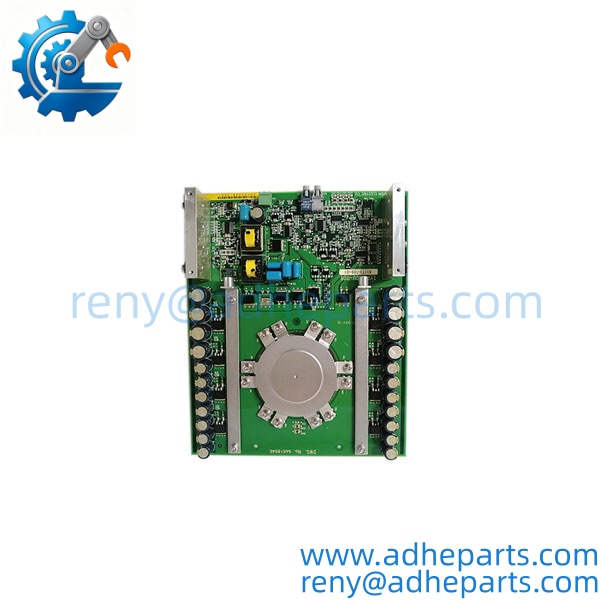

81001-450-53-R

5. Application Scenarios & Field Experience

Part 1 – Narrative Paragraph

The failure that costs the most on a legacy drive component is a mismatched revision or rating that passes a bench check and still fails in the cabinet. I have seen a plant replace a drive board with a newer revision and then chase a “drive fault” for a week. The board was fine. The drive firmware expected a specific revision, and the new one would not initialize. On Allen-Bradley and Reliance drive hardware, the revision suffix is not a cosmetic detail — it governs the firmware image and sometimes the connector keying. That is the rule that matters more than any single specification on the datasheet.

Part 2 – Numbered List (Application Scenarios)

1. Metals – Rolling Mill Drive Cabinets – The component handles a control or power function inside the drive cabinet. A failed component drops the drive offline and stops the mill stand.
2. Pulp & Paper – Winder and Rewinder Drives – The component passes control or power signals between the drive and the motor. A failure causes tension swings that operators blame on the mechanical brake.
3. Cement – Kiln and Mill Drive Controls – The component carries status and fault data from the drive to the plant DCS. A failed component leaves the operator without visibility on the drive condition.
4. Marine – Thruster and Winch Drives – The component interfaces the drive to the vessel’s control system. Replacement is often the only path when the OEM no longer stocks the revision in your build.

Part 3 – Short Field Story

A steel plant in the Midwest had a rolling mill drive that would trip on a control fault every time the operator changed the speed reference. The crew had replaced the drive control board and the network cable. The fault kept coming back. We asked for the component revision and the drive firmware version before shipping anything. It turned out the replacement component the plant had installed months earlier was a different revision than the original — same base part number, different suffix. The drive was rejecting the component under load, and the fault only appeared when the speed reference changed. We supplied a matching revision, and the trips stopped. The component had been fine — the revision was wrong.

6. Standard Operating Procedure (SOP) for Quality Control

• Visual & Origin Inspection – We verify the Allen-Bradley or Reliance marking, the 81001-450-53-R model string, and the date code. We inspect connectors, terminals, and the housing for cracks, corrosion, or moisture ingress. A component with a damaged connector or evidence of rework is rejected.
• Part Number and Revision Documentation – We read and photograph the full part number, the revision suffix, and any serial number or date code. That record ships with the component so you can compare it against the unit you are replacing.
• Compatibility Cross-Check – We verify the part number against the OEM documentation for the drive model and firmware revision you specify. A component that does not match the requested application is set aside rather than shipped.
• Power-Up Self-Test – For electrical components, the unit is powered on a bench fixture at the specified voltage. We verify it initializes without a fault and that the status indicators show normal operation.
• Signal Path Verification – For signal conditioning components, we apply a known input and measure the output against the OEM specification. Accuracy must stay within the datasheet limit.
• Isolation Test – We apply the rated isolation voltage between circuits and between a circuit and ground. Leakage current must stay below the datasheet limit.
• ESD-Safe Packaging – The component is wrapped in anti-static film, seated in a conductive foam insert with the terminals protected, and packed in a double-wall carton with static warning labels.

7. Frequently Asked Questions (FAQ)

Q1: What is the function of the Allen-Bradley 81001-450-53-R?

A: I cannot confirm the exact function from the model number alone. The 81001- prefix appears in some legacy Reliance Electric and Allen-Bradley drive and motor component numbering, but I cannot tell you whether this is a drive board, a power component, a motor part, or a retrofit kit. Send us a photo of the label and the drive or machine it came out of, and we will confirm it against the OEM documentation before you order.

Q2: Is this component compatible with all Allen-Bradley drives?

A: No. Legacy drive components are model-specific and often revision-specific. A component that fits one drive may not function correctly in another if the voltage class, current rating, or connector arrangement varies. Confirm compatibility against your drive’s documentation before ordering.

Q3: What is the warranty on this component?

A: We offer a 12-month warranty from the ship date. It covers manufacturing defects under normal operating conditions. It does not cover damage from incorrect installation, mechanical impact, or operation beyond the rated range. For electrical components, the warranty is void if the part shows evidence of overvoltage or reversed polarity. Every component ships with a test report where applicable.

Q4: Do you actually have this in stock?

A: This is legacy inventory, and I will not pretend otherwise. Stock on Allen-Bradley and Reliance components of this class varies by revision, and the exact suffix you need may not be on the shelf. Confirm availability before you plan an outage. If we are out, we will tell you what we actually have rather than quote a date we cannot hold.

Q5: Any installation pitfalls I should watch for?

A: Four. First, power down the drive and let the DC bus discharge before inserting or removing the component — the bus capacitors hold a lethal charge. Second, record the revision suffix and any jumper or switch settings from the old component before you remove it. Third, confirm the revision and rating on the replacement match the component you are removing. Fourth, after the swap, verify the drive recognizes the component and the signal or power path is correct before you return the drive to service. A component that powers up is not necessarily functioning correctly.
