Description
Key Technical Specifications
- Nominal Input Voltage: 220 VAC, 47–63 Hz
- Maximum Input Power: 1250 VA
- Max Input Current: 6.7 A
- Primary Output: Regulated 24 VDC
- Input Protection: Integrated 10 A time-delay circuit breaker

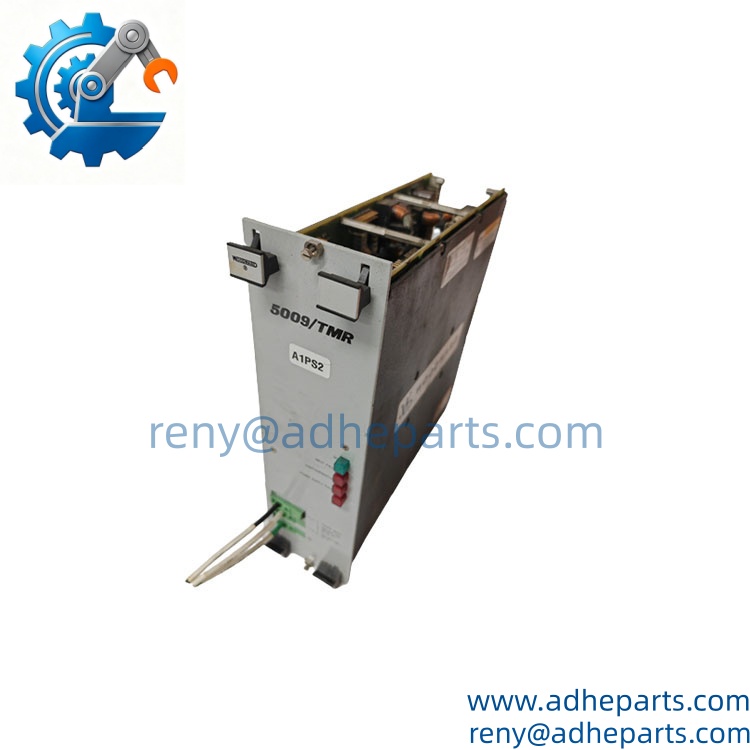

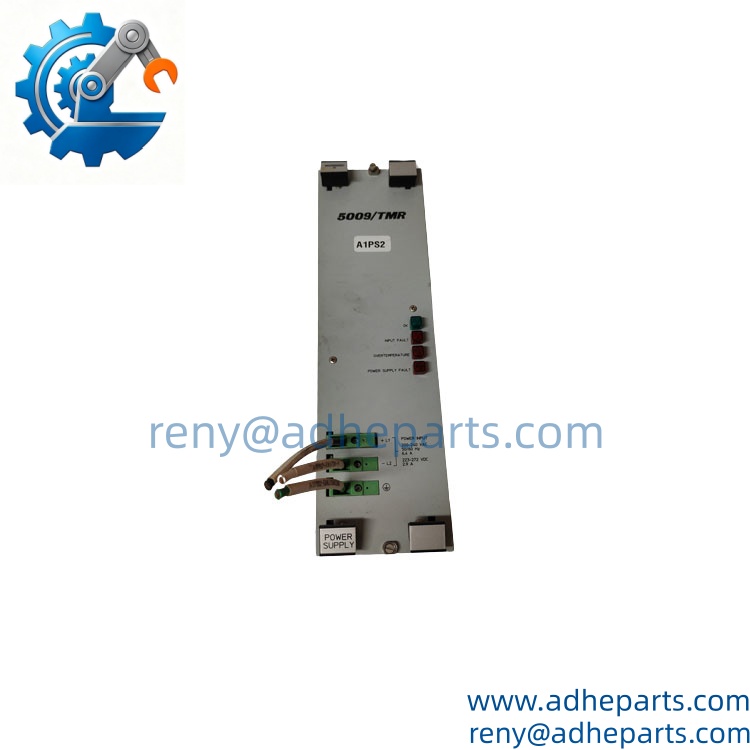

- Status Indicators: Input Fault, Power Fault, Over-Temp, System OK LED
- Operating Temperature Range: -40 °C to +70 °C
- Humidity Rating: 5% to 90% non-condensing
- Rack Compatibility: MicroNet TMR main control chassis
- Physical Form: Standard rack-mount power assembly
- Holdup Time: Minimum 1 AC cycle at rated input voltage
Product Introduction
Unlike auxiliary power boards, the Woodward 5501-381 delivers primary power to every processor and I/O card within the MicroNet TMR chassis. Degradation inside this unit often triggers random, hard-to-trace communication faults long before a full power failure occurs. Honestly, scheduling periodic power supply inspection eliminates costly unplanned turbine shutdown events at remote generation sites.
QC, Procurement & Logistics SOP

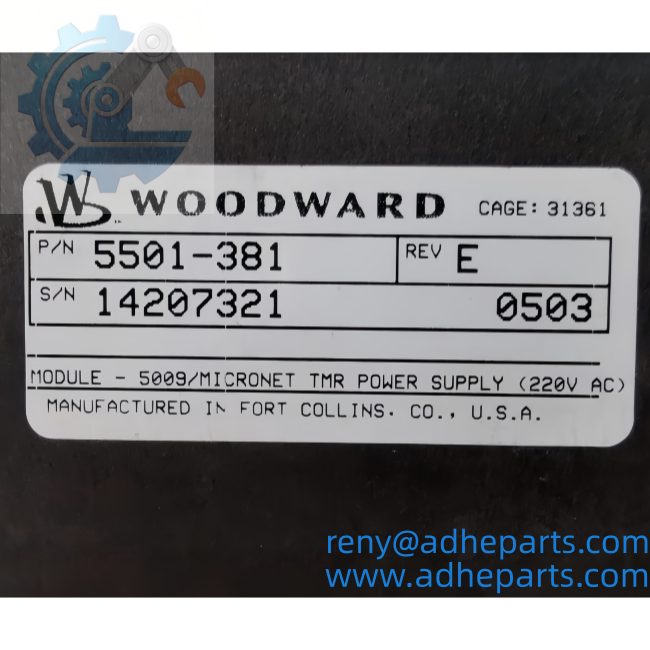

- Inbound Verification: Inspect original Woodward front panel labeling, cross-reference serial records for origin tracing, and check housing for impact damage or signs of prior disassembly.
- Live Rig Testing: Run extended power-on cycling, verify stable voltage output under simulated rack load, and confirm all four front-panel LED fault indicators trigger correctly.
- QA & Anti-Static Packaging: Encase the unit inside static shielding materials, surround with shock-absorbing foam, and mark cartons for sensitive turbomachinery control hardware.
- Global Logistics & Export Compliance: Apply precise HS classification for turbine control power assemblies. Packages are reinforced for air or sea transit, with all supporting documentation prepared to streamline customs processing — though customs clearance in the EU might add 2 days.
Technical Pitfalls & Integration Warnings
- Firmware Rev Mismatch: Older MicroNet TMR chassis firmware cannot fully interpret fault diagnostic data from newer production batches of 5501-381. One gas-fired plant installed the unit without updating system software, losing over-temperature warning visibility for weeks.
- Improper Chassis Slot Placement: This supply occupies a dedicated power bay in the main rack. A technician once fitted it into an I/O slot, and the chassis refused to complete its initialization sequence entirely.
- Poor Cabinet Ventilation: Blocked airflow around the power unit accelerates internal component wear. Continuous operation near the upper temperature limit cuts expected service life significantly.
- ESD destruction during unboxing: Removing the unit from shielding packaging without a grounded wrist strap risks damaging onboard regulation circuits. Static damage frequently only manifests under sustained thermal load.
Frequently Asked Questions (FAQ)
Q: What lead times apply if current inventory runs out?A: In-stock orders ship within 1–3 business days. If stock depletes, component sourcing lead times generally extend to 5–8 weeks subject to factory production schedules.Q: Can I select air freight or sea freight for this Woodward TMR power supply?A: Both transit options are available. Air freight shortens delivery windows with higher transport cost; sea freight lowers expense with longer transit durations. All shipments include full tracking records.Q: Does the 5501-381 support hot-swap while the MicroNet TMR rack remains energized?A: Hot removal or insertion is not permitted. Performing swap work under power risks backplane short circuits and permanent damage to adjacent control hardware.Q: Is the 5501-381 backward compatible with older MicroNet TMR chassis generations?A: Physical bay fit matches legacy racks, but stable fault reporting depends on matching system firmware revisions. Compatibility cannot be confirmed without bench validation prior to site installation.Q: What documentation is provided to support international customs clearance?A: Commercial invoice, packing list, and formal part specification documentation are included. Additional certification paperwork can be prepared upon advance written request.Q: Are all units fully bench tested before shipment?A: Every available module undergoes power cycling and load stability validation. Test summary records can be shared for review prior to dispatch.Q: What operating conditions shorten the usable service life of this power supply?A: Persistent cabinet dust buildup, cyclic temperature swings, and continuous operation above 65 °C degrade internal power regulation hardware. Maintain regular cabinet air filter replacement cycles.
