Description
Key Technical Specifications
- Input Voltage Range: 18–32 VDC (nominal 24 VDC)
- Regulated Output: 5 VDC ±5%
- Maximum Output Current: 10 A
- Required Chassis Slot: First left slot of MicroNet TMR kernel sub-chassis

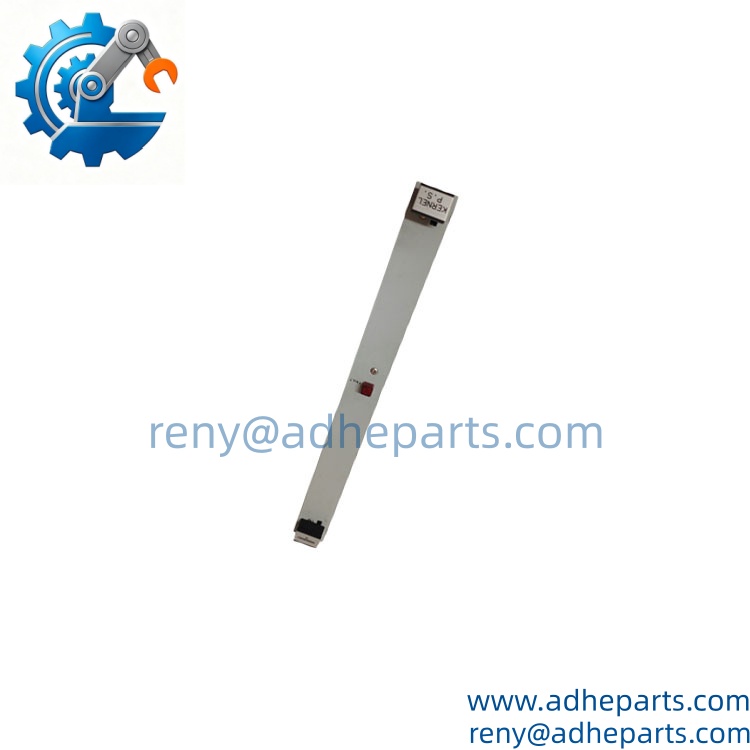

- Indicator: Single front-panel LED for power operational status
- Operating Temperature: -20 °C to +70 °C
- Humidity Rating: 5% to 90% non-condensing
- Physical Housing: Shielded metal industrial enclosure
- Certified Locations: Non-hazardous areas, Class I Division 2 Groups A–D
- Matching CPU: TMR040 series processor module

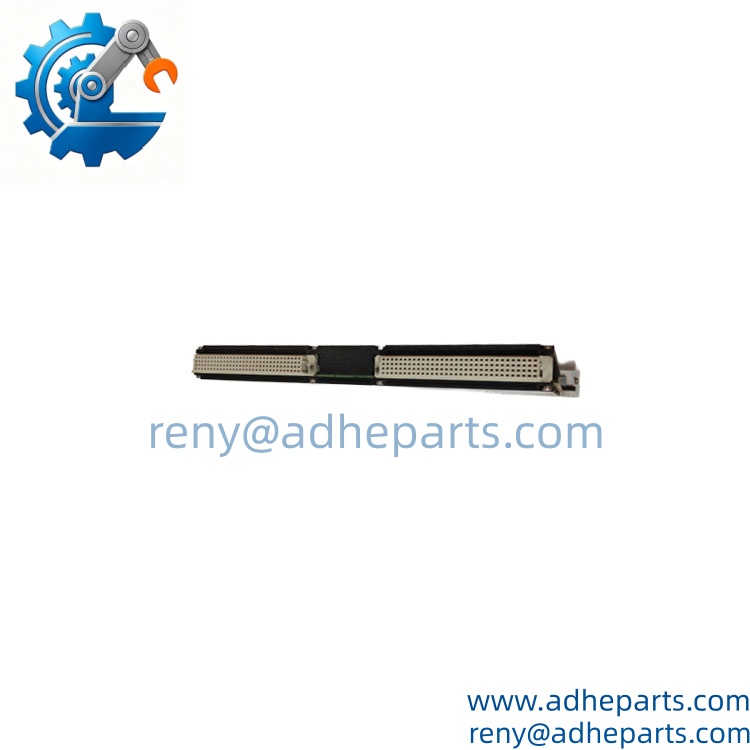

- Backplane Interface: Proprietary MicroNet TMR rack connector
Product Introduction

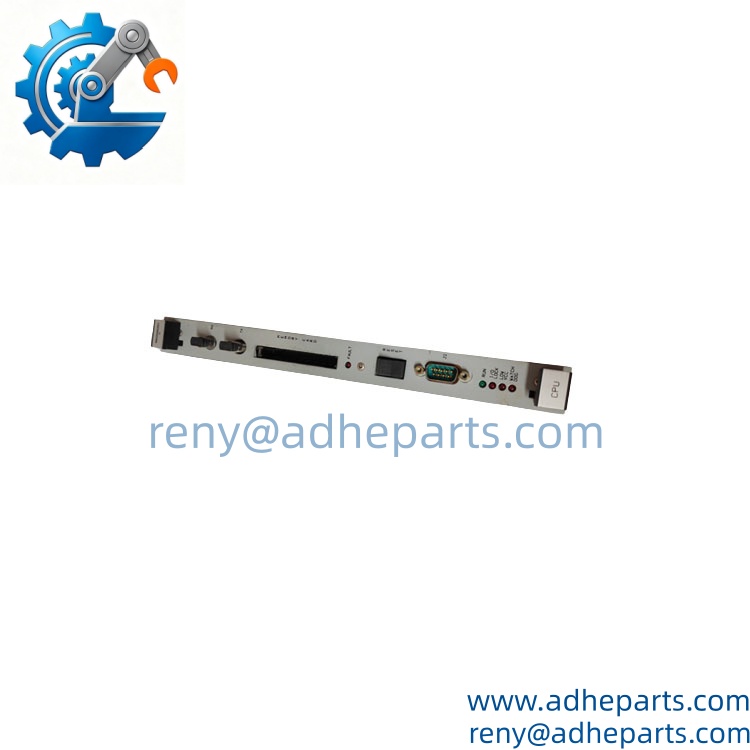

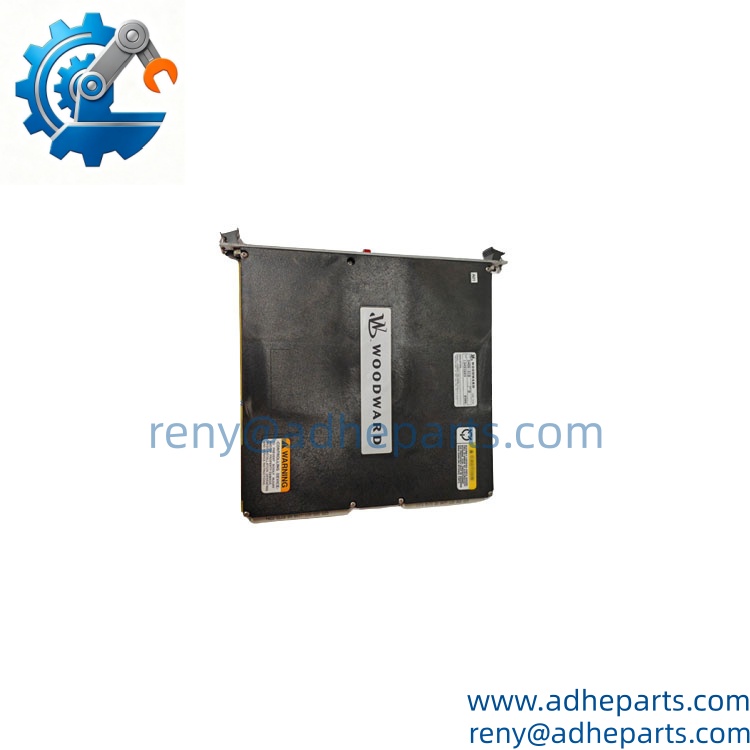

When a TMR kernel power unit drifts out of regulation, turbine control logic begins intermittent fault reporting long before full shutdown occurs. The Woodward 5466-318 delivers tightly stabilized 5 VDC power to all core logic boards within the MicroNet TMR sub-chassis. This unit occupies a fixed slot position, and improper placement will prevent full system initialization. Honestly, verifying slot location before power-up avoids hours of unnecessary rack troubleshooting.
QC, Procurement & Logistics SOP

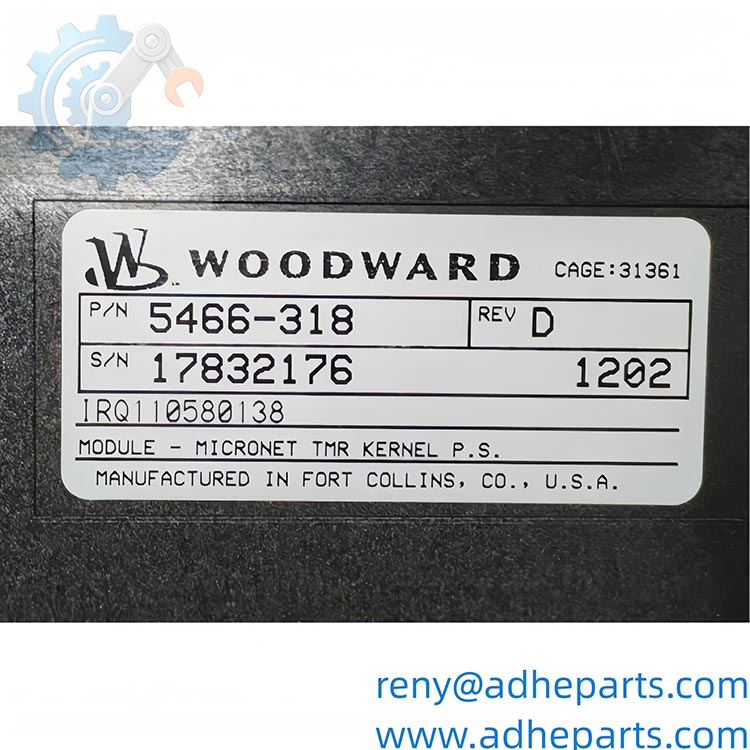

- Inbound Verification: Inspect original Woodward labeling, cross-check serial identifiers for origin tracing, and examine the metal housing for dents or evidence of prior disassembly.
- Live Rig Testing: Complete multiple power-on cycles, validate steady 5 VDC output under simulated load, and confirm LED status indicator functions correctly.
- QA & Anti-Static Packaging: Seal each module inside static shielding bags, cushion with rigid foam, and label cartons for sensitive turbomachinery control hardware.
- Global Logistics & Export Compliance: Assign accurate HS classification for turbine control power assemblies. Packages are reinforced for air or sea transit, with all supporting documentation prepared to streamline customs processing — though customs clearance in the EU might add 2 days.
Technical Pitfalls & Integration Warnings
- Firmware Rev Mismatch: Older MicroNet TMR chassis firmware cannot fully report diagnostic data from newer production batches of 5466-318. One power plant site installed the unit without updating system software, losing PSU fault alert visibility for several weeks.
- Required Slot Position Error: This module must occupy the leftmost kernel slot. A field technician installed it in a secondary slot, and the rack failed to complete startup sequence entirely.
- Input Voltage Drift Risk: Unfiltered 24 VDC supply with frequent voltage spikes accelerates internal regulator wear. Many unexplained early failures trace back to poor upstream power conditioning.
- ESD destruction during unboxing: Removing the unit from shielding packaging without a grounded wrist strap risks damaging precision regulation circuits. Static damage often only triggers instability under full thermal operating load.
Frequently Asked Questions (FAQ)
Q: What lead times apply if current inventory runs out?A: In-stock orders ship within 1–3 business days. If stock depletes, component sourcing lead times generally extend to 5–8 weeks subject to factory production schedules.Q: Can I select air freight or sea freight for this Woodward kernel power module?A: Both transit options are available. Air freight shortens delivery windows with higher transport cost; sea freight lowers expense with longer transit durations. All shipments include full tracking records.Q: Does the 5466-318 support hot-swap while the MicroNet TMR rack remains energized?A: Hot removal or insertion is not permitted. Performing swap work under power risks backplane short circuits and permanent damage to adjacent kernel modules.Q: Is the 5466-318 backward compatible with older MicroNet TMR chassis generations?A: Physical slot fit matches legacy TMR sub-chassis, but stable operation depends on matching TMR040 CPU hardware and system firmware revisions. Compatibility cannot be confirmed without bench validation prior to site installation.Q: What documentation is provided to support international customs clearance?A: Commercial invoice, packing list, and formal part specification documentation are included. Additional certification paperwork can be prepared upon advance written request.Q: Are all units fully bench tested before shipment?A: Every available module undergoes power cycling and load stability validation. Test summary records can be shared for review prior to dispatch.Q: What operating conditions shorten the usable service life of this kernel power supply?A: Persistent cabinet dust accumulation, cyclic temperature swings, and sustained operation above 65 °C degrade internal regulator components and shorten expected service life. Stick to scheduled cabinet air filter maintenance cycles.
