Product Introduction
When a molded‑case breaker frame degrades, nuisance tripping or failure‑to‑trip can expose downstream drives, PLC racks and motor‑loads to destructive fault‑current events.
This KW3400F is the empty mechanical base frame for Eaton Series‑C K‑family MCCBs. It does not ship with trip‑unit pre‑installed; site‑matching trip‑module must be fitted before commissioning. It supports bolt‑on panel mounting or plug‑in adapter kits for drawer‑style cabinets —though your mileage may vary depending on proper lug‑torque and ambient cabinet temperature derating。

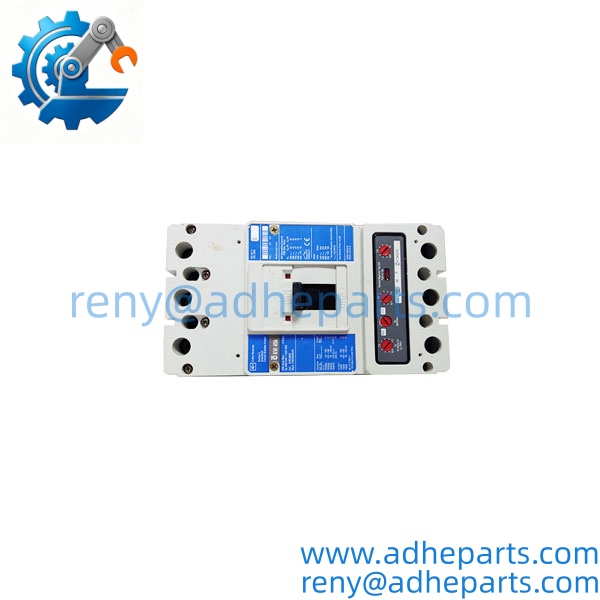

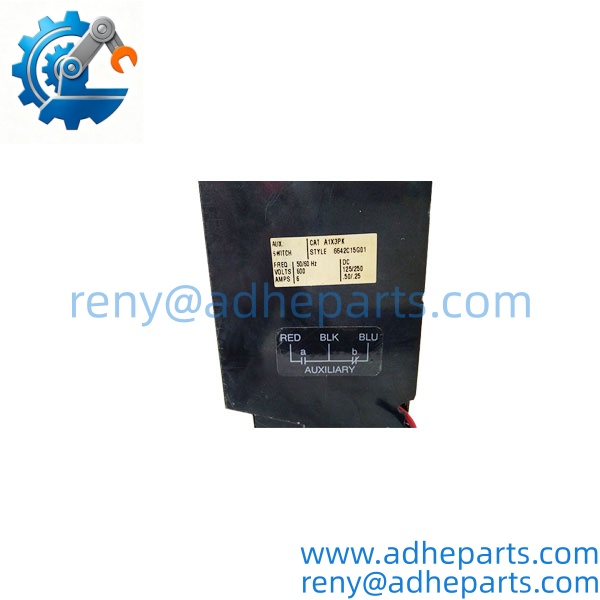

KW3400F
KW3400F

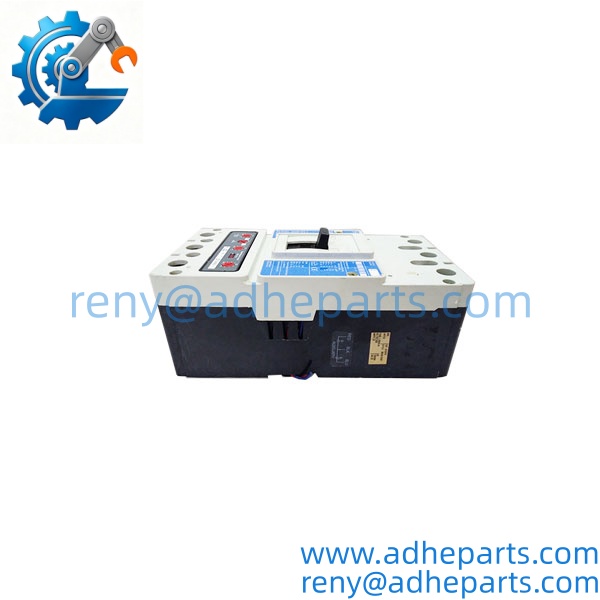

KW3400F
Key Technical Specifications
| Parameter | Value |
|---|---|
| Frame Size | K‑Frame 400AF |
| Pole Count | 3‑Pole |
| Rated Voltage | 600 VAC, 250 VDC |
| Frame Current Rating | 400 A (trip‑unit selects operating current) |
| Interrupt Capacity | 35 kAIC @480 VAC |
| Trip‑Unit Compatibility | Interchangeable Series‑C thermal‑magnetic trip‑units |
| Mounting Options | Bolt‑on standard, optional plug‑in adapter kit |
| Terminals | Lugs / terminal hardware ordered separately |
| Certifications | UL489, CSA, IEC 60947‑2 compliant |
| Operating Ambient | ‑20 °C to +60 °C (current‑derate above 40 °C) |
| Mechanical Endurance | 10 000 operating cycles |
Field Application & Technical Pitfalls (The Engineer’s Guide)
This breaker‑frame sees deployment across three common industrial‑plant scenarios. Manufacturing‑plant main‑distribution panels protect large motor‑feeder and VFD‑feeder circuits. Petrochemical‑process‑unit MCC compartments deploy K‑frame MCCBs for high‑current branch‑circuit protection. Power‑plant auxiliary‑power‑distribution cabinets use interchangeable‑trip‑unit frames to standardize spare‑part inventories.
Critical technical pitfalls during replacement:
- Trip‑unit mismatch: KW3400F is frame‑only. Installing wrong‑rating / wrong‑series trip‑unit creates incorrect over‑current setpoints. The trip‑unit locking latch sits at the lower‑center compartment; ensure positive mechanical click‑lock before closing breaker door.
- Terminal‑lug under‑torque: Loose line‑side or load‑side lugs produce thermal hot‑spots under high‑load conditions. Over‑time, heat can damage the molded housing without immediate fault‑trip indication.
- Ambient‑temperature derating ignored: Continuous high cabinet temperature de‑rates allowable operating‑current. Running near‑frame‑rating without accounting for heat‑rise leads to unexplained nuisance thermal tripping.
A maintenance crew swapped a damaged KW3400F frame within a motor‑control‑center bucket. They re‑used an existing trip‑unit pulled from stock without verifying amp‑rating compatibility and torqued cable lugs by hand without torque‑wrench. After several days of normal operation, high‑load motor starts triggered random thermal‑trips. Technicians spent hours investigating motor‑winding faults before discovering mis‑matched trip‑unit and under‑torqued cable lugs. Always verify trip‑unit part‑number compatibility and apply manufacturer‑specified torque values for all cable‑terminations.
Quality Control (QC) SOP & Transparency
- Inbound Verification: Match silkscreen part‑number KW3400F and serial marking against OEM packing documentation. Inspect molded housing for cracks, arc‑blast scorch‑marks. Check operating‑handle mechanical travel and trip‑unit‑cavity latch integrity. Confirm no signs of prior lug‑installation wear.
- Live Rig Testing: Mount frame on test‑bench fixture. Exercise mechanical ON‑OFF‑TRIP cycle sequence multiple times. Verify trip‑unit locking mechanism latches securely. Perform continuity check across pole contacts; confirm open‑state isolation. Check for housing dielectric‑integrity against chassis ground.
- Parameter Testing: Validate mechanical trip‑free‑release function (no manual‑override lock‑out). Inspect for internal‑arc‑chamber physical integrity. Confirm no residual conductive debris inside trip‑unit cavity.
- Final QA & Packaging: Protect main‑contact openings with plastic protective covers. Seal unit inside heavy‑duty anti‑static‑shield bag. Affix QC‑passed label including test‑run timestamp. Pack inside rigid box with foam cushioning to prevent housing shock‑damage in transit.
Frequently Asked Questions (FAQ)
Can I hot‑swap KW3400F inside an energized MCC bucket?No. This is a power‑distribution MCCB frame. De‑energize both line‑side and load‑side power before removing or installing the breaker assembly. Live‑bucket replacement carries severe arc‑flash hazard.
What trip‑units are compatible with KW3400F?Works with Eaton Series‑C K‑Frame interchangeable thermal‑magnetic trip‑units. This frame will not accept J‑frame or L‑frame trip‑modules. Verify exact load‑amp‑rating with OEM datasheet before integration.
What warranty coverage applies for new‑surplus units?Twelve‑month functional warranty applies. Warranty excludes damage from arc‑fault events, under‑torqued lugs, mis‑matched trip‑units, cabinet over‑temperature, or field‑side mechanical impact. Minor shelf‑storage cosmetic marks on molded housing do not void coverage.
How do I tell genuine Eaton OEM surplus hardware from aftermarket copies?Genuine OEM units carry crisp molded‑in Eaton / Cutler‑Hammer branding, consistent‑quality housing plastic, and smooth positive‑feel trip‑unit‑latch action. Counterfeit units often show blurry marking, rough mold‑flash, and weak‑functioning internal latches. Well, technically legitimate factory‑reconditioned units exist, so full mechanical‑cycle bench‑testing serves as final validation.
Will existing wiring require modification after frame‑replacement?If you reuse matching‑spec trip‑unit and original‑spec cable‑lugs, wiring layout stays unchanged. Always re‑torque all cable‑connections per OEM specification after installation.
What symptoms point to a failing breaker‑frame in‑service?Unexplained nuisance tripping, over‑heating breaker‑housing, handle‑position drift, failure to mechanically trip under simulated fault‑conditions, and visible discoloration around cable‑lug terminals. Many of these symptoms can also stem from bad lugs or mis‑sized trip‑unit; isolate frame on test‑bench for confirmation.
Is still in OEM active production?Eaton Series‑C K‑frame family remains supported, though certain sub‑variants are gradually being superseded. Genuine surplus stock availability fluctuates; confirm stock status ahead of planned‑maintenance windows.
