Key Technical Specifications
| Parameter | Value |
|---|---|
| Display | 5.7 inch STN color LCD, 256 colors |
| Resolution | 320 × 240 QVGA |
| Input Type | Membrane function keypad (no touchscreen) |
| Power Supply | 24 V DC, 35 W max consumption |
| Communication | RS485, Uni-Telway, Modbus |
| Programming Software | XBTL1000 |
| Front Panel Rating | IP65 for cabinet door mounting |
| Operating Temperature | 0°C to +50°C ambient |
| Humidity | 10–90% RH, non-condensing |
| Mounting | Panel cutout installation |
| Dimensions | 265 mm × 220.3 mm × 88 mm |
| Weight | 2.6 kg |
Product Introduction

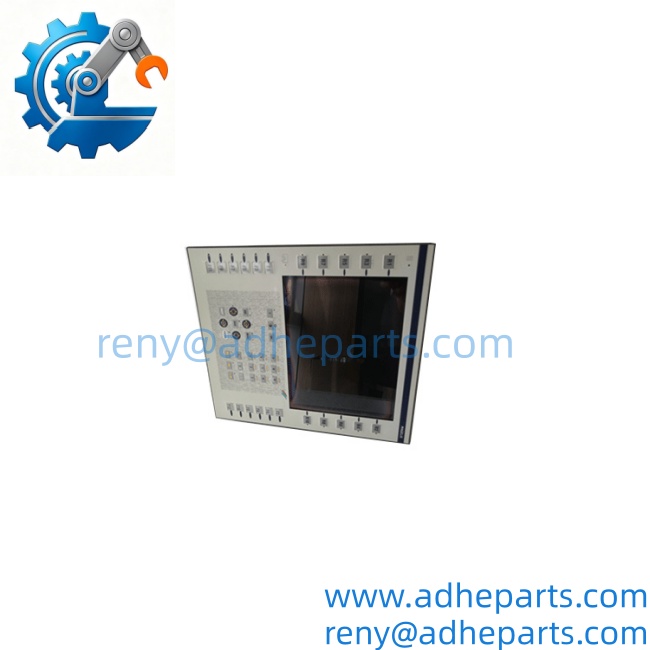

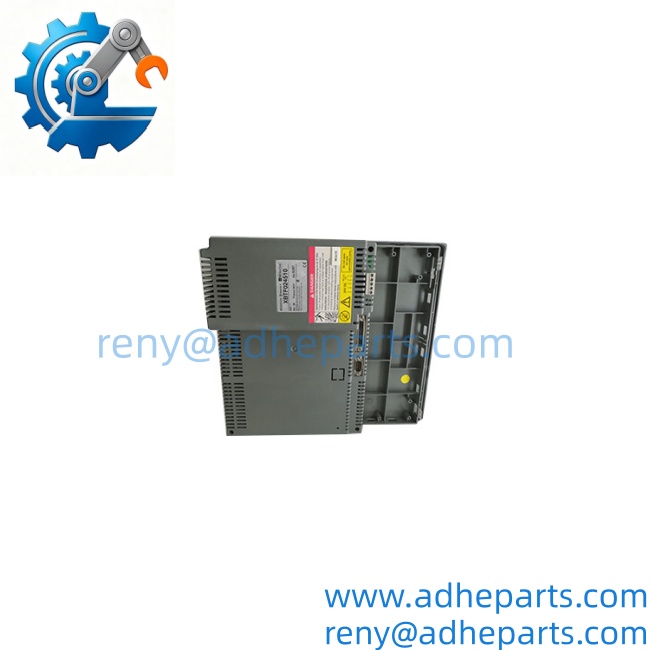

Schneider Electric XBTF024510 is a legacy Magelis XBT-F series operator panel built for panel-door installation. It displays process values, alarm messages and setpoint data, and accepts operator input via integrated membrane keys.
This HMI connects directly to Schneider Modicon PLC platforms over serial links. Its sealed IP65 front panel protects against dust and splash in factory environments, suited for continuous machine operation without touchscreen wear issues.
XBTF024510
XBTF024510
Application Scenarios & Field Experience
Part 1 (Narrative Paragraph)
Many older production lines rely on keypad HMIs that avoid touchscreen scratches and calibration drift. Failed backlights or membrane keypad damage on the XBTF024510 removes operator visibility, forcing line downtime. A direct replacement loads the existing application without full control system upgrade.
Part 2 (Numbered List)
- Packaging machinery: Production recipe selection, fault alarm display for continuous packaging lines.
- Water & wastewater plants: Pump station control and level monitoring on treatment skids.
- Food and beverage manufacturing: Batch setpoint adjustment and production status logging.
- Material handling: Conveyor system operator interface for factory automation.
Part 3 (Short Field Story)
A food processing plant lost display visibility after CCFL backlight failure on their XBTF024510. Operators could not view batch alarms. We supplied a matching replacement panel, downloaded the saved XBTL1000 project file, and validated Modbus communications to the Premium PLC. The production line returned to normal operation and ran without HMI faults for 18 months.
Standard Operating Procedure (SOP) for Quality Control
- Visual & Origin Inspection: Check Schneider branding, membrane keypad integrity, front IP seal; reject units with cracked glass, torn keypad or damaged serial ports.
- Live Rig Testing: Apply 24V DC supply, upload test project, verify keypad response, screen output and Modbus serial handshake.
- Firmware Verification: Record firmware revision in test log; confirm compatibility with your existing XBTL1000 project.
- ESD-Safe Packaging: Seal inside static shielding bag, fitted foam padding, carton printed with ESD handling warnings.
Frequently Asked Questions (FAQ)
Q1: Can I replace XBTF024510 with newer HMIGK5310 directly? A: HMIGK5310 is the modern functional equivalent, but project conversion is required inside Vijeo Designer. The old XBTL1000 project file cannot run natively on the newer panel.
Q2: What warranty applies to the Schneider Electric XBTF024510 HMI? A: We offer a 12-month warranty. Warranty excludes damage from improper supply voltage, broken front seal, physical keypad damage or liquid ingress.
Q3: What is stock and lead time for Schneider XBTF024510? A: Selected units are in stock. Final availability and dispatch timeline will be confirmed after you submit your procurement inquiry.
Q4: Will firmware differences cause communication failures with my existing Modicon PLC? A: Yes. Older firmware releases have different serial protocol timing. We share firmware revision before shipment so your controls team validates handshaking parameters.
Q5: Can I disconnect and swap this while the production process stays online? A: Isolate the control loop before swapping. Power loss to the HMI itself will not trip the PLC, but operators lose visibility and alarm acknowledgement during replacement.
