ABB CP450 T-ETH | CP400 Series HMI Operator Panel

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

Key Technical Specifications

ABB’s CP450 documentation specifies the 10.4-inch, 640 × 480 TFT display, analog touchscreen, 64K colors, 32-bit RISC CPU, 8 MB Flash ROM, 16 MB RAM, serial interfaces, and 24 VDC supply. The T-ETH version adds Ethernet, while the standard CP450 T does not have Ethernet.

Product Introduction (Anti-Template)

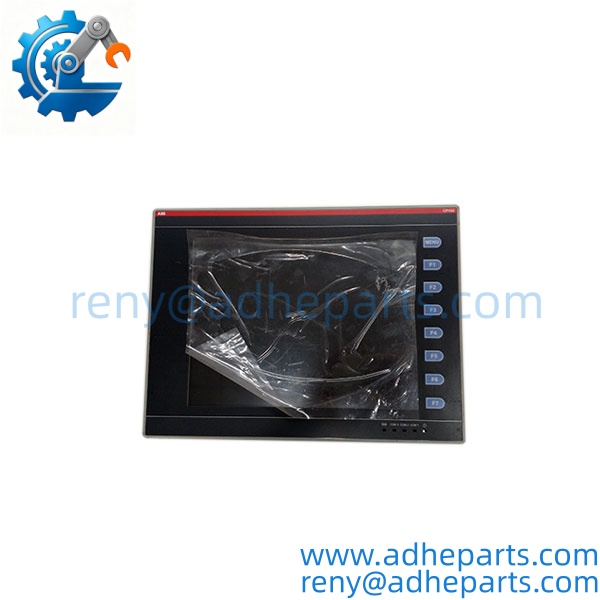

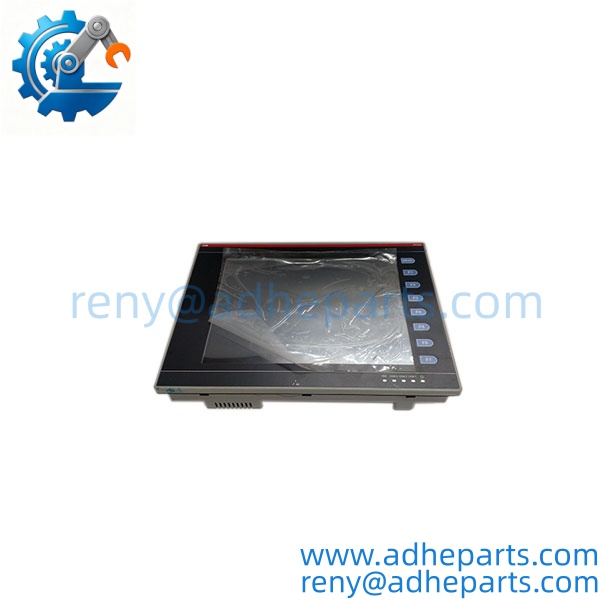

Operating as a large-format operator interface in the ABB CP400 family, the CP450 T-ETH provides a 10.4-inch color TFT touchscreen with 640 × 480 resolution for machine visualization, operator commands, alarms, and recipe handling. The Ethernet-equipped version is intended for applications requiring network communication in addition to the CP450’s serial interfaces. ABB’s CP400 documentation also describes functions including graphics, alarm and event management, recipe management, animation, and ladder-diagram functionality.

The panel uses 24 VDC power and has a front-panel protection rating of IP65/NEMA 4X for indoor use. Its communication hardware includes Ethernet plus COM1, COM2, and COM3 serial interfaces. Honestly, the important procurement detail here is the ETH suffix: CP450 T and T-ETH share the same basic panel platform, but the Ethernet interface is a model-specific difference that should be confirmed before accepting a substitute.

CP450-T-ETH

CP450-T-ETH CP450-T-ETH

CP450-T-ETH

CP450-T-ETH

QC, Procurement & Logistics SOP

1. Inbound Verification

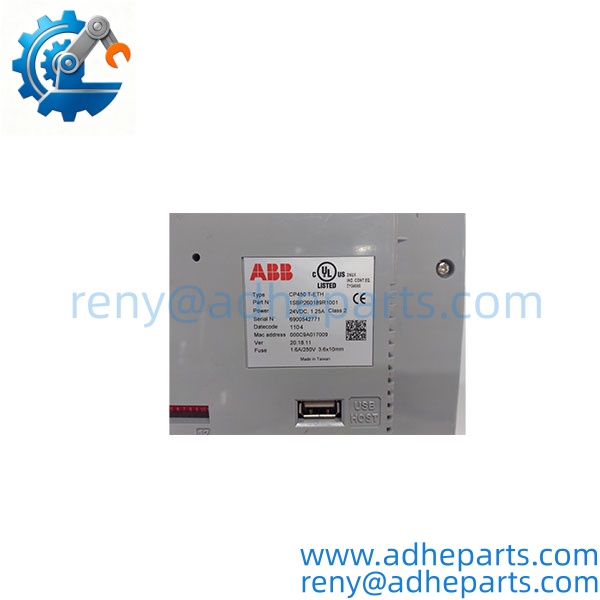

   Check the front-panel model marking for and record the product label, hardware revision, serial information, and condition of the touchscreen and connectors. Confirm that the Ethernet-equipped version is being supplied rather than the visually similar T.
2. Live Rig Testing
   Power the panel from a controlled 24 VDC supply and verify startup, touchscreen response, display uniformity, Ethernet interface, serial communication ports, USB interfaces, and application loading where the appropriate CP400 environment is available. A successful power-on test alone does not prove compatibility with the customer’s PLC application.
3. QA & Anti-Static Packaging
   Inspect the TFT display for dead pixels, backlight abnormalities, scratches, and touch-response problems. Protect the touchscreen surface with a non-abrasive cover and use ESD-safe packaging around the electronic assembly. The rear connectors should be protected against impact during transit.
4. Global Logistics & Export Compliance
   Use rigid protective packaging because the 10.4-inch glass/display assembly is more vulnerable to impact than a standard PLC module. For international shipment, confirm the buyer’s required documentation and accurately describe the equipment as an industrial HMI/operator panel.

Technical Pitfalls & Integration Warnings

1. Project / Firmware Revision Mismatch
   The physical T-ETH does not by itself guarantee compatibility with an existing HMI project. The CP400 family uses dedicated configuration software, and the customer’s project version should be checked before replacing a panel. ABB identifies CP400Soft as the programming software for CP400 operator panels.
2. Ethernet vs. Non-Ethernet Model Confusion
   The T and T-ETH are closely related models, but ABB’s documentation specifically lists Ethernet as available on the T-ETH version and absent on the standard T. If the customer’s existing application communicates through Ethernet, substituting a T can remove a required interface.
3. Wiring / Terminal Incompatibility

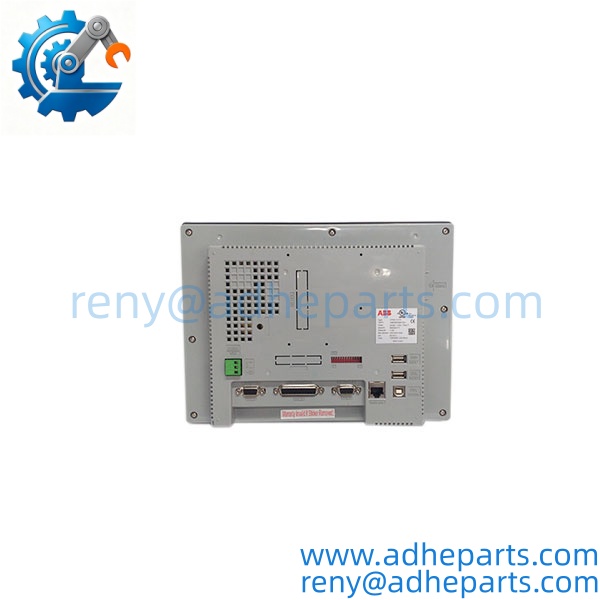

   communication is not limited to Ethernet. COM1 uses a 9-pin connector with RS232/RS485 capability, COM2 uses a 25-pin connector supporting RS232/RS422/RS485, and COM3 uses a 9-pin connector supporting RS422/RS485. The replacement should therefore be checked against the actual cable and PLC communication method rather than the HMI model alone.
4. ESD and Display Damage During Unboxing
   The display and touch layer should be handled carefully. Avoid pressing hard on the TFT panel during inspection, and do not place the unit face-down on a hard surface. Static-control procedures should also be followed when handling the rear electronics and connectors.

Frequently Asked Questions (FAQ)

Q1. What is the ABB T-ETH used for?
It is a 10.4-inch industrial HMI/operator panel in ABB’s family. It provides touchscreen visualization and operator control functions for industrial machinery and automation systems.

Q2. What is the display resolution of T-ETH?
The platform uses a 10.4-inch color TFT LCD with a resolution of 640 × 480 pixels and 64K colors.

Q3. Does T-ETH have Ethernet?
Yes. Ethernet is the distinguishing interface listed for the T-ETH version. The standard T is documented without an Ethernet interface.

Q4. What power supply does T-ETH require?
The documentation specifies 24 VDC ±15% with power consumption below 30 W.

Q5. Can T replace T-ETH?
Not automatically. Although the two panels share the same basic platform, ABB specifically identifies Ethernet as available on the T-ETH version. If the existing application requires Ethernet communication, the non-ETH version should not be treated as an equivalent replacement.

Q6. Is T-ETH still a current ABB product?
The family is now presented by ABB as an early/legacy product range, with some models in limited lifecycle phases. For an existing installation, procurement of a verified spare may therefore be more practical than assuming current-production availability.

Q7. What should I provide when requesting a T-ETH replacement?
Provide the complete model marking, product label or order code if available, a photo of the existing panel, the PLC/controller model, communication method, project/software version, and whether Ethernet is being used. This helps distinguish a genuine T-ETH replacement from a similar-looking variant.
