Description
Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Catalog Number | 1753-L32BBBM-8A |
| Product Family | GuardPLC |
| Controller Series | GuardPLC 1800 |
| Communication Variant | Modbus |
| Operating Voltage | 24V DC |
| Digital Inputs | 24 |
| Digital Outputs | 8 |
| Analog Inputs | 8 |
| High-Speed Counters | 2 |
| Counter Inputs | 3 inputs per counter |
| Counter Resolution | 24 bit |
| User Program Memory | 250 KB |
| Input On-State Voltage | 15–30V DC |
| Input On-State Current | 3.5 mA at 24V DC |
| Operating Temperature | 0–60°C (32–140°F) |
| Storage Temperature | -40–85°C (-40–185°F) |
| Dimensions | 257 × 114 × 66 mm; 80 mm including shield plate |
| Weight | Approx. 1.2 kg |
| Safety Certification | TÜV; certification applies when product is appropriately marked |
Rockwell Automation documentation identifies 1753-L32BBBM-8A as the GuardPLC 1800 controller with Modbus communications, while the closely related 1753-L32BBBP-8A uses Profibus-DP. Rockwell’s release documentation lists the -8A Modbus controller as having 24 digital inputs, 8 digital outputs, 8 analog inputs, and 2 counters.
Product Introduction (Anti-Template)
Operating as the central controller of the GuardPLC 1800 platform, the Allen-Bradley 1753-L32BBBM-8A combines safety logic processing with integrated digital, analog, and counter I/O. The Modbus version provides 24 digital inputs, 8 digital outputs, 8 analog inputs, and two 24-bit high-speed counters, making it a controller rather than a conventional expansion I/O module. Rockwell documentation also identifies the controller as part of the GuardPLC safety system certified for functional-safety applications.
The controller operates from a 24V DC supply and is designed for an operating temperature range of 0–60°C. The documented mechanical dimensions are approximately 257 mm wide, 114 mm high, and 66 mm deep, increasing to 80 mm when the shield plate is included. For replacement procurement, the Modbus suffix is critical: the 1753-L32BBBP-8A is the corresponding Profibus-DP version and should not be treated as a direct communication-equivalent replacement.

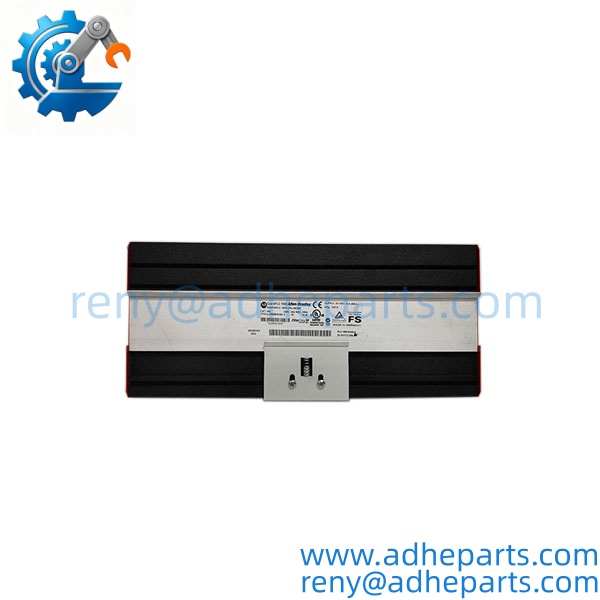

1753-L32BBBM-8A

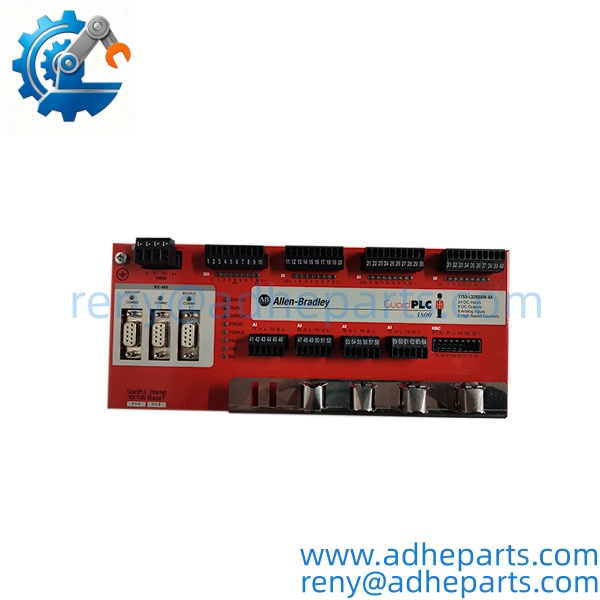

1753-L32BBBM-8A

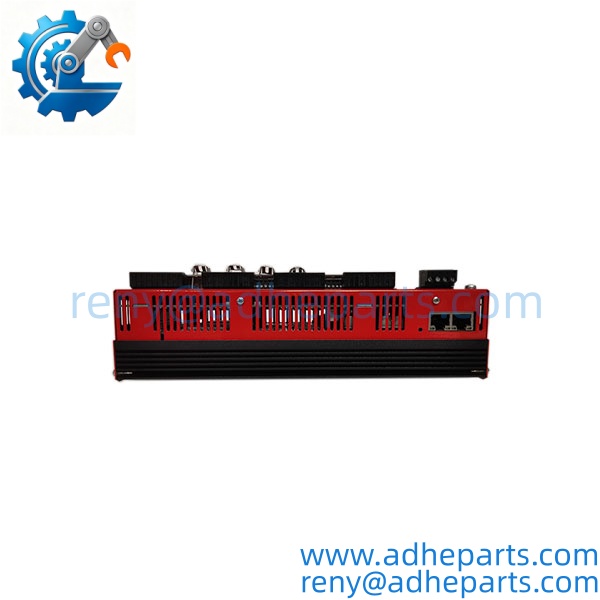

1753-L32BBBM-8A

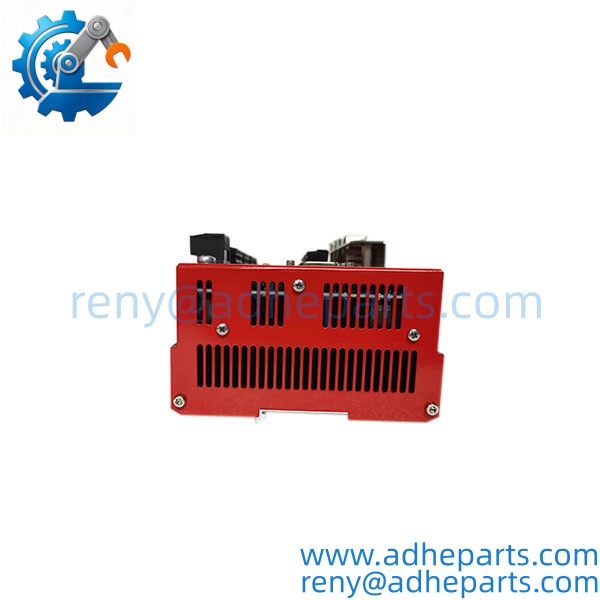

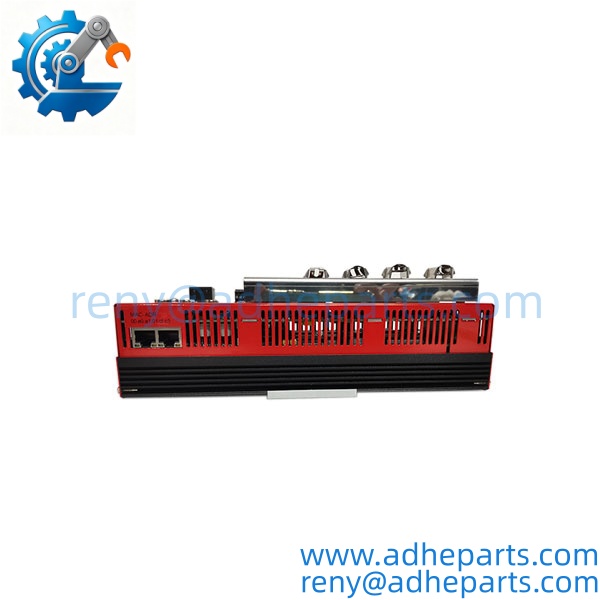

1753-L32BBBM-8A
QC, Procurement & Logistics SOP
- Inbound Verification
Verify the complete catalog number 1753-L32BBBM-8A, manufacturer marking, series, revision, serial number, communication interface, terminal condition, and housing. Confirm that the unit is the Modbus version rather than the visually similar Profibus-DP model. - Live Rig Testing
Where a compatible GuardPLC test environment is available, perform controlled power-up and diagnostic checks. Verify digital input response, digital output operation, analog input behavior, counter channels, controller diagnostics, and Modbus communication. Safety-controller testing should follow the applicable GuardPLC validation procedure rather than a generic PLC bench test. - QA & Anti-Static Packaging
Inspect the enclosure, terminals, connectors, grounding points, indicators, and internal electronics for signs of corrosion, contamination, impact, or previous repair. Package the controller in ESD-safe material with mechanical protection around the housing and connectors. - Global Logistics & Export Compliance
Use moisture-resistant and anti-static packaging for international shipment. Protect terminal areas from impact and prevent movement inside the shipping carton. Provide the applicable commercial invoice, packing documentation, and origin information required for the destination customs process.
Technical Pitfalls & Integration Warnings
- Firmware Rev Mismatch
GuardPLC safety applications depend on the controller firmware and validated application configuration. A hypothetical controller running firmware V2.8 should not simply be substituted into an installation validated around V3.1 without checking compatibility and safety validation requirements. Firmware version, application program, and safety configuration should be verified before commissioning. - DIP Switch / Configuration Errors
Communication and system configuration must match the existing GuardPLC architecture. Incorrect Modbus addressing, communication parameters, or controller configuration can make a physically correct replacement appear defective. Record the original configuration before replacement. - Wiring / Terminal Incompatibility
The 1753-L32BBBM-8A has integrated digital, analog, and counter I/O, so wiring is part of the replacement assessment. Do not assume that another GuardPLC controller with a similar housing has identical terminal assignments. The -8A Modbus model and -8A Profibus model are different communication variants. - ESD Destruction During Unboxing
Static discharge can damage controller electronics before installation. Keep the controller inside its ESD-safe packaging until it reaches the controlled installation area, and use proper grounding procedures when handling the unit.
Frequently Asked Questions (FAQ)
1. What is the Allen-Bradley 1753-L32BBBM-8A?
It is a GuardPLC 1800 safety controller with Modbus communications. It integrates safety control logic with 24 digital inputs, 8 digital outputs, 8 analog inputs, and two high-speed counters.
2. Is 1753- a standard ControlLogix PLC?
No. It belongs to the GuardPLC safety-controller family, not the ControlLogix platform. Replacement should therefore be based on the complete GuardPLC system architecture and safety application, not merely on I/O count.
3. What is the difference between 1753- and 1753-L32BBBP-8A?
The key distinction is the communication interface: 1753- is the Modbus version, while 1753-L32BBBP-8A is the Profibus-DP version. They should not be considered communication-equivalent replacements.
4. What is the controller’s operating voltage?
The GuardPLC 1800 controller operates from a 24V DC supply. The installation documentation should be followed for the required supply protection, grounding, and wiring arrangement.
5. How much user memory does it have?
The published specifications identify 250 KB of user program memory.
6. Can I replace it while the machine is running?
Do not assume that this safety controller supports hot-swapping. Removing or installing a safety controller while energized can interrupt safety functions and may create hazardous conditions. Follow the machine’s lockout/tagout procedure and the applicable GuardPLC installation and validation procedures.
7. What should I provide when ordering a replacement?
Provide the complete 1753- catalog number, controller revision, photos of the nameplate and terminals, existing GuardPLC configuration, firmware information if available, and confirmation that the system uses Modbus rather than Profibus-DP. For safety applications, matching the validated system configuration is as important as matching the hardware catalog number.
