ALSTOM EP3-E-4-A | Industrial Control Component, New Original

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

3. Key Technical Specifications

Do not order against this table alone. I cannot confirm the module type, channel count, or electrical ratings from the model number. Match every line against the OEM datasheet and the label on your existing unit.

4. Product Introduction

The ALSTOM EP3-E-4-A is an Alstom component whose exact function I cannot confirm from the model number alone. The EP3 prefix does not match the Alstom protection, telecom, or drive part-number families I can verify with confidence. I cannot tell you whether this is a protection relay, a control card, or an interface module, and I am not going to guess.

Here is what I can tell you as a straight answer: on legacy Alstom hardware, compatibility is panel-specific and often configuration-specific. The -E-4-A suffix on this number almost certainly governs a rating, a voltage, or a function variant — and a unit with a different suffix may look identical and behave differently. Before you order, read the label on the existing unit and cross-reference it against the OEM datasheet for your panel or rack. If you send me a photo of the part and the panel it came out of, I will confirm what you are looking at.

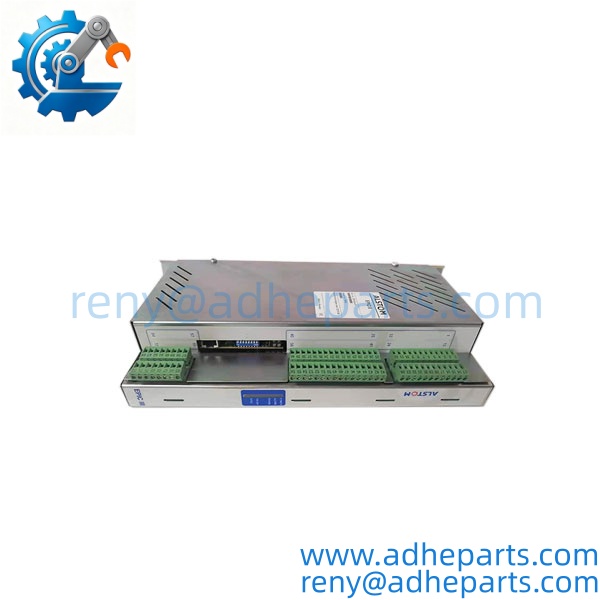

EP3-E-4-A

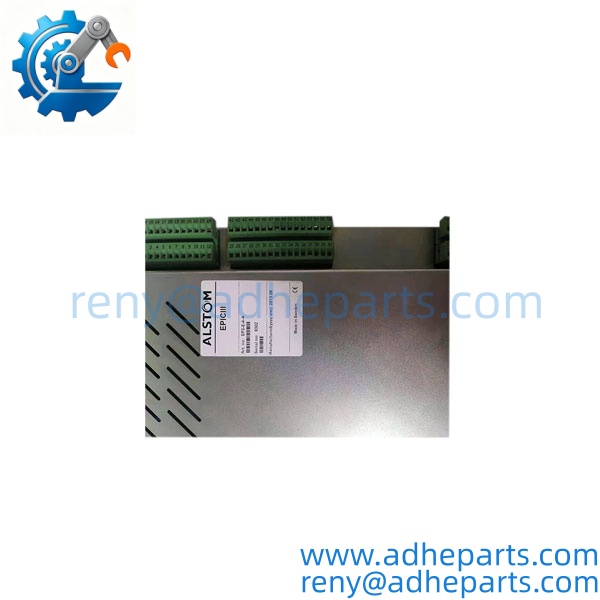

EP3-E-4-A

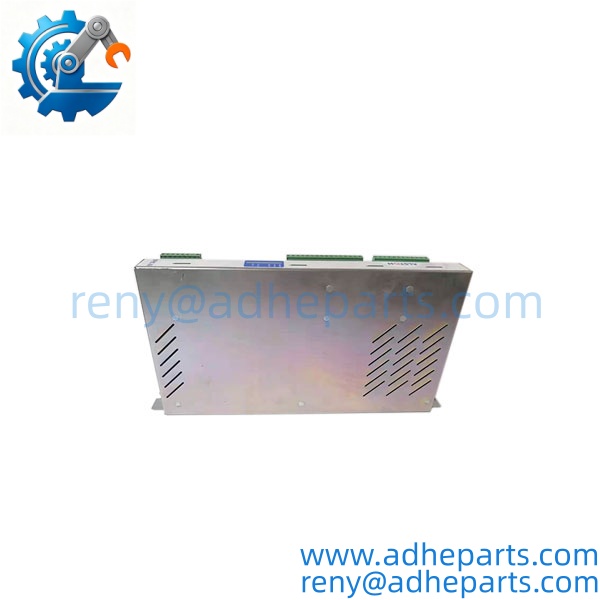

EP3-E-4-A

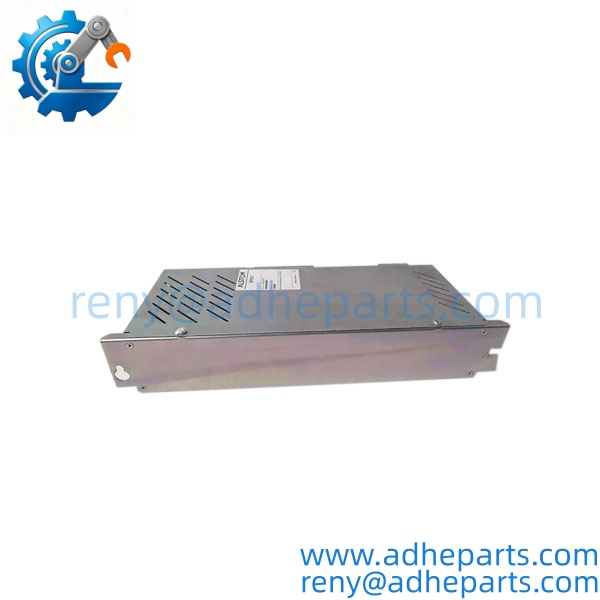

EP3-E-4-A

5. Application Scenarios & Field Experience

Part 1 – Narrative Paragraph

The failure that costs the most on a legacy Alstom module is a mismatched configuration code that passes a bench check and still fails in the panel. I have seen a plant replace a protection module with a different suffix and then chase a “false trip” for a week. The module was fine. The rating or the auxiliary voltage had changed between variants, and the panel wiring no longer matched the module’s configuration. On Alstom hardware of this generation, the suffix is not a cosmetic detail — it governs the rating, the terminal arrangement, and sometimes the auxiliary voltage. That is the rule that matters more than any single specification on the datasheet.

Part 2 – Numbered List (Application Scenarios)

1. Power Generation – Legacy Protection Panels – The module is used in an Alstom protection or control panel for generator, transformer, or feeder protection. A mismatched configuration code causes false trips or a failure to trip, and the operator loses confidence in the protection scheme.
2. Oil & Gas – Compressor Station Control – Used to condition or switch signals from field instruments or to provide protection for rotating equipment. The module must match the panel’s auxiliary voltage and the field device’s signal range.
3. Water Treatment – Pump and Motor Protection – The module provides protection or control for pump motors. A failed module shows up as a nuisance trip or a non-responsive circuit on the operator station.
4. Industrial Plants – Legacy Panel Retrofit – Used where an Alstom control or protection panel is still in service and the OEM no longer stocks the exact variant. Replacement is often the only path short of a full panel upgrade.

Part 3 – Short Field Story

A power plant had a legacy Alstom protection panel on a transformer bay that started logging intermittent “protection fault” alarms. The crew had replaced the field CT and the wiring. The fault kept coming back. We asked for the module suffix before shipping anything. It turned out the replacement module the plant had installed months earlier had a different configuration code than the original — same base part number, different suffix. The rating and the auxiliary voltage did not match the panel, and the fault only appeared under load. We supplied a matching variant, and the alarms stopped. The hardware had been fine — the configuration code was wrong.

6. Standard Operating Procedure (SOP) for Quality Control

• Visual & Origin Inspection – We verify the Alstom marking, the EP3-E-4-A model string, and the date code. We inspect connectors, terminals, and the housing for cracks, corrosion, or moisture ingress. A module with a damaged terminal or evidence of rework is rejected.
• Part Number and Revision Documentation – We read and photograph the full part number, the configuration suffix, and any serial number or date code. We also record the rating and the auxiliary voltage from the module label. That record ships with the module so you can compare it against the unit you are replacing.
• Compatibility Cross-Check – We verify the part number against the OEM documentation for the system you specify. A module that does not match the requested application is set aside rather than shipped.
• Power-Up Self-Test – The module is powered on a bench fixture at the specified auxiliary voltage. We verify it initializes without a fault and that the status indicators show normal operation.
• Function Verification – For protection modules, we verify the pickup and dropout at the configured settings against the OEM specification. For control modules, we verify the switching function and the signal path.
• Isolation Test – We apply the rated isolation voltage between circuits and between a circuit and ground. Leakage current must stay below the datasheet limit.
• ESD-Safe Packaging – The module is wrapped in anti-static film, seated in a conductive foam insert with the connectors protected, and packed in a double-wall carton with static warning labels.

7. Frequently Asked Questions (FAQ)

Q1: What is the function of the ALSTOM EP3-E-4-A?

A: I cannot confirm the exact function from the model number alone. The EP3 prefix does not match the Alstom part-number families I can verify with confidence. Send us a photo of the label and the panel or rack it came out of, and we will confirm it against the OEM documentation before you order.

Q2: What does the -E-4-A suffix mean?

A: On Alstom hardware of this class, the suffix typically governs a rating, a voltage, or a function variant. I cannot confirm what it means for this specific number without the OEM documentation. A unit with a different suffix may look identical and behave differently. Record the full string from your existing unit and match it exactly.

Q3: Is this module compatible with all Alstom protection panels?

A: No. Alstom hardware of this generation is panel-specific and often configuration-specific. A module that fits one panel may not function correctly in another if the rating, auxiliary voltage, or terminal arrangement varies. Confirm compatibility against your panel’s documentation before ordering.

Q4: What is the warranty on this module?

A: We offer a 12-month warranty from the ship date. It covers manufacturing defects under normal operating conditions. It does not cover damage from incorrect installation, mechanical impact, or operation beyond the rated range. For electrical components, the warranty is void if the part shows evidence of overvoltage or reversed polarity. Every module ships with a test report where applicable.

Q5: Any installation pitfalls I should watch for?

A: Four. First, power down the panel and isolate the auxiliary supply before inserting or removing the module. Second, record the full part number, the configuration suffix, the rating, and the auxiliary voltage from the old module before you remove it; these are not always documented elsewhere. Third, confirm the variant on the replacement matches the module you are removing. Fourth, after the swap, verify the module functions correctly in the circuit — for protection modules, test the trip output before you return the system to service. A module that powers up is not necessarily functioning correctly.
