Product Introduction
When your ABB medium-voltage drive or process control system needs reliable internal signal conditioning and control communication performance to ensure the stable operation of large industrial automation equipment, this module acts as the core internal signal processing and communication bridge between the main control unit and the field signal channels.
It is not a standalone PLC device, but a dedicated internal control/interface board deeply integrated into the ABB system architecture, perfectly adapting to the internal installation environment of medium-voltage drive cabinets and process control racks. Its robust industrial-grade design and EU manufacturing quality ensure long-term stable operation in harsh industrial sites, making it a core replacement part for ABB drive system retrofit and maintenance projects. Proper revision matching is critical before replacement to ensure full system compatibility.

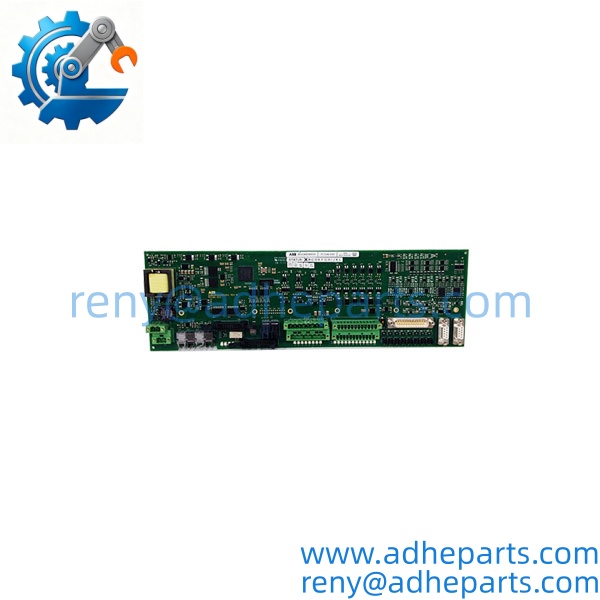

PCD244A101
PCD244A101
PCD244A101
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | PCD244A101 (3BHE042816R0101) |
| Product Type | Industrial Control / Interface PCB Module |
| Brand | ABB |
| Country of Origin | Switzerland / Finland (ABB EU production) |
| Power Supply | 24 V DC industrial standard |
| Max Power Consumption | 10 W |
| Communication Interfaces | Ethernet, RS-485 dual industrial communication ports |
| Operating Temperature Range | -25°C ~ +70°C |
| Storage Temperature Range | -40°C ~ +85°C |
| Humidity Range | 5% ~ 95% non-condensing |
| Protection Rating | IP20 (for industrial cabinet internal installation) |
| Dimensions | 260 mm × 190 mm × 40 mm |
| Net Weight | ~0.9 kg |
| Installation Method | Internal fixed mounting inside ABB medium-voltage drive cabinet or process control rack |
Field Application & Technical Pitfalls
Critical Industrial Scenarios
- **Large Mine Medium-Voltage Conveyor Drive Control: Acts as the core internal signal conditioning and communication unit inside ABB medium-voltage drive cabinets for mine conveyor systems, ensuring stable signal transmission between the drive main control unit and the field motor feedback sensors.
- **Petrochemical Large Compressor Process Control: Delivers reliable internal control communication performance for petrochemical large compressor ABB process control racks, adapting to flammable and explosive industrial site environments, meeting the 24/7 continuous operation requirements of chemical production.
- **Metallurgical Rolling Mill Main Drive System Control: Adapts to high-vibration and high-temperature metallurgical workshop environments, providing stable internal signal processing for ABB rolling mill medium-voltage main drive systems.
Non-Negotiable Technical Pitfalls
- ⚠️ Bold Warning 1: Never arbitrarily install this board in a non-matching revision ABB system. The third communication channel will experience protocol mismatch that causes the entire drive system to lose internal control communication.
- ⚠️ Bold Warning 2: Skipping the pre-commissioning full internal signal loop test will leave you with hidden signal conditioning dead zones. This unit must confirm all internal signal channels operate normally before powering on the high-voltage main circuit.
- ⚠️ Bold Warning 3: Do not perform hot-swap operation while the medium-voltage drive system is running. Unexpected power interruption during the swap will cause the drive main control unit to trigger unplanned protection shutdown.
A large petrochemical plant maintenance team once swapped a PCD244A101 board without verifying the system revision. The hidden protocol mismatch caused the drive system to lose internal communication, resulting in a 2-hour compressor unplanned shutdown that affected the normal operation of the entire production line.
Quality Control (QC) SOP & Transparency

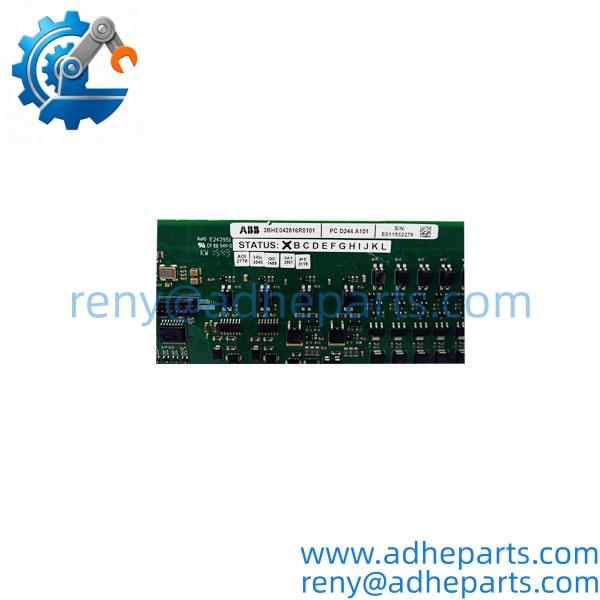

- Inbound Verification: Cross-check the OEM serial number against ABB’s official industrial control part registry, confirm the part number PCD244A101 (3BHE042816R0101) matches the factory label, and inspect no bent pins or corrosion on all communication and signal connectors.
- Live Rig Testing: Power the unit in a calibrated ABB medium-voltage drive test bench, apply 24V DC power, and confirm full 2-hour continuous stable signal conditioning and communication operation.
- Parameter Testing: Verify both Ethernet and RS-485 communication interfaces operate correctly, confirm all internal signal conditioning channels meet factory specifications, and validate all status LED indicators function properly.
- Final QA & Packaging: Seal the tested board in a static-shielding anti-static bag, attach a unique QC passed serial label, and nest it in foam padding inside a rigid industrial shipping carton.
Frequently Asked Questions (FAQ)
- Can I hot-swap this board while the medium-voltage drive system is running? No. You must first shut down the high-voltage main circuit, confirm the DC bus is fully discharged, and cut off the 24V DC control power supply before removing the unit, otherwise you will trigger unexpected drive protection shutdown risks.
- What exact systems is this board compatible with? It works natively with corresponding revision ABB medium-voltage drive and process control platforms. It will not operate correctly with non-matching revision ABB systems or third-party automation platforms without custom adaptation.
- How long is the standard warranty for this new surplus unit? 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by miswiring, improper revision matching, or overvoltage in the field.
- How do I tell a genuine OEM unit apart from a refurbished clone? Genuine ABB PCD244A101 boards have a laser-etched part number on the PCB, not a printed sticker. Clone units almost always fail the full internal signal conditioning and dual-interface communication performance test.
- What is the typical lead time for shipment? In-stock units ship within 48 hours. If you require official ABB factory performance test documentation, add 2 extra business days to the turnaround window.
- Can this board directly replace the older ABB legacy internal control PCB unit? Well, technically it fits the same internal cabinet installation footprint, but you must confirm the board revision fully matches the target system before replacement to ensure 100% system compatibility.
