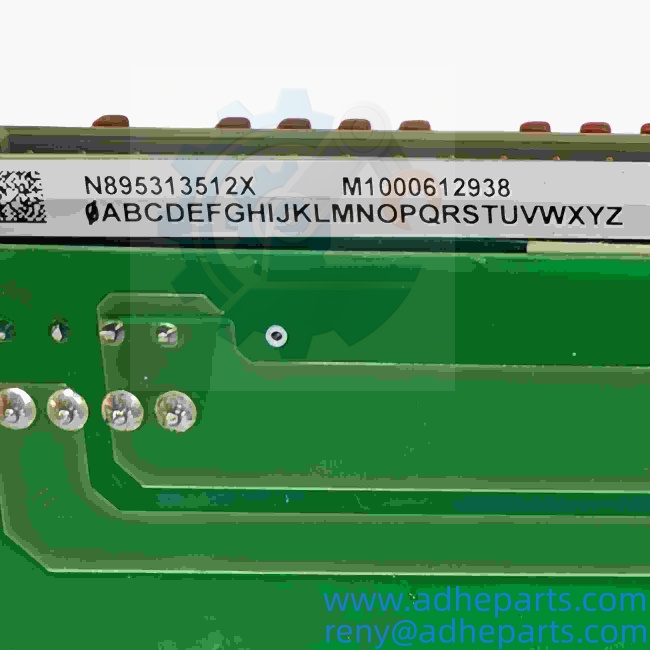

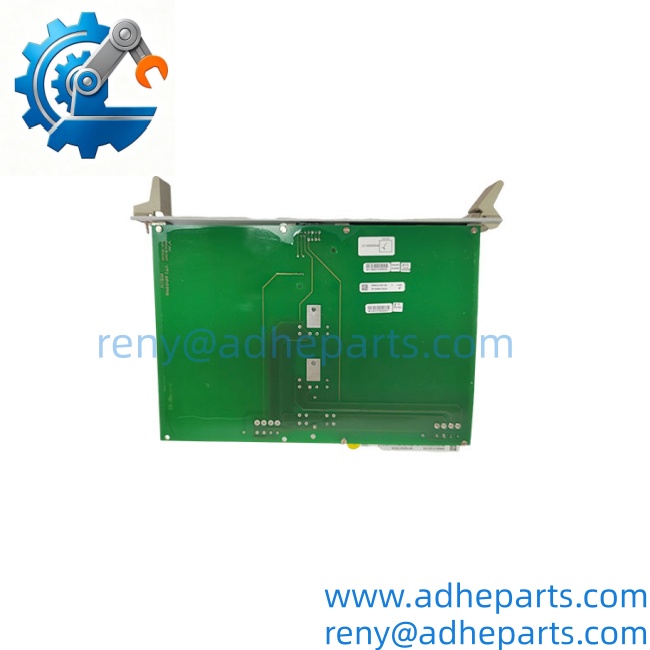

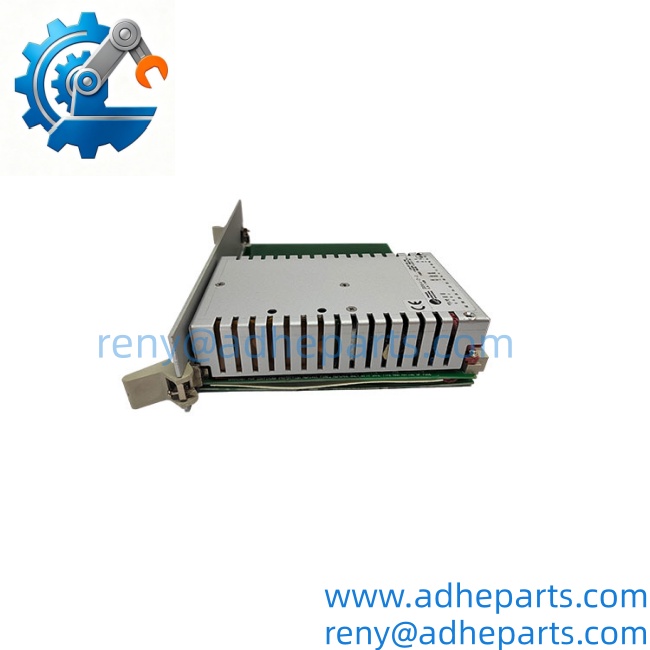

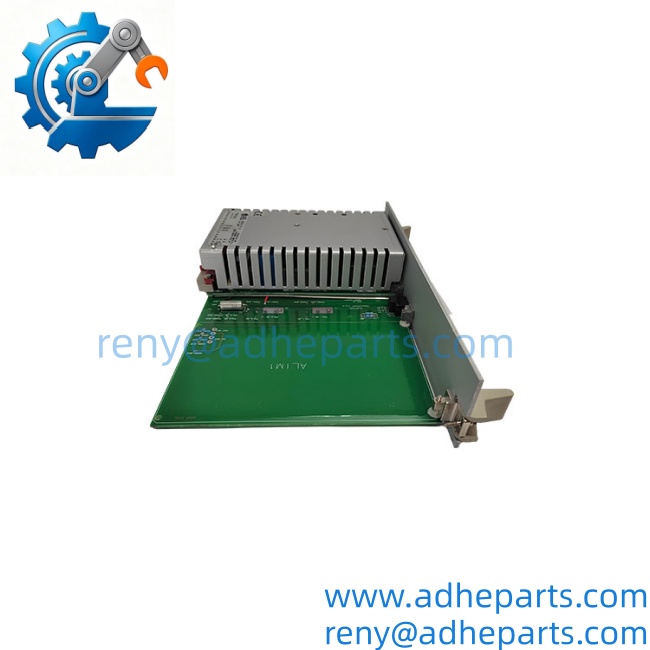

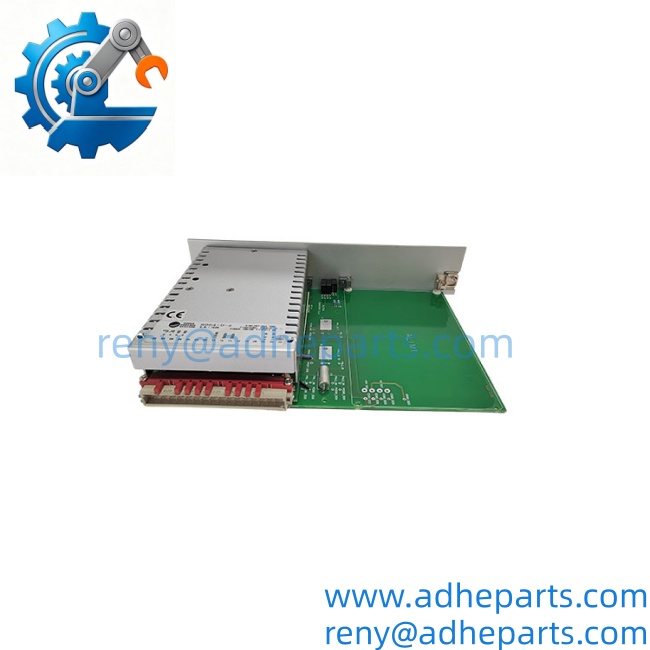

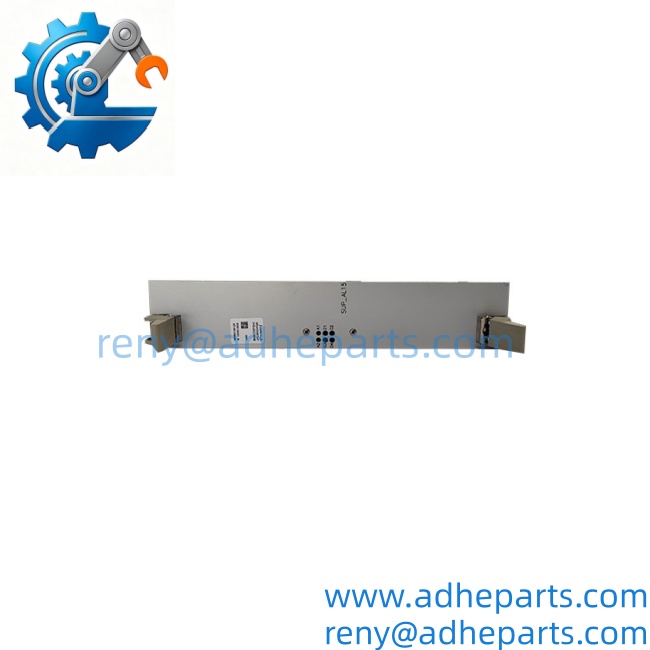

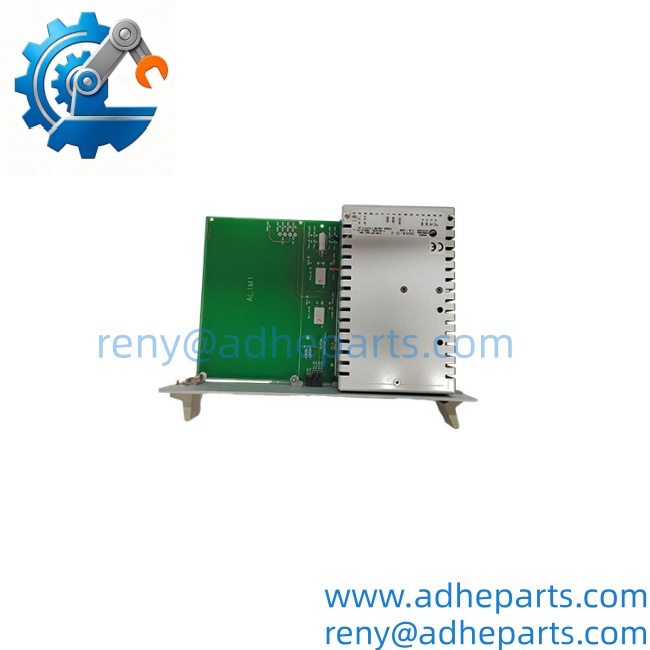

ALSTOM N895313512X | SUP-AL Power Board

N895313512X N95313012D SUP-AL N895313000R

N895313512X N95313012D SUP-AL N895313000R

N895313512X N95313012D SUP-AL N895313000R

Key Technical Specifications

Trade records identify N895313512X as a SUP-AL power board used in metro railway projects. However, available secondary product descriptions contain conflicting claims about the electrical ratings and system function, so unsupported voltage, frequency, and channel specifications should not be published as confirmed data.

Product Introduction (Anti-Template)

In a railway control cabinet, a power board can affect the availability of several downstream electronic assemblies at once. The ALSTOM N895313512X N95313012D SUP-AL N895313000R is identified as a SUP-AL power board associated with metro railway equipment. The references appear to describe the same assembly or a closely linked configuration, so all four identifiers should be retained during procurement.

The exact electrical function must be confirmed from the physical label, wiring diagram, and equipment location. Do not assume that a listing showing 220 V or a stated frequency represents the complete operating specification. Honestly, the connector layout and nameplate are more useful here than a generic supplier description.

N895313512X N95313012D SUP-AL N895313000R

N895313512X N95313012D SUP-AL N895313000R

QC, Procurement & Logistics SOP

1. Inbound Verification
   Record all markings: N895313512X, N95313012D, SUP-AL, and N895313000R. Check the serial number, revision, manufacturer label, connector condition, terminal markings, and evidence of repair.
2. System Compatibility Verification
   Confirm the exact railway equipment, cabinet, rack position, and associated power assembly. Match the input and output ratings, connector pinout, mounting arrangement, and hardware revision before approving the replacement.
3. Live Rig Testing
   Use an approved test fixture to verify power-up behavior, input acceptance, output voltage stability, protection functions, alarm signals, and interaction with the connected control equipment. Do not energize the board without confirming the correct test conditions.
4. QA & Anti-Static Packaging
   Protect the PCB, power terminals, connectors, and exposed electronic components against ESD, moisture, and mechanical impact. Use rigid packaging to prevent connector or board damage during transport.
5. Global Logistics & Export Compliance
   Confirm the final packed dimensions and gross weight before freight booking. Select the customs classification according to the verified physical function and railway application of the board. Use reinforced packaging for air or sea freight because bent terminals or cracked solder joints may not be immediately visible.

N895313512X N95313012D SUP-AL N895313000R

Technical Pitfalls & Integration Warnings

1. Firmware / Configuration Mismatch
   The board may be part of a larger railway control assembly whose operation depends on the installed controller and configuration. Example: the replacement powers up but is not accepted by the host equipment because the hardware revision or associated configuration differs.
2. DIP Switch / Configuration Errors
   If the board contains address, mode, or protection settings, incorrect positions may cause power or diagnostic faults. Record the original settings before removal and compare them with the replacement.
3. Wiring / Terminal Incompatibility
   The exact input and output pinout is not confirmed from the short reference alone. Do not connect the board based only on a similar connector shape; verify voltage, polarity, terminal assignment, and cable routing from the equipment documentation.
4. ESD Destruction During Unboxing
   Exposed electronic components can be damaged before installation through static discharge. Keep the board in anti-static packaging until the cabinet is ready, and handle it by the edges rather than the connector contacts.

N895313512X N95313012D SUP-AL N895313000R

Frequently Asked Questions (FAQ)

Q1. What is ALSTOM N895313512X?
It is identified in available trade records as a SUP-AL power board associated with metro railway equipment.

Q2. Are N95313012D and N895313000R related to the same item?
They are associated with N895313512X in product records. The complete group of references should be supplied when sourcing the replacement.

Q3. What is the input voltage?
A secondary listing states 220 V, but this value is not sufficiently verified as the complete electrical specification. Confirm the actual nameplate and railway equipment documentation before energizing the board.

Q4. Is this a PLC or DCS module?
The available evidence identifies it more specifically as a railway control power board. It should not be classified as a standard PLC I/O module without confirming the physical assembly and system function.

Q5. Can another SUP-AL board replace it?
Not automatically. The replacement must match the complete part-number group, hardware revision, electrical ratings, connector arrangement, and installed railway equipment.

Q6. What information should I provide when requesting a quotation?
Provide all four references, clear photographs of the nameplate and connector side, the railway equipment model, the cabinet location, and the required condition.

Q7. What is the international lead time?
Lead time depends on actual stock and condition. New surplus, used, and repaired units may require different preparation and testing periods, so the exact revision and test requirements should be confirmed before a firm delivery date is issued.
