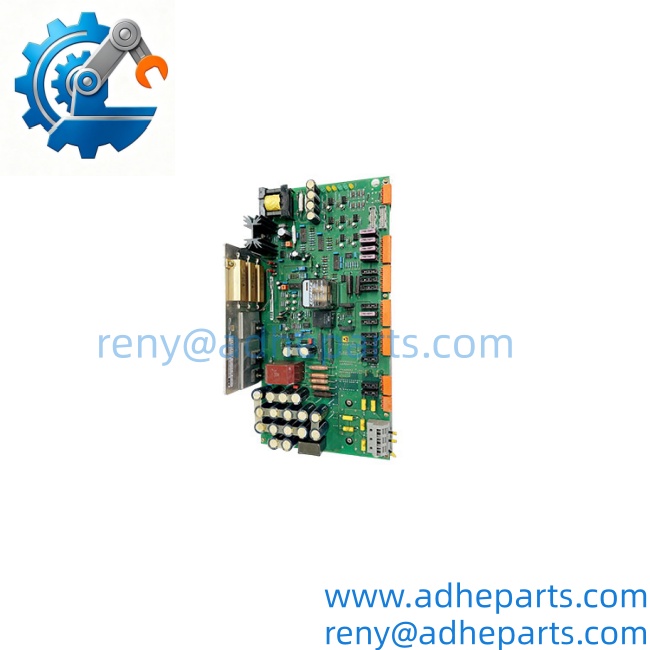

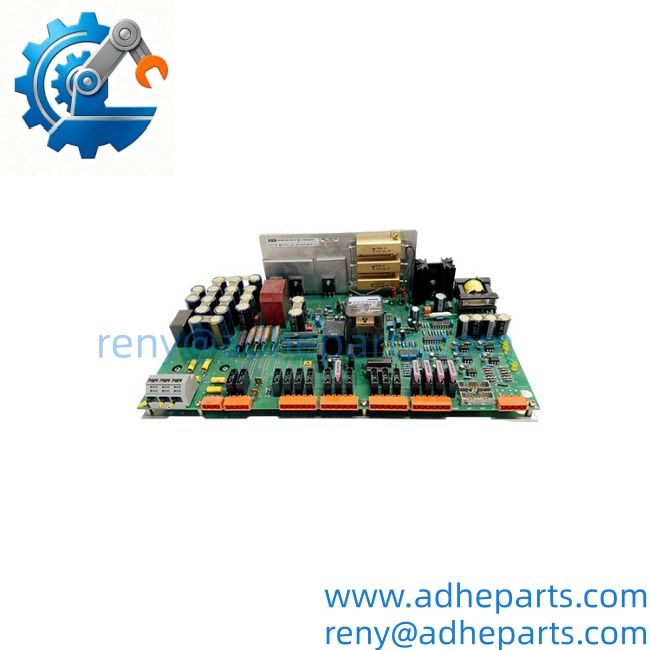

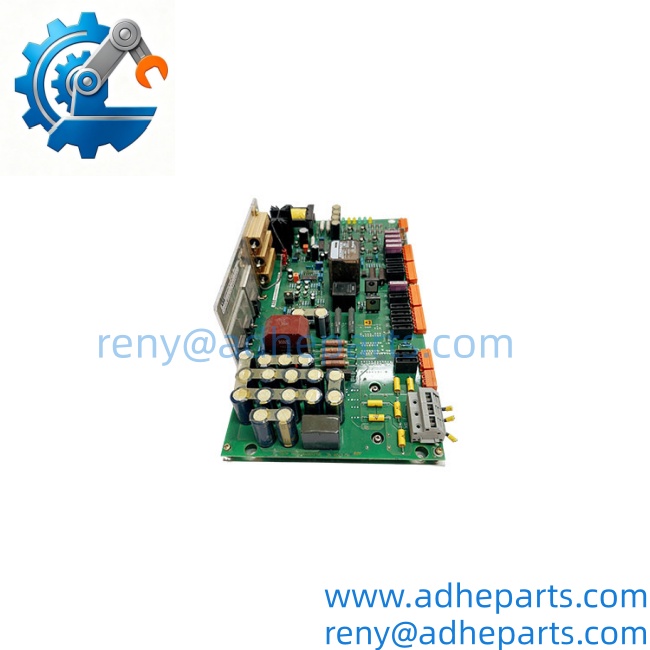

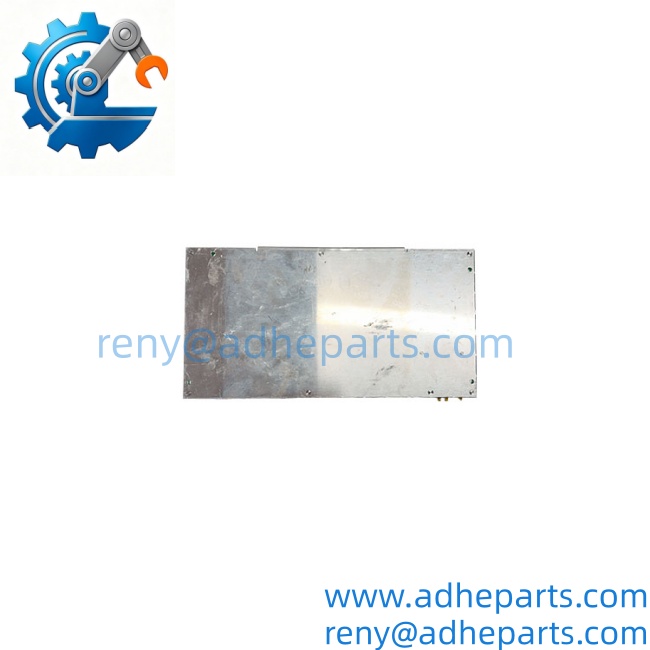

ABB KUC720AE01 3BHB000652R0101 | Drive Control Board, New Original

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

ABB KUC720AE01 3BHB000652R0101

ABB KUC720AE01 3BHB000652R0101

3. Key Technical Specifications

Confirm each line against the OEM datasheet and the marking on your existing board before ordering.

4. Product Introduction

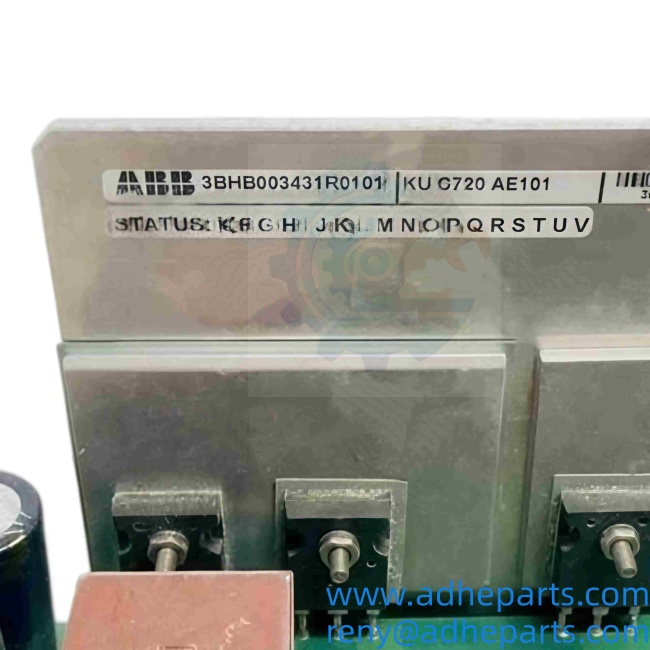

The ABB KUC720AE01 is a control board for ABB industrial drive equipment. It carries the regulation loop, the firing logic for the power stage, and the interface to the drive’s operator panel and communication links. Two order codes apply — 3BHB003431R0101 and 3BHB000652R0101 — and the code on your board is what matters when you order a replacement.

Two facts decide whether a swap works. First, the firmware revision string. A board with a newer revision may not initialize against older drive control firmware, and the drive will sit in a fault state with no obvious cause. Second, the parameter set. If your drive stores its tuning parameters in memory on this board, those values do not transfer automatically. Record them before you pull the old board.

ABB KUC720AE01 3BHB000652R0101

5. Application Scenarios & Field Experience

Part 1 – Narrative Paragraph

The failure that costs the most downtime on a drive control board is not a hard failure — it is a drift failure. The drive runs, but the speed reference wanders a few RPM, or the current limit trips earlier than it used to. I have watched a maintenance crew chase that for two weeks through the motor, the encoder, and the load. The board was the last thing they suspected and the first thing that should have been tested. When you replace a KUC720AE01, photograph the old board first. Jumper positions, dip-switch settings, and the firmware label are all you have to go on if the new board does not come up clean.

Part 2 – Numbered List (Application Scenarios)

1. Metals – Rolling Mill Drive Cabinets – The board regulates armature or field current in the drive stack. A drifting regulation loop shows up as gauge variation on the finished strip, not as a drive fault.
2. Pulp & Paper – Winder and Rewinder Drives – Tension control depends on the regulation loop staying tight. A board with aged components causes tension swings that operators blame on the mechanical brake.
3. Cement – Kiln and Mill Drive Controls – High-inertia loads need stable current limiting. A failing control board trips the drive on overcurrent during acceleration, and the mill loses a full production cycle.
4. Marine – Thruster and Winch Drives – Vessel drive cabinets run this class of board. Replacement is often the only path when the OEM no longer stocks the revision in your build.

Part 3 – Short Field Story

A steel plant in the Midwest had a coil winder drive that tripped on overcurrent every time the operator pushed past 50% speed. The crew had replaced the motor, the encoder, and the cooling fan. The drive still tripped. We asked for the board revision string before shipping anything. It turned out the plant had already fitted a board from a different drive build — same base part number, different suffix. We supplied a KUC720AE01 with a matching revision string and the correct order code. The drive came up, took its parameters, and ran to full speed without a trip.

6. Standard Operating Procedure (SOP) for Quality Control

• Visual & Origin Inspection – We verify the ABB marking, the KUC720AE01 model string, both order codes, and the date code. We inspect the edge or ribbon connector for bent pins and the board for evidence of rework, heat damage, or moisture. A board with a cracked connector shroud is rejected.
• Revision Documentation – We read and photograph the firmware revision label, jumper positions, and dip-switch settings. That record ships with the board so you can compare it against the unit you are replacing.
• Power-Up Self-Test – The board is installed in a compatible drive test rig. We verify it initializes without a bus or checksum fault and that the drive’s control firmware recognizes the board type.
• Regulation Loop Test – We run the drive into a resistive load bank and sweep the speed reference across the operating range. We log the actual speed against the reference and confirm the loop holds steady without oscillation.
• Firing Pulse Verification – We scope the pulse outputs to confirm correct amplitude, width, and phase relationship. Late or missing pulses destroy the power stage, so this test is not optional.
• Firmware Verification – We record the exact revision string. Boards that do not match a requested revision are set aside rather than shipped.
• ESD-Safe Packaging – The board is wrapped in anti-static film, seated in a conductive foam insert with the connector protected by a rigid shroud, and packed in a double-wall carton with static warning labels.

ABB KUC720AE01 3BHB000652R0101

7. Frequently Asked Questions (FAQ)

Q1: Which order code do I use — 3BHB003431R0101 or 3BHB000652R0101?

A: Both appear on this board family, and they identify different build or kit configurations. Read the code printed on your existing board and match it. If your board carries both, send us a photo of the label and we will confirm which one governs the replacement for your drive build.

Q2: Will this board drop into my drive without reprogramming?

A: The hardware will seat, but do not count on the parameters transferring. Record your drive’s parameter set before you pull the old board, and have the programming tool ready. If the firmware revision on the new board differs from the old one, the drive may reject the stored parameters or fault on power-up.

Q3: What is the warranty on this board?

A: We offer a 12-month warranty from the ship date. It covers component failure, connector failure, and firmware memory faults under normal operating conditions. It does not cover damage from hot-swapping the board with the cabinet energized, bent pins from forced insertion, or ESD damage from handling without a wrist strap. We test every board in a live drive rig before it ships.

Q4: Do you have this board in stock?

A: Stock on ABB drive boards moves and varies by revision. Confirm availability before you plan an outage. If the revision you need is not on the shelf, we will tell you what we actually have rather than quote a date we cannot hold.

Q5: Any installation pitfalls I should watch for?

A: Four. First, power down the drive and let the DC bus discharge before you touch the board — the bus capacitors hold a lethal charge. Second, photograph the old board and record every jumper and switch setting. Third, handle the board by the edges with an ESD wrist strap connected to cabinet ground. Fourth, if the drive faults on power-up after the swap, check the firmware revision string first — that mismatch causes more “dead on arrival” calls than actual hardware faults.

اكتشف 【KUC720AE01】 الآن، الخيار الأمثل بجودة عالية وسعر مناسب. يتميز بأداء موثوق وتصميم عملي، مع شحن سريع ودفع آمن وخدمة عملاء موثوقة. تواصل معنا الآن للحصول على عرض سعر مفصل، وسنرد عليك خلال ساعة واحدة.
