Product Introduction (Anti-Template)

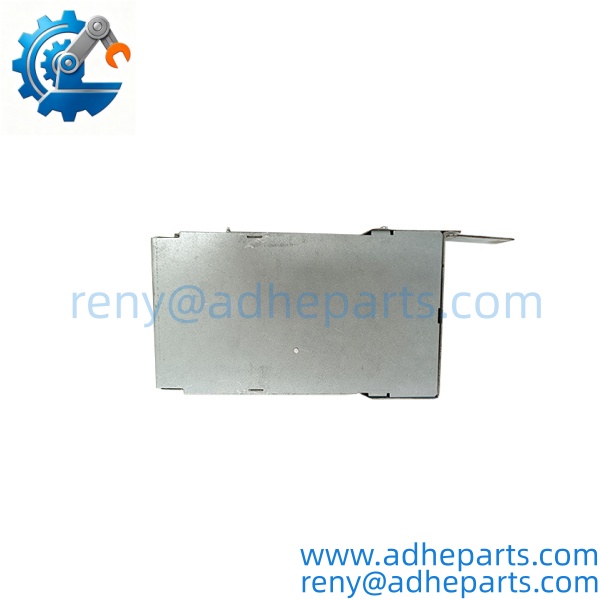

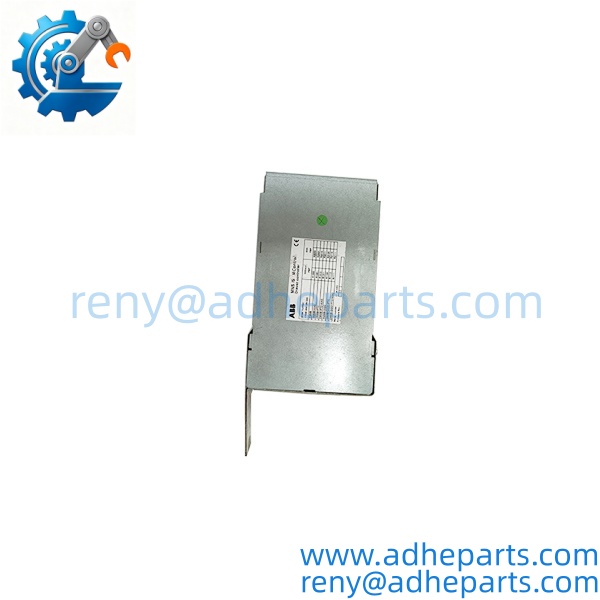

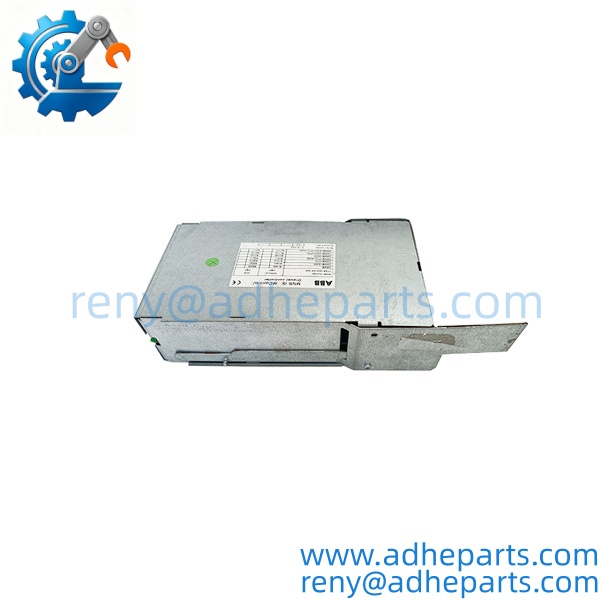

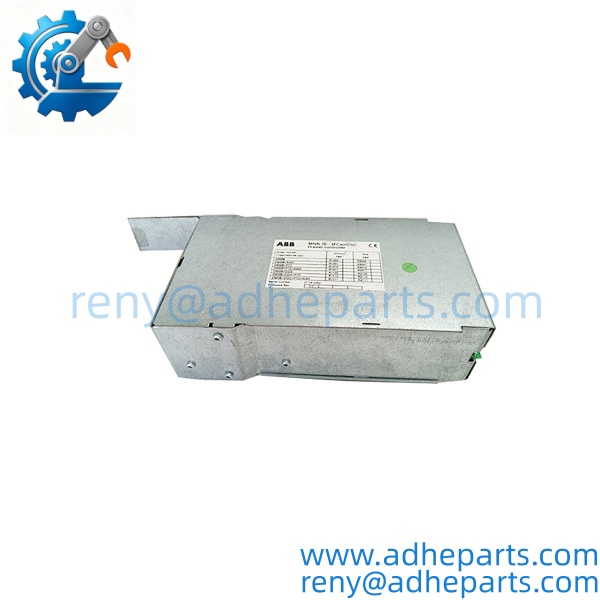

The ABB 1TGE120010R1300 is a control and protection motor starter unit intended for industrial motor-control applications. Rather than treating it as a generic PLC I/O card, maintenance teams should evaluate it as part of the motor starting and protection circuit, where the correct electrical configuration and surrounding control hardware determine whether a replacement will function properly.
Available technical records identify the unit at approximately 53 × 125 × 260 mm with a net weight of about 0.7 kg. Its reported functions include motor start/stop control and protection against conditions such as overload and short circuit.
1TGE120010R1300
1TGE120010R1300
1TGE120010R1300
1TGE120010R1300
1TGE120010R1300
1TGE120010R1300
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | 1TGE120010R1300 |
| Product Type | Control & Protection Motor Starter Unit |
| Core Application | Industrial motor starting and protection |
| Primary Functions | Starting, stopping, control, monitoring, protection |
| Reported Protection | Overload, short circuit, abnormal operating conditions |
| Net Width | Approx. 53 mm |
| Net Height | Approx. 125 mm |
| Net Depth | Approx. 260 mm |
| Net Weight | Approx. 0.7 kg |
| Installation | Industrial control cabinet integration |
| Reported Origin | Switzerland |
The dimensions, weight, product classification, and general application are reported consistently across multiple records. Specific electrical ratings should be confirmed from the original nameplate or ABB documentation for the customer’s installation rather than inferred from the catalog number alone.
Field Application & Technical Pitfalls (The Engineer’s Guide)
Motor Starting Applications
The 1TGE120010R1300 is associated with industrial motor starter arrangements where controlled starting and stopping are combined with motor protection. Typical equipment can include pumps, fans, compressors, conveyors, and other motor-driven machinery.
Motor Protection
Protection functions are intended to help prevent damage caused by abnormal motor operating conditions. For replacement planning, however, the unit should be evaluated together with the motor rating, upstream protection, contactor arrangement, and control circuit.
Legacy Industrial Control Cabinets
This type of ABB component is particularly relevant when maintaining an installed system where replacing the complete motor-control assembly would create unnecessary engineering and downtime costs.
Pitfall 1 — Do not classify it as a generic PLC module.
The available records identify 1TGE120010R1300 specifically as a control and protection motor starter unit. Treating it as a conventional CPU or I/O module can lead to incorrect compatibility assumptions.
Pitfall 2 — Do not infer electrical ratings from the model number.
The available secondary records do not provide sufficiently reliable confirmation of all voltage, current, and protection-setting values. Those parameters should be checked against the original unit and system documentation.
Pitfall 3 — Verify the complete motor-control circuit.
Before replacement, compare the motor rating, incoming supply, control voltage, auxiliary contacts, protection arrangement, and terminal wiring. A matching catalog number is necessary, but the surrounding installation still determines whether the replacement can be commissioned correctly.
A typical maintenance case is an older motor-control cabinet with a failed starter/control unit while the motor, contactors, and field wiring remain usable. Replacing only the correctly identified unit can avoid a much larger cabinet retrofit. The economical decision depends on confirming the exact part number and the original circuit configuration before shipment.
Quality Control (QC) SOP & Transparency
- Part-number verification: Confirm the nameplate reads ABB 1TGE120010R1300 and record the serial number and revision information when available.
- Physical inspection: Check the housing, labels, terminals, connectors, mounting points, and insulation surfaces.
- Dimensional verification: Compare the unit against the reported approximate dimensions of 53 × 125 × 260 mm.
- Configuration review: Confirm that the supplied unit corresponds to the customer’s original motor starter/control application.
- Electrical inspection: Check for visible overheating, damaged terminals, corrosion, cracks, or evidence of previous electrical stress.
- Functional testing: Where the appropriate test equipment is available, verify the relevant start/stop and protection functions.
- Terminal verification: Compare terminal identification and wiring arrangement with customer photographs or original documentation.
- Final QA: Record identification photographs and available test results before packing.
- Packaging: Use ESD-conscious handling and protective industrial packaging appropriate for electronic control equipment.
FAQ
Q1: What is ABB 1TGE120010R1300?
It is identified as an ABB Control and Protection Motor Starter Unit for industrial motor starting, control, monitoring, and protection applications.
Q2: Is it a PLC CPU?
It should not be marketed as a conventional PLC CPU. Available product records specifically describe it as a motor starter/control and protection unit.
Q3: What are its physical dimensions?
Reported dimensions are approximately 53 mm wide × 125 mm high × 260 mm deep, with a net weight of approximately 0.7 kg.
Q4: What protection functions are associated with the unit?
Available records associate it with motor protection functions including overload and short-circuit protection. Exact protection characteristics and settings should be verified against the installed system documentation.
Q5: Can another 1TGE120010R-series unit be used as a replacement?
Not automatically. The complete catalog number matters. A shared prefix does not establish electrical or functional interchangeability.
Q6: What information should I request before quoting this part?
Ask for a clear photograph of the 1TGE120010R1300 nameplate, the installed unit, terminal connections, and the equipment in which it is installed. If available, obtain the motor rating and original system documentation as well.
Q7: Is 1TGE120010R1300 suitable as a legacy spare?
Yes, when the customer’s existing equipment specifically calls for this exact configuration. For an older installation, confirming the original part number before shipment is particularly important because replacing the wrong motor-control component can create additional commissioning work and downtime.
