ABB 1TGE120010R… Rev.A | Motor Control & Protection Unit

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

Product Introduction (Anti-Template)

The ABB 1TGE120010R… Rev.A is a legacy industrial control component associated with motor starting, monitoring, and protection applications. Its role is more specific than a generic PLC module: the unit is intended to participate directly in the control and protection architecture of motor-driven equipment.

The incomplete order number shown as 1TGE120010R… is important. ABB configurations can use additional digits to define the actual hardware variant, so a procurement team should not approve a replacement from the common prefix alone. Related records identify 1TGE120010R1300 as a control and protection motor starter unit, but the complete nameplate number should be used to establish exact compatibility.

1TGE120010R… Rev

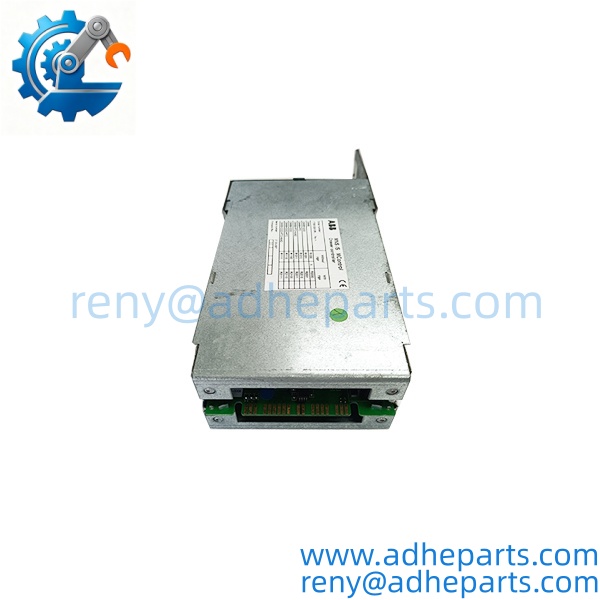

1TGE120010R… Rev

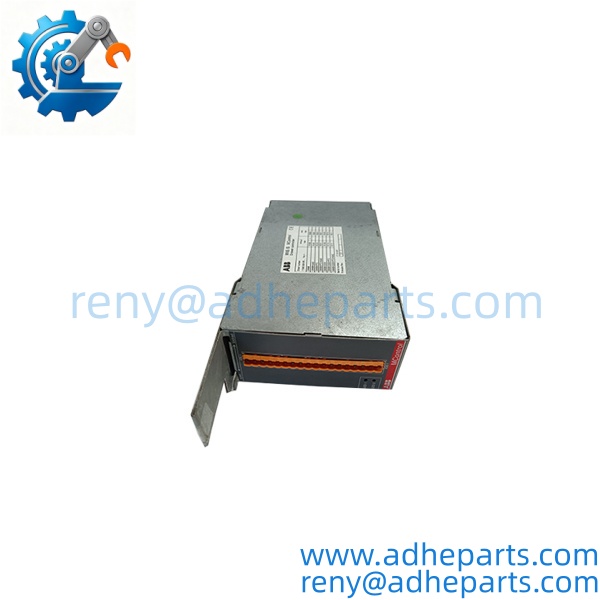

1TGE120010R… Rev

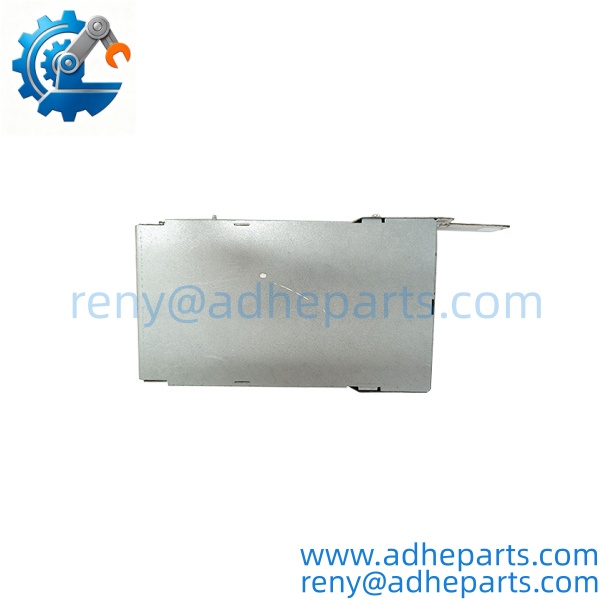

1TGE120010R… Rev

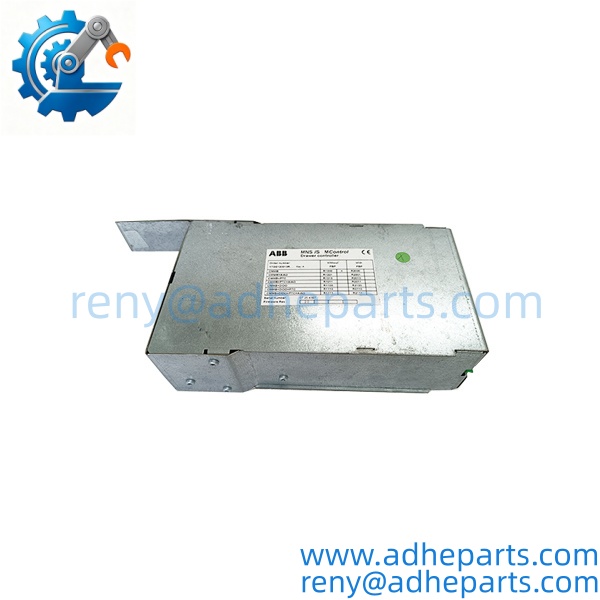

1TGE120010R… Rev

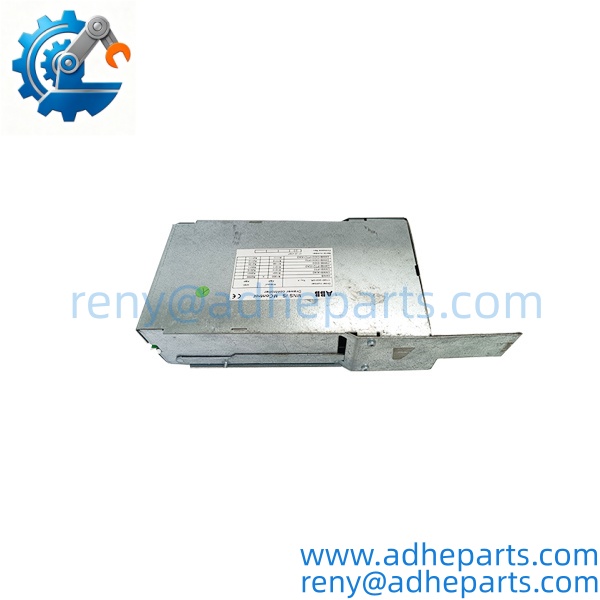

1TGE120010R… Rev

Key Technical Specifications

The exact voltage, current, communication interfaces, dimensions, and protection functions should be taken from the complete nameplate/order code, rather than inferred from the 1TGE120010R prefix. Available third-party records give conflicting technical descriptions, so those values should be treated as configuration-dependent.

Field Application & Technical Pitfalls (The Engineer’s Guide)

Motor Starting and Protection

The unit is associated with motor starter applications where starting commands, operating status, and protective functions need to be handled as part of the motor-control architecture. This makes it relevant to industrial pumps, fans, compressors, production machinery, and other motor-driven equipment.

Motor Control Cabinets

In an existing ABB installation, the 1TGE120010R… unit may sit within a larger control and protection arrangement. Replacing it therefore requires more than checking physical dimensions; the surrounding contactors, protection devices, wiring, and control logic may all affect compatibility.

Legacy Equipment Maintenance

This type of part is particularly relevant when maintaining an installed system whose original control hardware is no longer routinely stocked through normal plant procurement channels.

Pitfall 1 — Do not order from the prefix alone.
The customer’s label should be checked for the complete number following 1TGE120010R. A suffix such as 1300 can identify a specific configuration.

Pitfall 2 — Do not assume modern PLC specifications.
Some online listings describe this part using generic PLC terminology and even assign specific processor, memory, Ethernet, or protocol specifications. Those claims are not sufficiently corroborated for this incomplete part number. For procurement, the nameplate and original system documentation should take precedence.

Pitfall 3 — Verify the complete motor-control circuit.
Before substitution, confirm the incoming supply, motor rating, control voltage, protection arrangement, auxiliary contacts, and field wiring. A physically compatible unit can still be electrically unsuitable.

A common maintenance scenario is an older motor-control cabinet where the original unit has failed but the surrounding equipment remains serviceable. Replacing the complete cabinet would add unnecessary cost and engineering work if the failed module can be correctly identified and matched. The critical step is obtaining a clear photograph of the original nameplate and terminal arrangement before confirming the spare.

Quality Control (QC) SOP & Transparency

1. Part-number verification: Confirm the complete ABB order number, including every character after 1TGE120010R and the Rev.A designation.
2. Nameplate inspection: Photograph the model, revision, serial number, ratings, and manufacturer markings.
3. Physical inspection: Check the housing, terminals, connectors, mounting points, labels, and protective surfaces.
4. Configuration review: Compare the supplied variant against the customer’s original unit rather than relying on the common product prefix.
5. Electrical inspection: Check for visible overheating, damaged terminals, corrosion, cracked housings, or other signs of previous electrical stress.
6. Functional testing: Where an appropriate test setup is available, verify the relevant control and protection functions.
7. Terminal verification: Compare terminal identification and wiring arrangement with the customer’s original documentation.
8. Final QA: Record identification photographs and available test results before shipment.
9. Packaging: Use ESD-conscious handling and protective industrial packaging for transportation.

FAQ

Q1: What is ABB 1TGE120010R… Rev.A?
It is identified in available product records as an ABB control and protection motor starter unit used for industrial motor starting, control, monitoring, and protection.

Q2: Is 1TGE120010R… Rev.A a PLC CPU?
It should not automatically be classified as a conventional PLC CPU. Available records describe it primarily as a motor control/protection unit. The exact internal architecture should be confirmed from the complete ABB order number.

Q3: What does the “…” in 1TGE120010R… mean?
It indicates that the number supplied is incomplete. The additional characters can identify the specific hardware configuration. For example, 1TGE120010R1300 is separately listed as a motor starter/control and protection unit.

Q4: Can 1TGE120010R1300 replace every 1TGE120010R… Rev.A unit?
No. Do not assume interchangeability from the shared prefix. Confirm the complete original order number, electrical ratings, terminal arrangement, and application first.

Q5: What information should I request from a customer before quoting?
Ask for a clear nameplate photograph, the complete part number, Rev. information, the equipment or motor application, and photographs of the installed unit and terminals.

Q6: Is this suitable as a legacy spare?
Yes, where the customer’s existing equipment specifically requires the matching ABB configuration. For older installations, maintaining an identified spare can reduce the risk associated with an unexpected control-unit failure.

Q7: What condition should be specified when selling this part?
Use the actual physical condition: New Original (New Surplus) if unused genuine stock, or Refurbished if previously used and professionally tested. Avoid describing a used unit as new simply because the external housing is clean.
