3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Catalog Number | 1756-TBCH/A |
| Product Type | Removable Terminal Block (RTB) |
| Pin Count | 36-pin |
| Clamp Type | Cage-clamp |
| Housing | Standard (low-profile) |
| Screw Torque | 0.5 N·m (4.4 lb·in) |
| Single Wire Size | 0.33–2.1 mm² (22–14 AWG) |
| Double Wire Size | 0.33–1.3 mm² (22–16 AWG) |
| Wire Rating | Copper, 90 °C or greater |
| Compatibility | Most 1756 ControlLogix I/O modules |
4. Product Introduction (Anti-Template)
The Allen-Bradley 1756-TBCH/A is a 36-pin cage-clamp Removable Terminal Block designed for ControlLogix 1756 I/O modules. It plugs into the front of the module and provides the field-wiring interface, allowing plant wiring to be terminated independently of the module itself.
This RTB uses a cage-clamp design with a standard (low-profile) housing. It supports single-wire connections from 22–14 AWG and double-wire connections from 22–16 AWG. The recommended screw torque is 0.5 N·m. Because RTBs are ordered separately from the I/O modules, the 1756-TBCH is a frequently replaced spare in ControlLogix systems. It is the cage-clamp counterpart to the spring-clamp 1756-TBS6H and is widely used across digital, analog, and specialty 1756 modules that require a 36-pin terminal block.

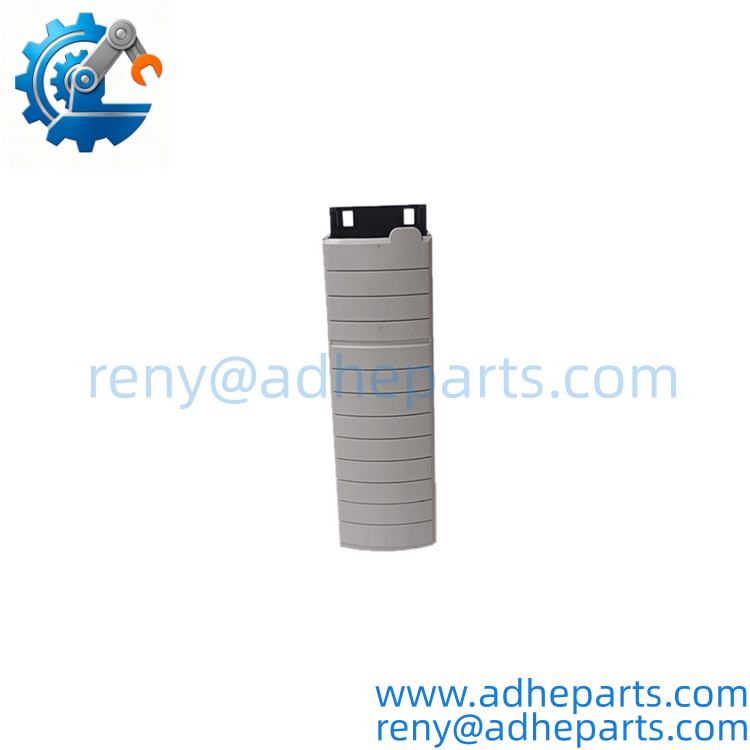

1756-TBCH/A

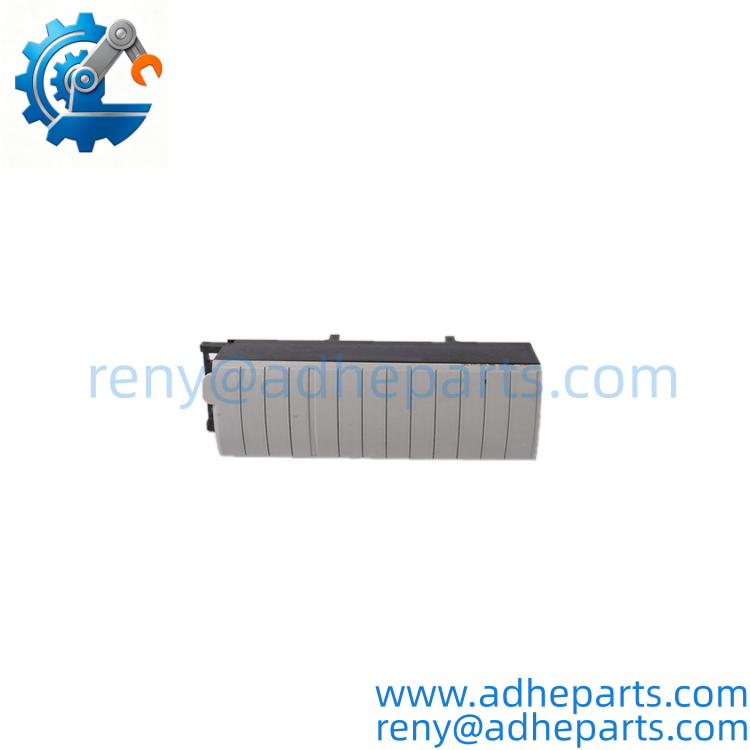

1756-TBCH/A

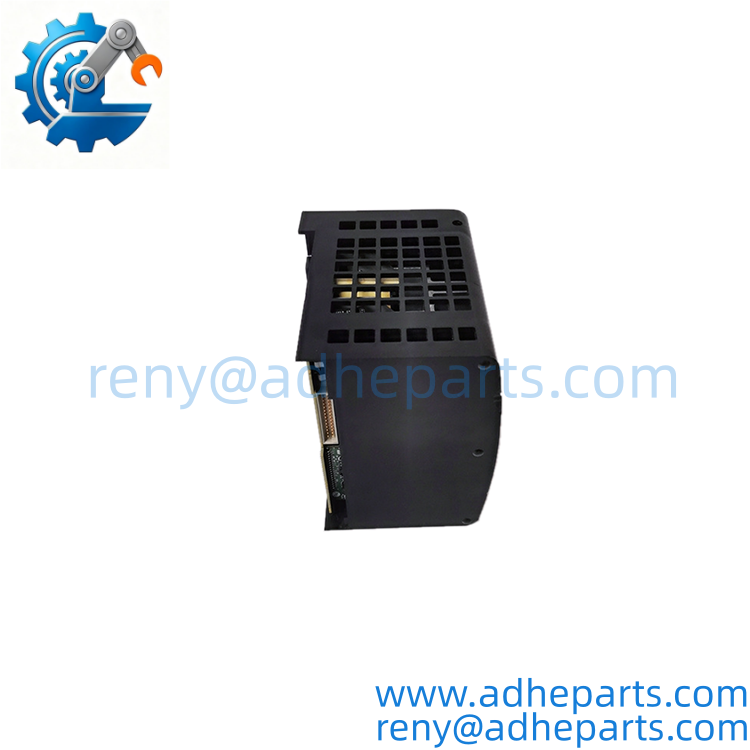

1756-TBCH/A

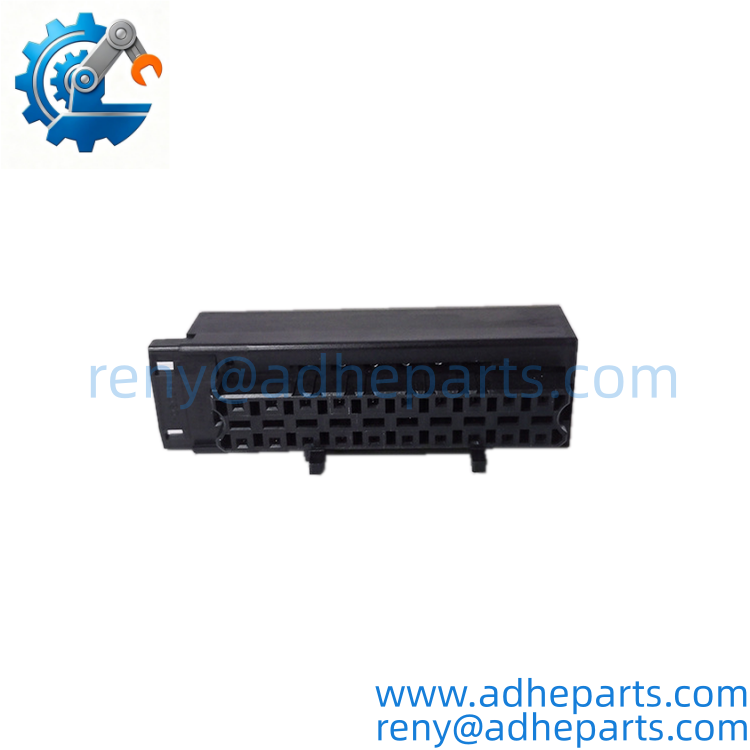

1756-TBCH/A

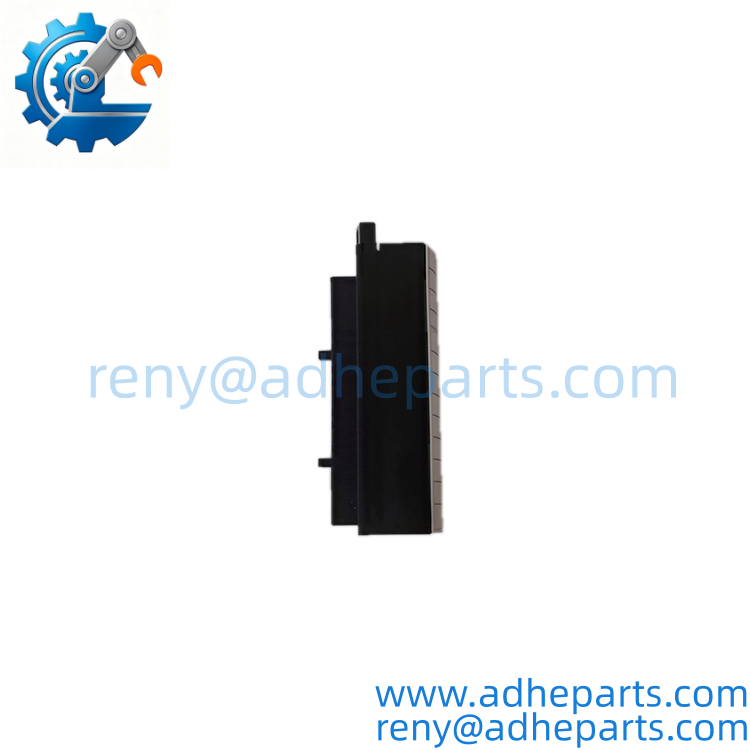

1756-TBCH/A
5. QC, Procurement & Logistics SOP
- Inbound Verification – Confirm catalog number (1756-TBCH or 1756-TBCH/A), housing condition, and that all clamp screws are present and undamaged. Photograph labels.
- Visual Inspection – Check for cracked housing, bent pins, or missing screws. Verify the RTB seats properly on a sample module if available.
- QA & Packaging – Protect the pin contacts and clamp openings; pack in anti-static protective packaging to prevent damage during transit.
- Global Logistics & Export Compliance – Classify under the correct HS code for industrial terminal blocks / PLC accessories. Packaging must protect the contacts; export documentation is prepared to minimize customs delays.
6. Technical Pitfalls & Integration Warnings
Module Compatibility – Not every 1756 module uses the 36-pin TBCH. Confirm the required RTB type for the specific I/O module before ordering.
Wire Size Limits – Do not exceed the specified wire gauges or place more than two conductors on a single terminal (within the double-wire rating). Over-sizing can damage the clamps.
Torque – Apply only the specified 0.5 N·m torque. Over-tightening can strip the cage-clamp mechanism.
Housing Depth – The standard housing has limited depth. For larger wire or multiple conductors that require more space, the extended-depth housing (1756-TBE) may be needed.
7. Frequently Asked Questions (FAQ)
What is the realistic global lead time for a verified 1756-TBCH/A?
As a common ControlLogix accessory, stock is generally available. Typical lead time after verification is 3–10 business days plus standard shipping.
What type of terminal block is the 1756-TBCH?
A 36-pin cage-clamp Removable Terminal Block with standard housing.
Does it come with the I/O module?
No. RTBs are ordered separately from the ControlLogix I/O modules.
What wire sizes are supported?
Single wire: 22–14 AWG. Double wire: 22–16 AWG (copper, 90 °C or greater).
Is there a spring-clamp version?
Yes. The spring-clamp equivalent is the 1756-TBS6H.
What should be confirmed before ordering a replacement?
Exact catalog number (1756-TBCH or 1756-TBCH/A), the I/O module it will be used with, and whether standard or extended-depth housing is required.
