Bently Nevada 106M1081-01 | Machinery Protection Component, In Stock

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

3. Key Technical Specifications

Do not order against this table alone. I cannot confirm the part type from the number. Match every line against the OEM datasheet for your specific application.

4. Product Introduction

The Bently Nevada 106M1081-01 is a machinery protection or condition monitoring component. The 106M prefix belongs to Bently Nevada’s part numbering system, which covers the 3500 and 3300 series racks, proximity probe systems, accelerometers, velocity transducers, and the cables and drivers that connect them. I cannot tell you from the number alone whether this is a probe, a cable, a driver, or a rack module, and I am not going to guess.

Here is what I can tell you as a straight answer: on Bently Nevada hardware, compatibility is machine-specific and rack-specific. A proximity probe that works on one machine may not work on another because the probe tip diameter, the cable length, and the driver sensitivity must all match. A 3500 rack module must match the rack firmware revision and the channel configuration. Before you order, read the label on the existing part and cross-reference it against the OEM datasheet for your system. If you send me a photo of the part and the rack or machine it came out of, I will confirm what you are looking at.

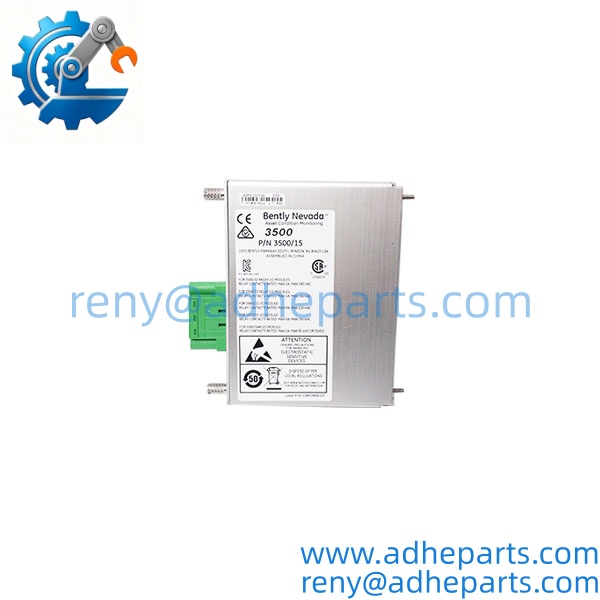

106M1081-01

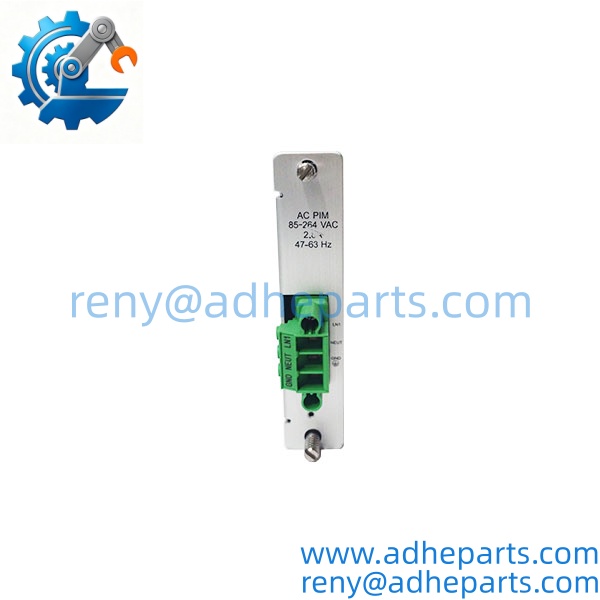

106M1081-01

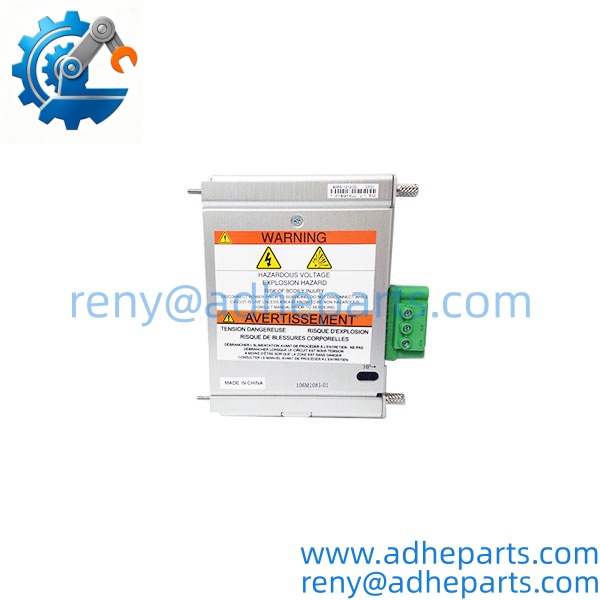

106M1081-01

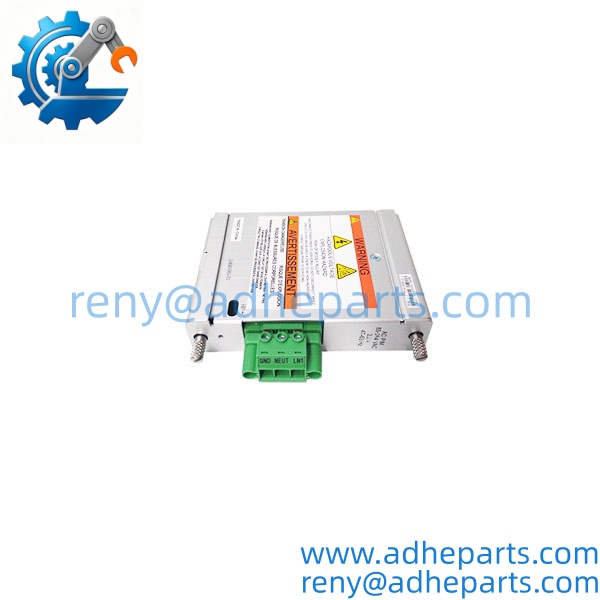

106M1081-01

5. Application Scenarios & Field Experience

Part 1 – Narrative Paragraph

The failure that costs the most on a machinery protection system is a mismatched component that passes a bench check and still gives bad data. I have seen a plant replace a proximity probe with a different cable length and then chase a “sensor fault” for two weeks. The probe was fine. The system was reading the wrong scale factor because the driver was configured for a different total cable length. On Bently Nevada hardware, the probe, the extension cable, and the driver form a matched set. Change one and you change the calibration. That is the rule that matters more than any single specification on the datasheet.

Part 2 – Numbered List (Application Scenarios)

1. Power Generation – Steam Turbine Monitoring – Proximity probes and their cables measure shaft vibration, axial displacement, and eccentricity. The probe and cable must match the driver’s calibration, or the protection system will trip on false data.
2. Oil & Gas – Centrifugal Compressor Protection – Accelerometers and velocity transducers on compressor bearings detect early-stage wear. The transducer must match the rack module’s input type and sensitivity.
3. Petrochemical – Reciprocating Compressor Monitoring – Probes and drivers monitor rod drop and crosshead vibration. The cable length and connector type are application-specific, and a mismatch introduces noise into the signal.
4. Hydroelectric – Hydro Turbine Bearing Monitoring – Proximity probes measure shaft orbit and bearing clearance. The wide temperature rating and sealed connectors handle the humid powerhouse environment.

Part 3 – Short Field Story

A gas plant had a compressor that would trip on “high radial vibration” every few weeks. The crew had replaced the probe and the extension cable and the fault kept returning. We asked for the driver part number before shipping anything. It turned out the replacement probe had a different total cable length than the original, and the driver was still calibrated for the old length. The system was reading a scaled signal that looked like a real vibration event. Once the correct probe and cable set was installed and the driver verified, the trips stopped. The hardware had been fine — the calibration was wrong.

6. Standard Operating Procedure (SOP) for Quality Control

• Visual & Origin Inspection – We verify the Bently Nevada marking, the 106M1081-01 part number, and the date code. We inspect connectors, cable jackets, and probe tips for damage. A part with a damaged connector or a bent probe tip is rejected.
• Part Number and Revision Documentation – We read and photograph the full part number, the revision suffix, and any serial number or date code. That record ships with the part so you can compare it against the unit you are replacing.
• Compatibility Cross-Check – We verify the part number against the OEM documentation for the system and machine you specify. A part that does not match the requested application is set aside rather than shipped.
• Electrical Verification – For probes and cables, we measure the DC resistance and check for shorts or opens. For drivers and rack modules, we power the unit on a bench fixture and verify the output against a reference signal.
• Mechanical Fit Verification – For probes and mounting hardware, we verify the thread type, tip diameter, and case dimensions against the OEM specification.
• Functional Test (where applicable) – For rack modules and drivers, we run a functional test on a bench fixture and confirm the unit reports correctly.
• ESD-Safe Packaging – Electronic components are wrapped in anti-static film. Probes and cables are coiled to the specified bend radius and secured. All parts are packed with the connectors protected and shipped in a double-wall carton with handling labels.

7. Frequently Asked Questions (FAQ)

Q1: What part type is 106M1081-01?

A: I cannot confirm the part type from the number alone. Bently Nevada uses the 106M prefix across probes, cables, drivers, accelerometers, and rack modules, and the number does not tell me which. Send us a photo of the part label and the rack or machine it came out of, and we will confirm it against the OEM documentation before you order.

Q2: Is this part compatible with all Bently Nevada systems?

A: No. Bently Nevada hardware is system-specific and often machine-specific. A probe and cable set that works on one machine may not work on another because the probe tip diameter, cable length, and driver sensitivity must all match. Confirm compatibility against your system’s documentation before ordering.

Q3: What is the warranty on this part?

A: We offer a 12-month warranty from the ship date. It covers manufacturing defects under normal operating conditions. It does not cover damage from incorrect installation, mechanical impact, or operation beyond the rated range. For electrical components, the warranty is void if the part shows evidence of overvoltage or reversed polarity. Every part ships with a test report where applicable.

Q4: Do you actually have this in stock?

A: Bently Nevada inventory moves quickly, and stock varies by part number and revision. Confirm availability before you plan an outage. If we are out, we will tell you what we actually have rather than quote a date we cannot hold.

Q5: Any installation pitfalls I should watch for?

A: Four. First, on proximity probe systems, the probe, extension cable, and driver form a matched set — changing one changes the calibration. Verify the total cable length and the driver configuration before you install. Second, route probe cables away from high-voltage wiring and secure them at the original clamp points; a cable that rubs will fail in weeks. Third, on rack modules, verify the firmware revision matches the rack before you insert the module. Fourth, after the swap, verify the reading with a known reference before you return the protection system to service. A part that powers up is not necessarily giving correct data.
