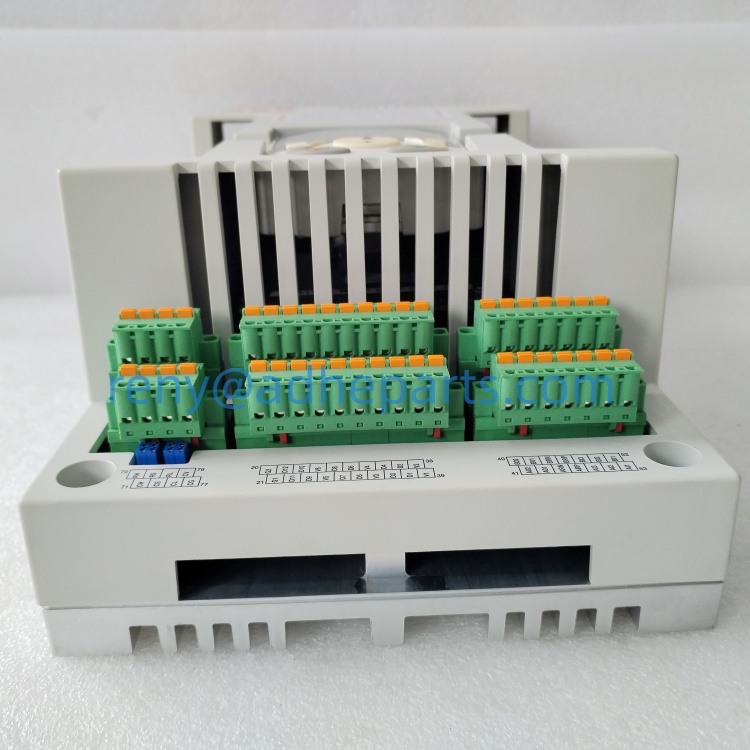

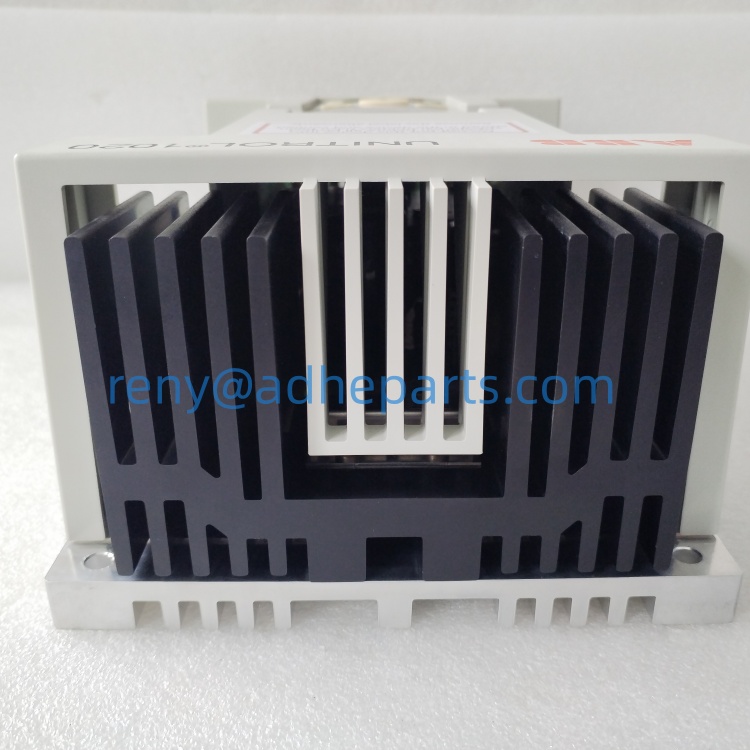

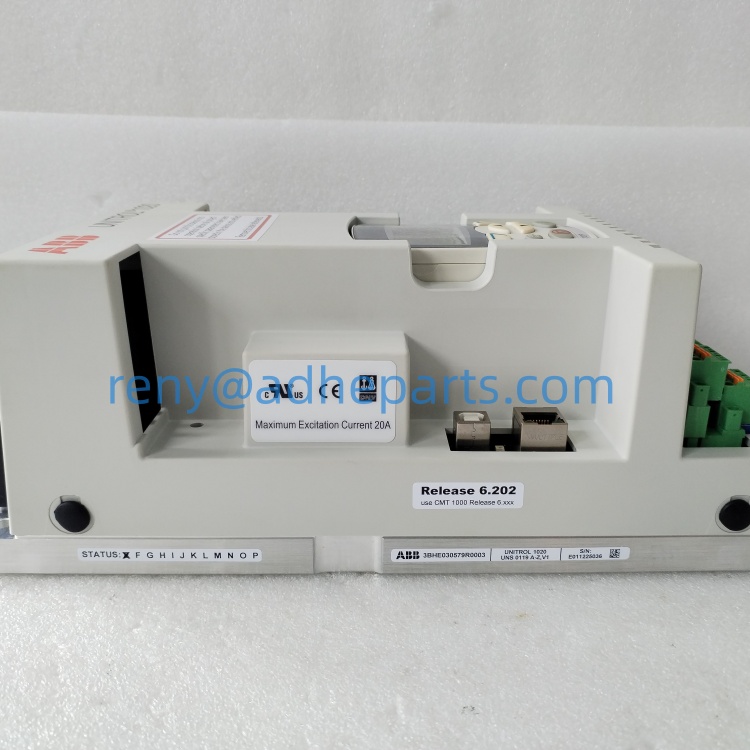

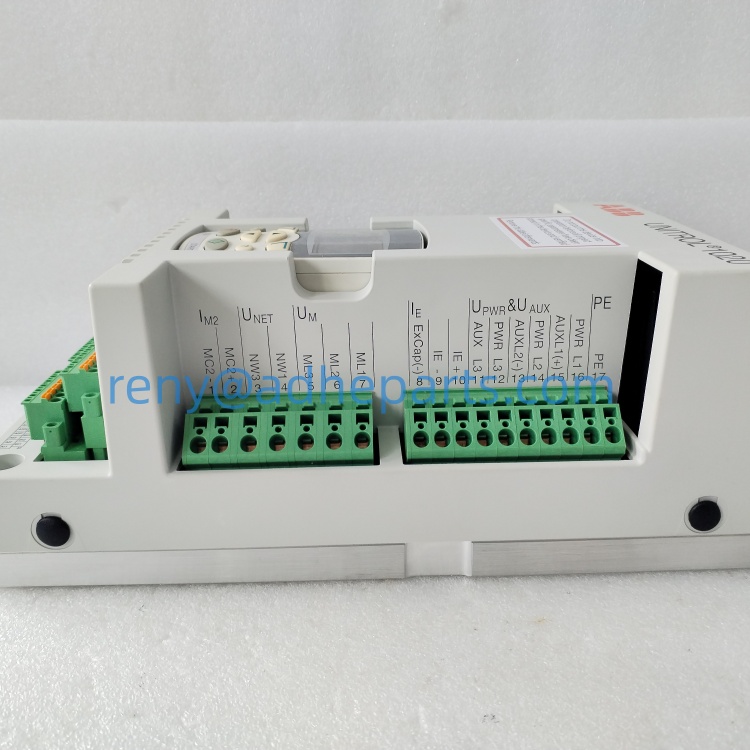

ABB UNITROL 1020

The ABB UNITROL 1020 is a digital automatic voltage regulator (AVR) designed for small and medium-sized synchronous generators, motors and industrial machines. As part of the ABB UNITROL 1000 excitation family, it combines microprocessor-based control with IGBT power electronics to provide fast and accurate excitation and voltage regulation. The UNITROL 1020 supports continuous excitation current output up to 20 A DC.

The UNITROL 1020 is widely used in power generation, industrial plants, marine power systems, diesel and gas generator sets, railway traction and emergency power applications. Its functions include automatic voltage regulation, field current regulation, reactive power and power factor control, as well as synchronization and monitoring functions.

Main Functions & Applications

Automatic Voltage Regulation – Controls generator excitation to maintain stable terminal voltage during changing load conditions.
Excitation Control – Provides precise control of excitation current for synchronous generators and motors.
Reactive Power & Power Factor Control – Supports reactive power and power factor regulation for grid-connected and industrial power systems.
Generator Synchronization – Provides automatic synchronization functions for reliable connection and operation of generators.
Monitoring & Diagnostics – Includes data logging, event logging and a local control panel for commissioning and operational monitoring.
Industrial & Power Applications – Suitable for power plants, marine propulsion and auxiliary power, diesel/gas generator systems, traction and emergency backup power applications.
